XTENDEX
USB-C5
USB-C5-CE
USB EXTENDER
Installation and User Guide

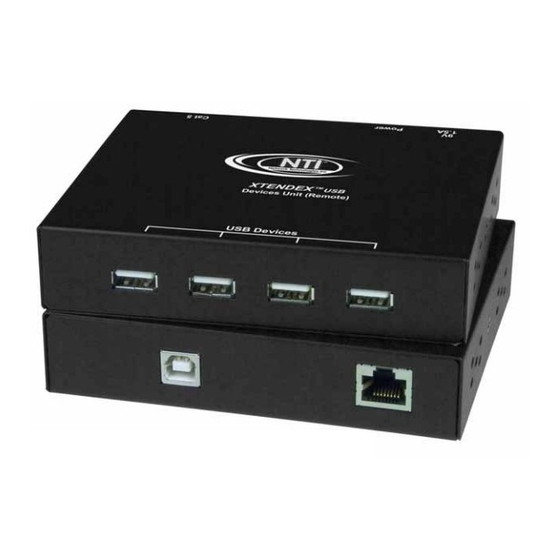

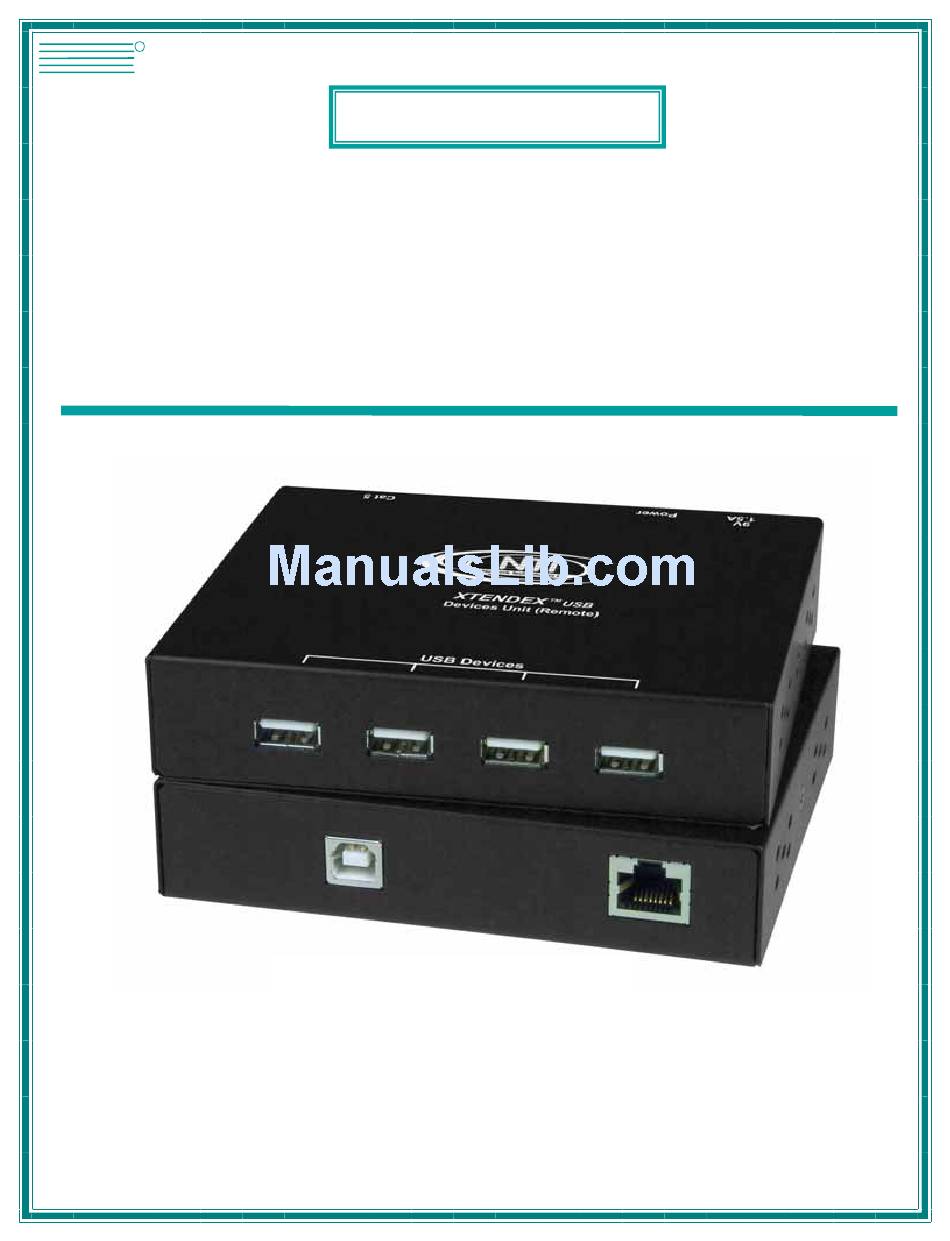

Front and rear view of USB-C5-CE Devices Unit
®
Series
MAN022
Rev Date 02/20/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTENDEX USB-C5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NTI XTENDEX USB-C5

  • Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.networktechinc.com ® XTENDEX Series USB-C5 USB-C5-CE USB EXTENDER Installation and User Guide Front and rear view of USB-C5-CE Devices Unit MAN022 Rev Date 02/20/2007...
  • Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction..................................1 Glossary..................................1 Limitations..................................1 Materials ..................................1 Preparation for Installation .............................. 2 Features and Functions..............................3 Installation ..................................4 The CPU Unit (Local)..............................4 The Devices Unit (Remote) ............................5 Plug-in and Boot Up..............................6 Technical Specifications..............................
  • Page 4: Introduction

    The NTI USB-C5 USB Extender was designed to allow the connection of up to 4 USB devices (keyboards, mice, cameras, etc.) to a USB CPU using unshielded CAT5 cable. It acts as a remote USB HUB. The USB-C5 USB Extender is self- powered and designed for high power devices.
  • Page 5: Preparation For Installation

    (i.e. AC motors, welding equipment, etc.) . NOTE: The installer must ensure that all CAT5 cable between the USB-C5 Extender CPU unit and Devices Unit is of the straight-through type and not crossed.
  • Page 6: Features And Functions

    NTI XTENDEX USB EXTENDER Front View of USB-C5 DEVICES UNIT Rear View of USB-C5 DEVICES UNIT Network Technologies Inc XTENDEX Devices Unit (Remote) Power Cat 5 9VDC 1.5A USB Devices FEATURES AND FUNCTIONS 1. Power- LED to indicate the USB Extender has power to operate 2.
  • Page 7: Installation

    When properly inserted the cable end should snap into place. (See Fig. 1.) WARNING: Never connect the USB-C5 Extender to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.
  • Page 8: The Devices Unit (Remote)

    RJ45 wall outlet.) When properly inserted the CAT5 cable end should snap into place. (See Fig. 3.) WARNING: Never connect the USB-C5 Extender to an Ethernet card, Power Ethernet router, hub or switch or other Ethernet RJ45 connector of an Cat 5 9VDC 1.5A...
  • Page 9: Plug-In And Boot Up

    NTI XTENDEX USB EXTENDER Plug-in and Boot Up 1. Connect the AC adapter power connector to the 9VDC port on the Devices Unit. Make sure the power connector is properly inserted. (See Fig. 4.) 2. Plug the AC adapter into a power outlet. The power LED on the Devices Unit (see Fig. 4) should illuminate indicating that a proper power connection has been made.
  • Page 10: Technical Specifications

    2.1 mm x 5.5 mm Female Power Requirements The NTI USB-C5 Extender is designed to operate with up to four devices whose combined current consumption cannot exceed 1.2A. In most applications, the combined current consumption of the devices attached will not exceed 1.2A. To determine how much current the application will require, find the amount of current each device uses (usually printed on a label on the device as xxA or xxmA) and add them up.
  • Page 11: Interconnection Cable Wiring Method

    (View Looking into RJ45 female) TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are encountered while installing this product, please look over the troubleshooting chart below.
  • Page 12: Warranty Information

    The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com information regarding repairs and/or returns. A return authorization number is required for all repairs/returns. MODEL : USB-C5 USB-C5-CE SERIAL NO:___________ SERIAL NO: DATE: __...
