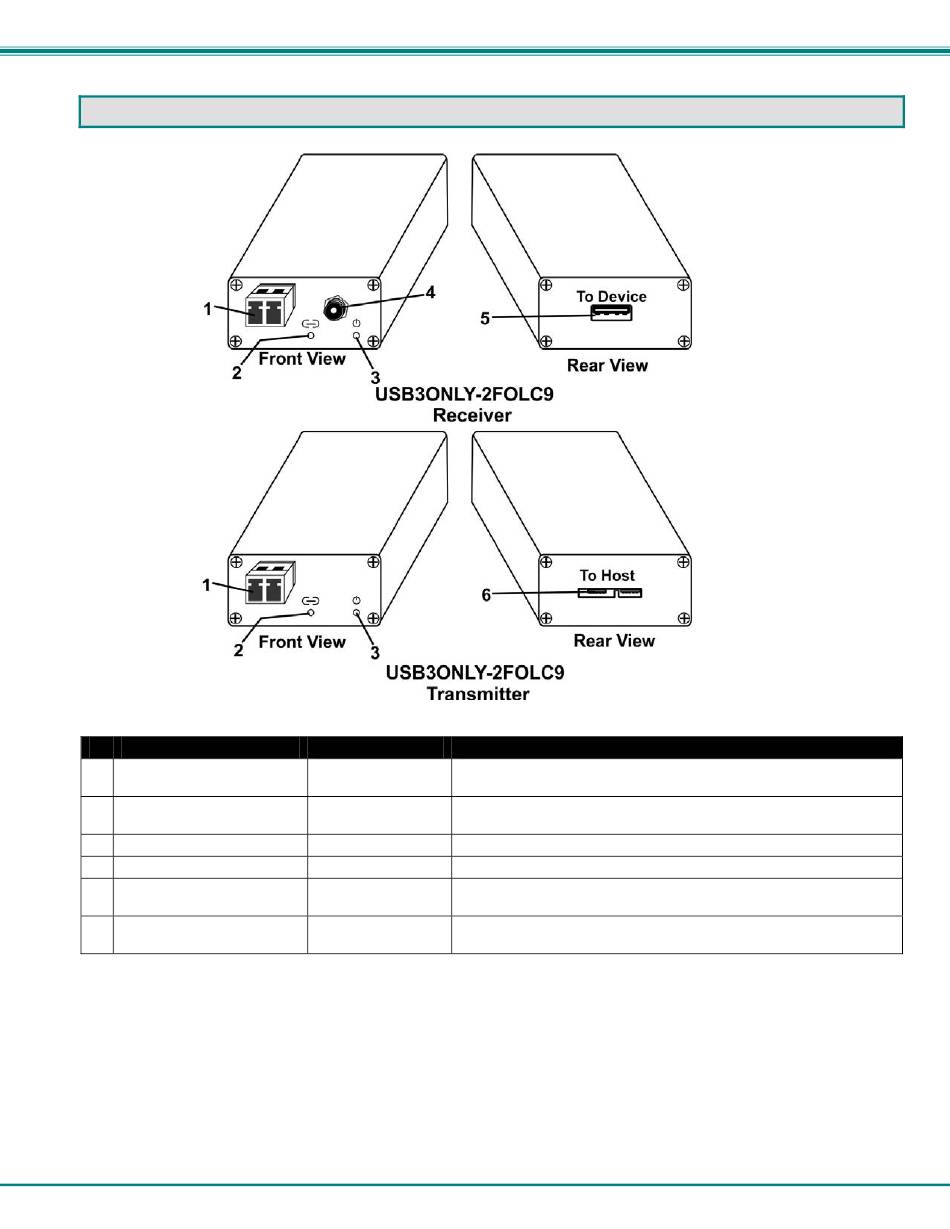

NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER

FEATURES AND FUNCTIONS

#
LABEL
1
None
2
Link symbol
3
Power symbol
4
None
5
To Device
6
To Host
CONNECTOR/LED
DESCRIPTION
Fiber Optic
For connection of Type LC Duplex Single mode fiber cable to go
Transceiver
between the Transmitter and Receiver
LED
Indicate when connection between Transmitter and Receiver has
been established.
LED
Indicate when power has been applied
Power Jack
for connection of power supply
USB 3.0 Type A
For connection of extended USB 3.0 device
connector
USB 3.0 Type Micro
For connection of USB 3.0 cable to host
B connector
2
