USB2-C5-(4)LC(-328)
USB 2.0 Extender
Installation Manual

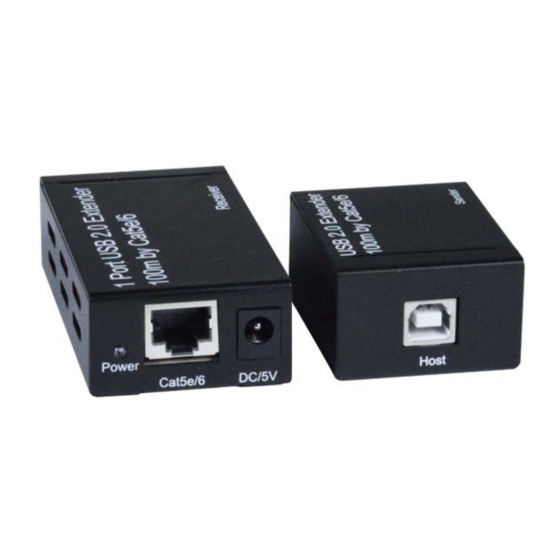

USB2-C5-LC
These instructions are provided to provide a quick installation
of the USB2-C5-LC and USB2-C5-4LC-328 USB 2.0
Extenders. The included CD contains an application for
connecting the Sender to the Receiver after the CAT5 cable
has been installed between them. Drivers for the Sender and
Receiver will install automatically once these components are
connected. Drivers are also available from our website at
http://www.networktechinc.com/usb2-over-cat5.html#tab-4 .
The drivers support 3 language interfaces: English, simplified
Chinese and traditional Chinese. The application will display
USB2-C5-4LC-328
the language compatible with the operating system of the computer
it is being installed on. It supports Windows XP 32 bit and 64 bit, Windows Vista 32 bit and 64 bit and Windows 7
32bit and 64 bit. Before installing applications, the firewall of the antivirus software running in the computer and the
firewall that comes with the operating system should be disabled.
Step 1：Install the Application
Click the install application on the CD (or the USB2_Extender.exe from our website) and the following interface
will appear:
Click "Finish"
