Summary of Contents for ADE PROSCIUTTO300

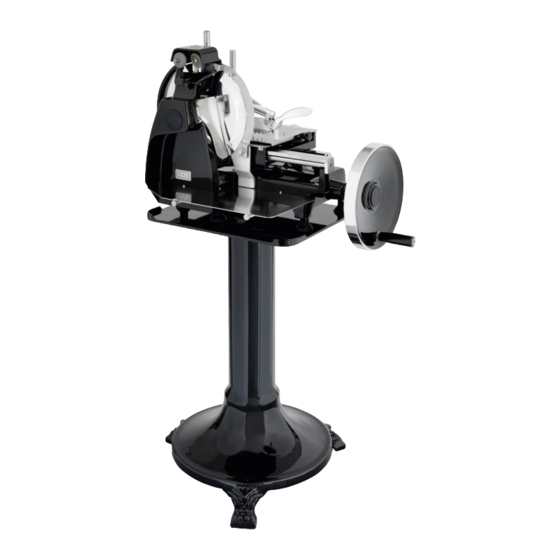

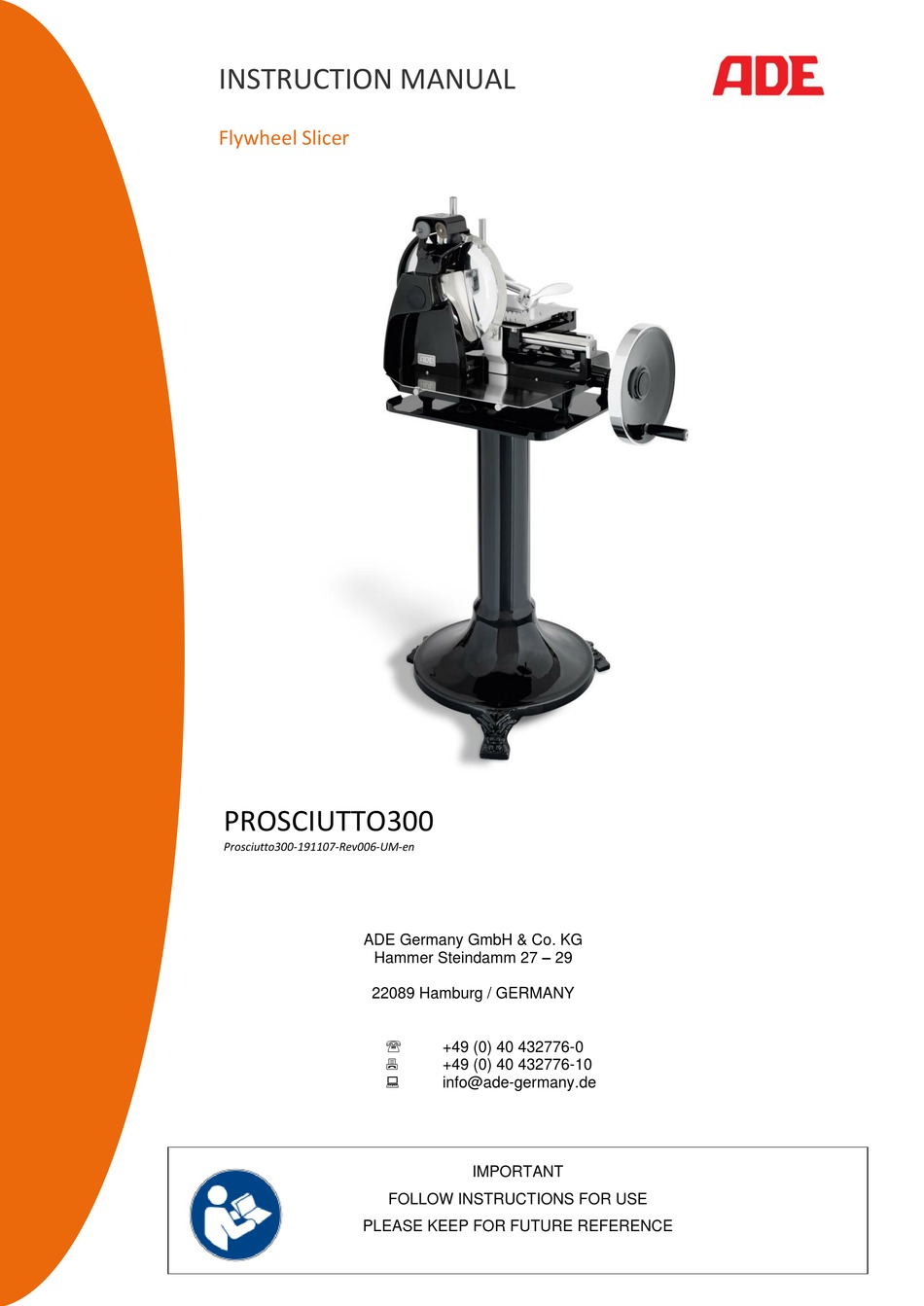

- Page 1 INSTRUCTION MANUAL Flywheel Slicer PROSCIUTTO300 Prosciutto300-191107-Rev006-UM-en ADE Germany GmbH & Co. KG Hammer Steindamm 27 – 29 22089 Hamburg / GERMANY +49 (0) 40 432776-0 +49 (0) 40 432776-10 info@ade-germany.de IMPORTANT FOLLOW INSTRUCTIONS FOR USE PLEASE KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Lubricating the guide bars and overplate ....................10 COURSE OF INSTRUCTION .......................... 10 STORAGE, TERMS OF TRANSPORT AND SCRAPPING ..................10 WARRANTY .............................. 11 TECHNICAL SPECIFICATIONS........................12 CE – LABELING AND DECLARATION OF CONFORMITY ................... 12 EXPLODED VIEW / SPARE PART LIST ......................13 Prosciutto300-191107-Rev006-UM-en... -
Page 3: Introduction
All the components of the machine are made of a light aluminium alloy, in stainless steel and plastic for food products as according to the sanitary regulations in force. The machine has a sharpener which is extremely easy and safe to use. The food plate, sharpener and blade cover can be removed for cleaning. Prosciutto300-191107-Rev006-UM-en... -
Page 4: Usage Of The Machine
The machine may only be used in original condition respectively with genuine parts. The removal of protective devices is not allowed, moreover, plates may not be removed, covered or changed. In case of damage, the machine needs to be put out of operation and ADE needs to be informed in order to replace parts. -
Page 5: Installation
Do not remove, cover or change the plates that are on the machine and, if they are damaged, replace them immediately • Do not remove the protective devices and do not change or exclude the mechanical protective devices • Only slice permitted products; do not try to slice any products that are not allowed Prosciutto300-191107-Rev006-UM-en... -
Page 6: Mechanical Cutouts
3.3 Acceptance inspection - Examine if all components of the flywheel slice rare mounted correctly. - Examine if flywheel is mounted correctly. - Examine the sliding movement. - Examine the grinder. - Examine the function of slice thickness Prosciutto300-191107-Rev006-UM-en... -
Page 7: Usage And Cleaning
4.1 Overview BESCHREIBUNG Food plate Slice deflector Food press Sliding overplate Carriage Flywheel Flywheel manouevring handle Base Blade protection Handwheel overplate advance Rapid overplate advance lever (P370) Regulating knob for slice thickness Blade cover Foot Blade, Ø 330mm Sharpener Prosciutto300-191107-Rev006-UM-en... -
Page 8: Functionality
(6) regulating the height as well. • Regulate the thickness of the slice by pulling and rotating the knob (7). • Bring the overplate with the goods towards the blade by using the rapid advance lever or the handwheel. Prosciutto300-191107-Rev006-UM-en... -
Page 9: Cutting The Goods
- Moving the machine needs to be done by two persons, taking the four legs as reference point. Steps for cleaning the machine: • Open the slice deflector. • Take out the container. • Loosen the knob and lift the sliding overplate with its food press arm. Prosciutto300-191107-Rev006-UM-en... -
Page 10: Maintenance And Repairs
• Burring of the blade. Carefully push the button to the left (Prosciutto300: press) and persevere about 3 seconds to remove the sharpening burr. Avoid longer burring procedures in order to prevent a deformation of the blade. -
Page 11: Lubricating The Guide Bars And Overplate
EC standards and engineering. STORAGE, TERMS OF TRANSPORT AND SCRAPPING 7.1 Storage and terms of transport Please preserve all parts of the packaging for a possible shipment in order to avoid potential transport damage. Prosciutto300-191107-Rev006-UM-en... -
Page 12: Warranty
The owner is responsible for disposal and storage of dismantled parts. WARRANTY ADE will repair or replace this product within a period of 1 year from date of delivery applying to defects occurred due to poor material or workmanship (invoice is necessary). -
Page 13: Technical Specifications
− Machinery Directive 2006/42/EC in the valid version. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, November 2019 ADE Germany GmbH & Co. KG Hammer Steindamm 27 – 29 D-22089 Hamburg Prosciutto300-191107-Rev006-UM-en... -
Page 14: Exploded View / Spare Part List
EXPLODED VIEW PROSCIUTTO 300 – Detail Base PROSCIUTTO 300 – Detail Transmission Prosciutto300-191107-Rev006-UM-en... - Page 15 PROSCIUTTO 300 – Detail Guards PROSCIUTTO 300 – Detail Sliding Plate Prosciutto300-191107-Rev006-UM-en...
- Page 16 PROSCIUTTO 300 – Detail Carriage PROSCIUTTO 300 – Detail Feeding carriage Prosciutto300-191107-Rev006-UM-en...
- Page 17 PROSCIUTTO 300 – Detail Sharpener Prosciutto300-191107-Rev006-UM-en...
- Page 18 Prosciutto300-191107-Rev006-UM-en...
- Page 19 Prosciutto300-191107-Rev006-UM-en...
- Page 20 Distributor: Prosciutto300-191107-Rev006-UM-en...
