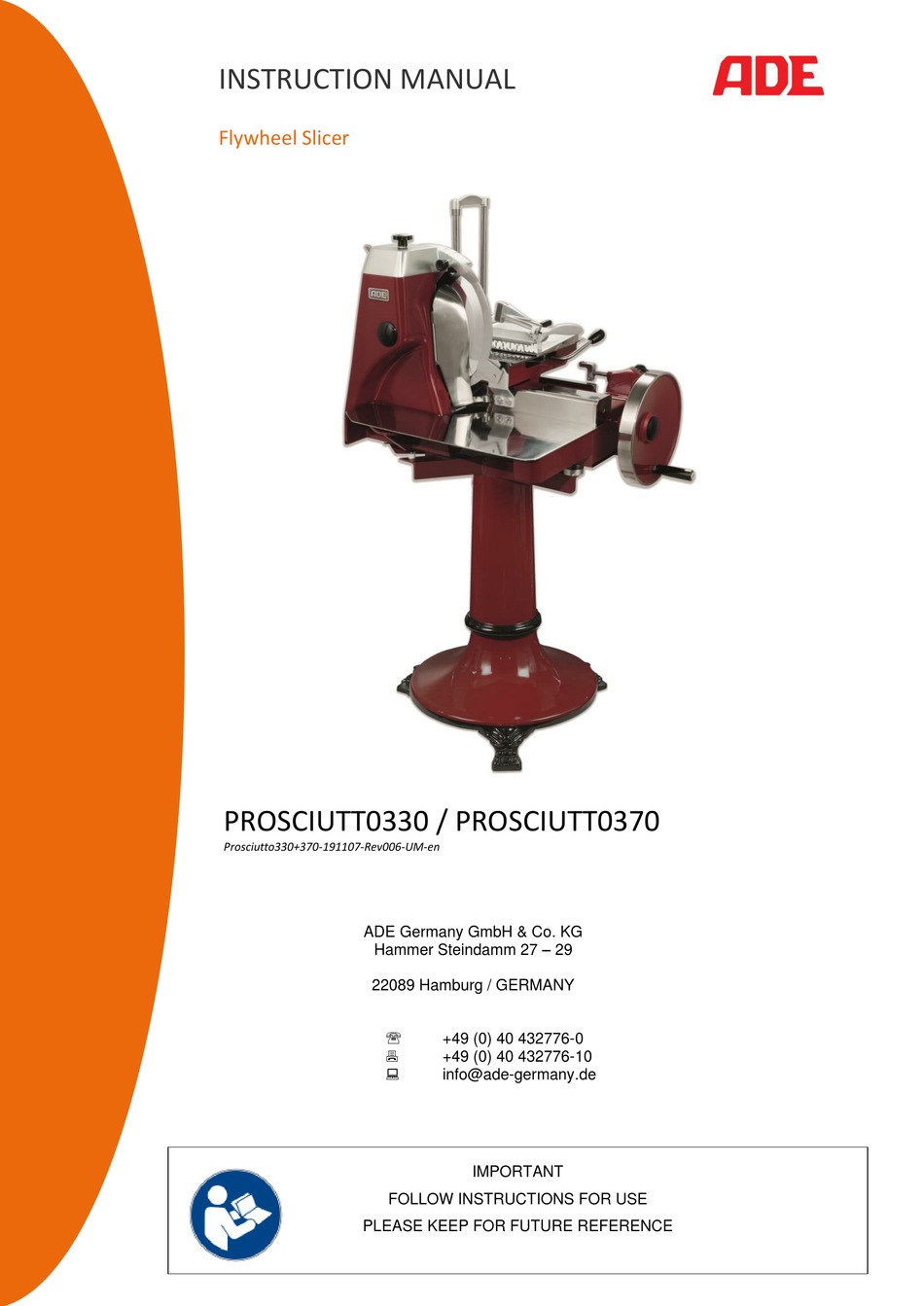

INSTRUCTION MANUAL

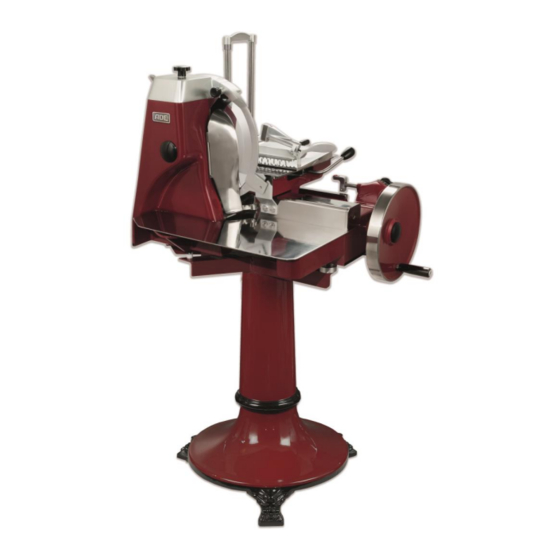

Flywheel Slicer
PROSCIUTT0330 / PROSCIUTT0370
Prosciutto330+370-191107-Rev006-UM-en
ADE Germany GmbH & Co. KG
Hammer Steindamm 27 – 29
22089 Hamburg / GERMANY
FOLLOW INSTRUCTIONS FOR USE
PLEASE KEEP FOR FUTURE REFERENCE
+49 (0) 40 432776-0
+49 (0) 40 432776-10
info@ade-germany.de
IMPORTANT
Advertisement
Table of Contents
Related Manuals for ADE PROSCIUTT0330
Summary of Contents for ADE PROSCIUTT0330
- Page 1 INSTRUCTION MANUAL Flywheel Slicer PROSCIUTT0330 / PROSCIUTT0370 Prosciutto330+370-191107-Rev006-UM-en ADE Germany GmbH & Co. KG Hammer Steindamm 27 – 29 22089 Hamburg / GERMANY +49 (0) 40 432776-0 +49 (0) 40 432776-10 info@ade-germany.de IMPORTANT FOLLOW INSTRUCTIONS FOR USE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................2 Purpose of the manual ..........................2 General description of the machine ......................2 Usage of the machine ..........................3 COMMISSIONING ............................3 Unpacking ..............................3 Assembly of flywheel........................... 4 Installation ..............................5 SAFETY INSTRUCTIONS ..........................5 General safety regulations ........................... -
Page 3: Introduction
INTRODUCTION 1.1 Purpose of the manual This publication contains all the information necessary for the installation, use and maintenance of the manual flywheel slicing machines to be used for food, with circular blade. The purpose of this manual is to allow the user, above all the direct user, to take every precaution and arrange all human and material means necessary for a safe and lengthy use of these machines. -
Page 4: Usage Of The Machine
The machine may only be used in original condition respectively with genuine parts. The removal of protective devices is not allowed, moreover, plates may not be removed, covered or changed. In case of damage, the machine needs to be put out of operation and ADE needs to be informed in order to replace parts. -
Page 5: Assembly Of Flywheel
Delivery including Base (optional): • Move the base to its designated place, the rounded side of the machine has to be on the operator’s counterside • Position the machine on its base; one respectively two feet have a hole in which socket screws have to be inserted. -
Page 6: Installation
2.3 Installation If the base (optional) is not used, install the manual flywheel slicer on an even, smooth and vibration-free surface. Enough stability should be offered in order to ensure safety due to the deadweight of the machine plus the food to be sliced. The operating elements (manoeuvring flywheel and regulating knob for slice thickness) are pointed towards the user. -
Page 7: Mechanical Cutouts
3.2 Mechanical cutouts - The cutter blade is secured by a rigidly embattled cover except for the cutting area. - Before using Prosciutto300 you have to shift the cover of knife protection. - All cutouts are firmly mounted on the machine and may not be removed. Scrapping or unauthorized modifications may lead to dangerous situations. -
Page 8: Usage And Cleaning
USAGE AND CLEANING 4.1 Overview Description Food plate Slice deflector Food press Sliding overplate Carriage Flywheel manouevring handle Flywheel Base Blade protection Vertical sliding food press Rapid overplate advance lever (P370) Crank for overplate advance Regulating knob for slice thickness Blade cover Foot Blade, Ø... -
Page 9: Functionality
4.2 Functionality Manoeuvring flywheel: The flywheel (1) turned clockwise allows the carriage to be moved with the food plate with simultaneous blade rotation Regulating knob for slice thickness: The thickness of the slice is regulated by turning the graduated scale knob (2) clockwise. Overplate advance handwheel: The crank (3) allows the overplate with the product to be brought quickly near to the blade after loading it or taken away from the blade after cutting... -
Page 10: Cutting The Goods
4.4 Cutting the goods • Turn the flywheel clockwise. Do not turn the flywheel counter clockwise since it could seriously damage the machine. • During the forward movement of the carriage (towards the operator) the goods will go into the blade and the slice, which is guided by the slice deflector, will fall onto the plate below. -
Page 11: Maintenance And Repairs
• Clean all the disassembled parts and the machine body by using hot water (min. +30°C) and a biodegradable foaming detergent with a PH 7-8 degree if acidity. Use a soft, spongy cloth for the sharper parts. The machine may not be cleaned with by running jets of water or steam or similar methods. Neither the machine, nor the single parts may be cleaned in the dishwasher. -
Page 12: Lubricating The Guide Bars And Overplate
Sharpening the blade may only be performed by authorized personnel Never clean the blade while machine is running. The blade cannot be sharpened if attrition of blade diameter is higher than 6mm. 5.2 Lubricating the guide bars and overplate After each cleaning operation of the machine put a few drops of oil in the hole (1) of the plate (2). -
Page 13: Warranty
The owner is responsible for disposal and storage of dismantled parts. WARRANTY ADE will repair or replace this product within a period of 1 year from date of delivery applying to defects occurred due to poor material or workmanship (invoice is necessary). -
Page 14: Technical Specifications
− Machinery Directive 2006/42/EC in the valid version. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, November 2019 ADE Germany GmbH & Co. KG Hammer Steindamm 27 – 29 D-22089 Hamburg Prosciutto330+370-191107-Rev006-UM-en... -
Page 15: Exploded View
EXPLODED VIEW PROSCIUTTO 330 – Detail Base PROSCIUTTO 330 – Detail Transmission Prosciutto330+370-191107-Rev006-UM-en... - Page 16 PROSCIUTTO 330 – Detail Guards PROSCIUTTO 330 – Detail Sliding Plate Prosciutto330+370-191107-Rev006-UM-en...
- Page 17 PROSCIUTTO 330 – Detail Carriage PROSCIUTTO 330 – Detail Thickness Regulation Prosciutto330+370-191107-Rev006-UM-en...
- Page 18 PROSCIUTTO 330 – Detail Sharpener Prosciutto330+370-191107-Rev006-UM-en...
- Page 19 PROSCIUTTO 370 – Detail Base PROSCIUTTO 370 – Detail Transmission Prosciutto330+370-191107-Rev006-UM-en...
- Page 20 PROSCIUTTO 370 – Detail Guards PROSCIUTTO 370 – Detail Sliding Plate Prosciutto330+370-191107-Rev006-UM-en...
- Page 21 PROSCIUTTO 370 – Detail Carriage PROSCIUTTO 370 – Detail Thickness Regulation Prosciutto330+370-191107-Rev006-UM-en...
- Page 22 PROSCIUTTO 370 – Detail Sharpener Prosciutto330+370-191107-Rev006-UM-en...
- Page 23 Prosciutto330+370-191107-Rev006-UM-en...
- Page 24 Distributor: Prosciutto330+370-191107-Rev006-UM-en...
