Operating Instruction; Charging - Fenix HM65R Operating Instruction


Quality aluminum, magnesium and PC material, lightweight and durable

Toughened ultra-clear glass lens with an anti-reflective coating

3.17 '' Length x 2.17'' Width x 1.57'' Height (80.5 x 55x 40 mm)

3.42 oz / 97 grams (excluding battery)

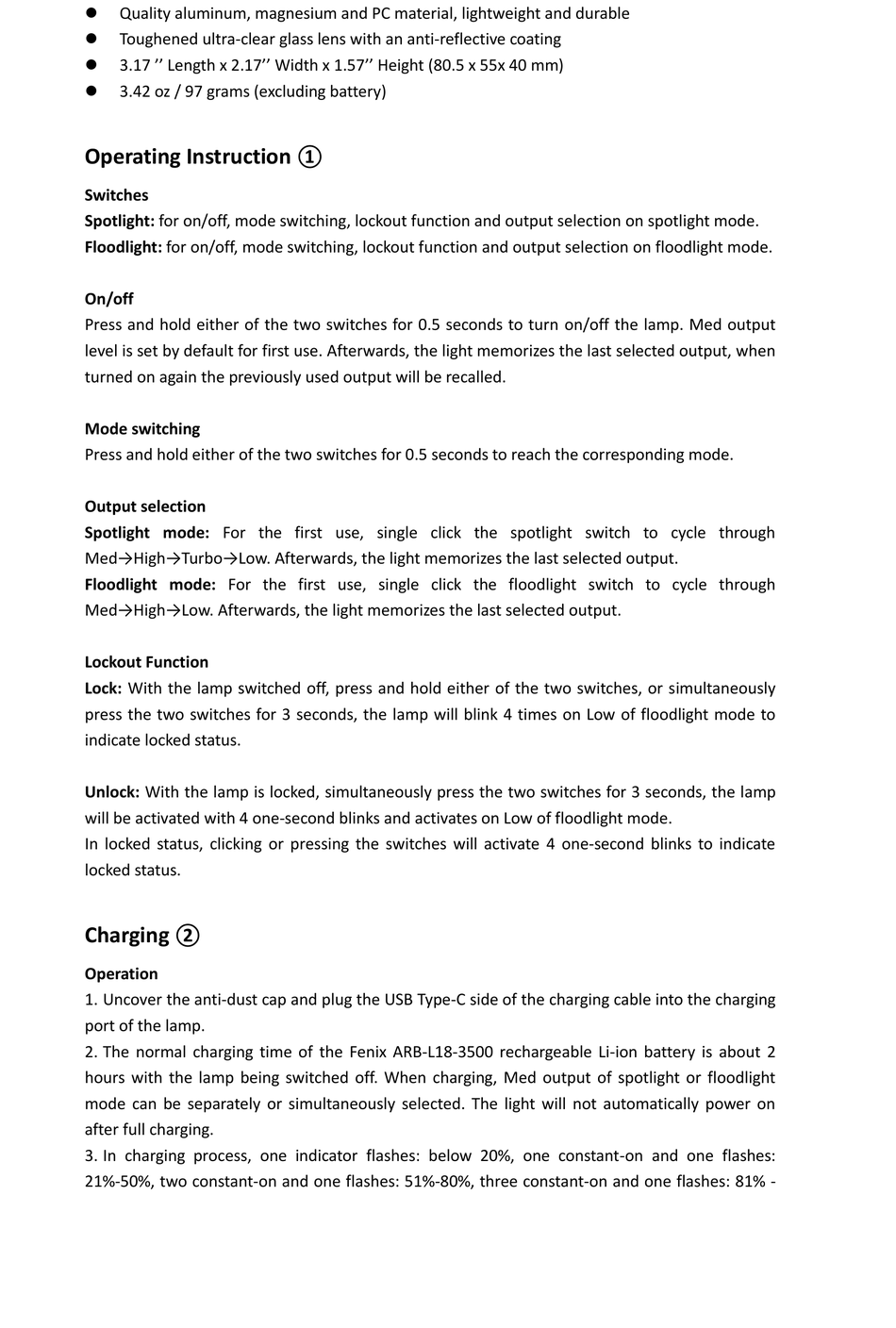

Operating Instruction

Switches
Spotlight: for on/off, mode switching, lockout function and output selection on spotlight mode.
Floodlight: for on/off, mode switching, lockout function and output selection on floodlight mode.
On/off
Press and hold either of the two switches for 0.5 seconds to turn on/off the lamp. Med output
level is set by default for first use. Afterwards, the light memorizes the last selected output, when
turned on again the previously used output will be recalled.
Mode switching
Press and hold either of the two switches for 0.5 seconds to reach the corresponding mode.
Output selection
Spotlight mode: For the first use, single click the spotlight switch to cycle through
Med→High→Turbo→Low. Afterwards, the light memorizes the last selected output.
Floodlight mode: For the first use, single click the floodlight switch to cycle through
Med→High→Low. Afterwards, the light memorizes the last selected output.
Lockout Function
Lock: With the lamp switched off, press and hold either of the two switches, or simultaneously
press the two switches for 3 seconds, the lamp will blink 4 times on Low of floodlight mode to
indicate locked status.
Unlock: With the lamp is locked, simultaneously press the two switches for 3 seconds, the lamp
will be activated with 4 one-second blinks and activates on Low of floodlight mode.
In locked status, clicking or pressing the switches will activate 4 one-second blinks to indicate
locked status.

Charging

②
Operation
1. Uncover the anti-dust cap and plug the USB Type-C side of the charging cable into the charging
port of the lamp.
2. The normal charging time of the Fenix ARB-L18-3500 rechargeable Li-ion battery is about 2
hours with the lamp being switched off. When charging, Med output of spotlight or floodlight
mode can be separately or simultaneously selected. The light will not automatically power on
after full charging.
3. In charging process, one indicator flashes: below 20%, one constant-on and one flashes:
21%-50%, two constant-on and one flashes: 51%-80%, three constant-on and one flashes: 81% -
①
