MANUAL FOR SAFE OPERATION AND MAINTENANCE
WARNING
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2004 - 2017
MANUAL:

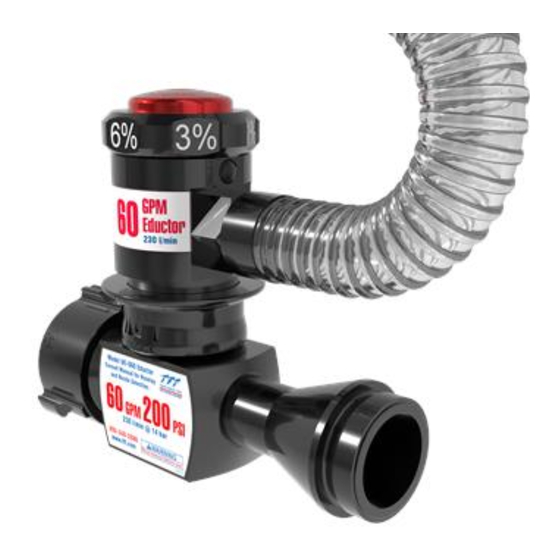

EDUCTOR 125 SERIES IN-LINE
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. Users who have not read and
understood all operating and safety instructions are not qualifi ed to operate this eductor. This
instruction manual is intended to familiarize fi refi ghters and maintenance personnel with the
operation, servicing, and safety procedures associated with the eductor. This manual should be
kept available to all operating and maintenance personnel.
Inlet Pressure:
200 psi (13.8 bar)
160 psi (11 bar)
145 psi (10 bar)
Concentration Settings
Off , 1/4%, 1/2%, 1%, 3%, 6%
Models: 60 gpm (225 l/min)
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
Maximum
Back Pressure:
130 psi (9 bar)
100 psi (6.9 bar)
95 psi (6.5 bar)
95 gpm (360 l/min)
120 gpm (450 l/min)
125 gpm (475 l/min)
LIU-330 November 16, 2017 Rev08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Task Force Tips EDUCTOR 125 Series
Summary of Contents for Task Force Tips EDUCTOR 125 Series
- Page 1 120 gpm (450 l/min) 125 gpm (475 l/min) TASK FORCE TIPS, INC. 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • www.tft.com ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 2 6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association FEMSA P.O. Box 147, Lynnfi eld, MA 01940 • www.FEMSA.org ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
-
Page 3: Table Of Contents
4.4 FOAM CONSUMPTION 5.0 MAXIMUM HOSE LAY 6.0 NOZZLE SELECTION 7.0 TROUBLE-SHOOTING 8.0 WARRANTY 9.0 DRAWING AND PARTS LIST 10.0 FOAM BUCKET ARRANGEMENT 10.1 FOAM SUPPLY LOGISTICS 11.0 MAINTENANCE ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 4: Meaning Of Signal Words
The eductor is designed for Class A and Class B foam concentrates. If you intend to use the eductor for liquids other than Class A and Class B concentrates and water, we urge you to contact the Task Force Tips Engineering Department. The use of other liquids may void the warranty and subject the user to hazards not addressed in this manual. -
Page 5: General Information
36" LONG 1" ID CLEAR HOSE TO UNLOCK. (Not to Scale) RELEASE THE LOCKER RING TO ENGAGE. CHECK DISK 20" LONG 1" OD WAND (Not to Scale) EDUCTOR BODY EXIT Fig 3.1 ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 6: General Operating Instructions
Class A foam concentrates are generally less viscous than Class B foam concentrates. Using CAUTION 1% Class B foam percentage setting to educt Class A foam, may cause the actual Class A foam percentage to be more than 1%. ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 7: Class A Foam
Use foam manufacturer’s to ignited rates if needed. recommendations for handheld nozzles. Apply with Apply with MEDIUM EXPANSION NOZZLE MEDIUM EXPANSION NOZZLE for vapor suppression for vapor suppression ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 8: Foam Compatibility
UE-060-NF calibration hose length is 300 ft. 1.15% 1 - 1.3% UE-095-NF calibration hose length is 250 ft. 3.45% 3 - 3.9% UE-125-NF calibration hose length is 150 ft. 6.5% 6 - 7.8% ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 9: Maximum Hose Lay
Similar charts can be created for eductors of other ratings and/or hoses of diff erent standard lengths and/or sizes. Friction loss will also vary with the hose design and manufacturer, so it is important to know the characteristics of your hose. ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... -
Page 10: Nozzle Selection
The following tables list the compatibility between eductors and nozzles. NOTE: A 75 psi (5 bar) nozzle will result in lower nozzle pressure and shorter stream reach. ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... - Page 11 Variable Flow 230 - 570 l/min 7 or 5 bar Thunderfog FT200*, FTS200* 30-60-95-125-150-200 gpm 100 or 75 psi NONE FJ-MX-FT 110-230-360-470-570-750 l/min 7 or 5 bar ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 12 95 - 300 gpm 100 psi 360 - 1150 l/min 7 bar FJ-H FJ-HMX HDL-** 95 - 250 gpm 75 psi 360 - 950 l/min 5 bar ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 13 HD-** 95 - 300 gpm 100 psi 360 - 1150 l/min 7 bar FJ-H FJ-HMX HDL-** 95 - 250 gpm 75 psi 360- 950 l/min 5 bar ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 14 75 psi FJ-LX-G FJ-MX-G G-Force with Variable Flow 230 - 570 l/min 5 bar Thunderfog FT200*, FTS200*, FTS*, 30-60-95-125-150-200 gpm 75 psi NONE FJ-MX-FT 110-230-360-470-570-750 l/min 5 bar ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 15 Handline FJ-H FJ-HMX 95-225 gpm 55 psi HK-** 360-850 l/min 4 bar 95 - 250 gpm 75 psi Dual-Force HDL-** FJ-H FJ-HMX 360- 950 l/min 5 bar ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
-
Page 16: Trouble-Shooting
8.0 WARRANTY Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its nozzles and other equipment (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the fi... -
Page 17: Drawing And Parts List
9.0 DRAWINGS & PARTS LIST ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08... - Page 18 SUCTION HOSE 1"ID 1.25"OD CLEAR UE320 SUCTION WAND UE330 SPRING - LOCKER RING UE215 O-RING-219 VO-219 LOCATION RING UE245 1/4" BALL - 302 STAINLESS STEEL V2125 LOCKER UE210 CHECK DISK UE225 ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
- Page 19 Do not intermix metering heads with eductor bodies of diff erent fl ow rates. Intermixing can CAUTION cause weaker or stronger foam than expected resulting in risk of injury as the ability to control the fi re is compromised. ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
-
Page 20: Foam Bucket Arrangement
TASK FORCE TIPS, INC. 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • www.tft.com ©Copyright Task Force Tips, Inc. 2004 - 2017 LIU-330 November 16, 2017 Rev08...
