Puls DIMENSION С Series Manual

C-Series
G D
ENERAL ESCRIPTION
The CPS20.241-60 DC/DC
specifically for railway & transportation applications. It
is approved according to the EN 50155 standard, which
is an international standard
equipment used on
applications. The standard covers aspects such as
temperature, humidity, shock, vibration, EMI and other
parameters. Because of these requirements, the unit is
equipped with conformal coated pc-boards.
The unit features a DC-OK signal contact for remote
monitoring, a decoupling
redundant power supply systems and quick-connect
spring-clamp terminals for a reliable connection even
when mechanical vibration and shock are involved. The
unit also covers an extreme wide temperature range
from -40°C up to +70°C with full output current.

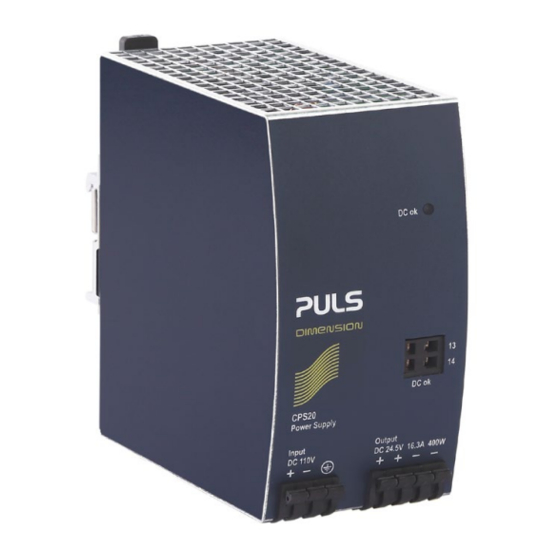

This DC/DC converter comes in a very compact housing
and requires only 65mm space on the DIN-rail due to
the high efficiency and low power losses. The high
efficiency is achieved
technology and other unique design techniques.
O N
RDER UMBERS
DC/DC converter CPS20.241-60
Accessory ZM2.WALL
ZM13.SIDE
Sep. 2019 / Rev. 1.1 DS-CPS20.241-60-EN
All parameters are specified at 24.5V, 16.3A, 110Vdc, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
converter is designed
covering electronic
rolling stock for railway
MOSFET for building
by utilizing cutting edge
Wall mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 400W, DC/DC C
DC/DC C
ONVERTER
 EN 50155 Railway Compliant
 Conformal Coated PC-boards
 Built-in Redundancy (Decoupling Mosfet at the Output)
 Quick-connect Spring-clamp Terminals
 77-154Vdc Wide-range Input
 Width only 65mm
 Efficiency up to 93.7%
 Excellent Partial Load Efficiency
 Safe Hiccup PLUS Overload Mode
 Minimal Inrush Current Surge
 Full Power Between -40°C and +70°C
 DC-OK Relay Contact
 Reverse Input Polarity Protected
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24.5V
Adjustment range -
Output current 16.3A
Output power 400W
Output ripple max. 100mVpp 20Hz to 20MHz
AC Input voltage -
DC Input voltage DC 110V
DC Input current 3.87A
Inrush current typ. 6A peak
Efficiency 93.7%
Losses 26.9W
Temperature range -40°C to +70°C
Derating -
Hold-up time typ. 35ms
Dimensions 65x124x127mm WxHxD
Weight 980g / 2.16lb
M
ARKINGS
Germany
CPS20.241-60
ONVERTER
ATA
not adjustable
-
- 30%/ +40%
at 110Vdc
at 110Vdc
at 110Vdc
at 110Vdc
operational
not required
at 110Vdc
EMC, LVD
1/22
