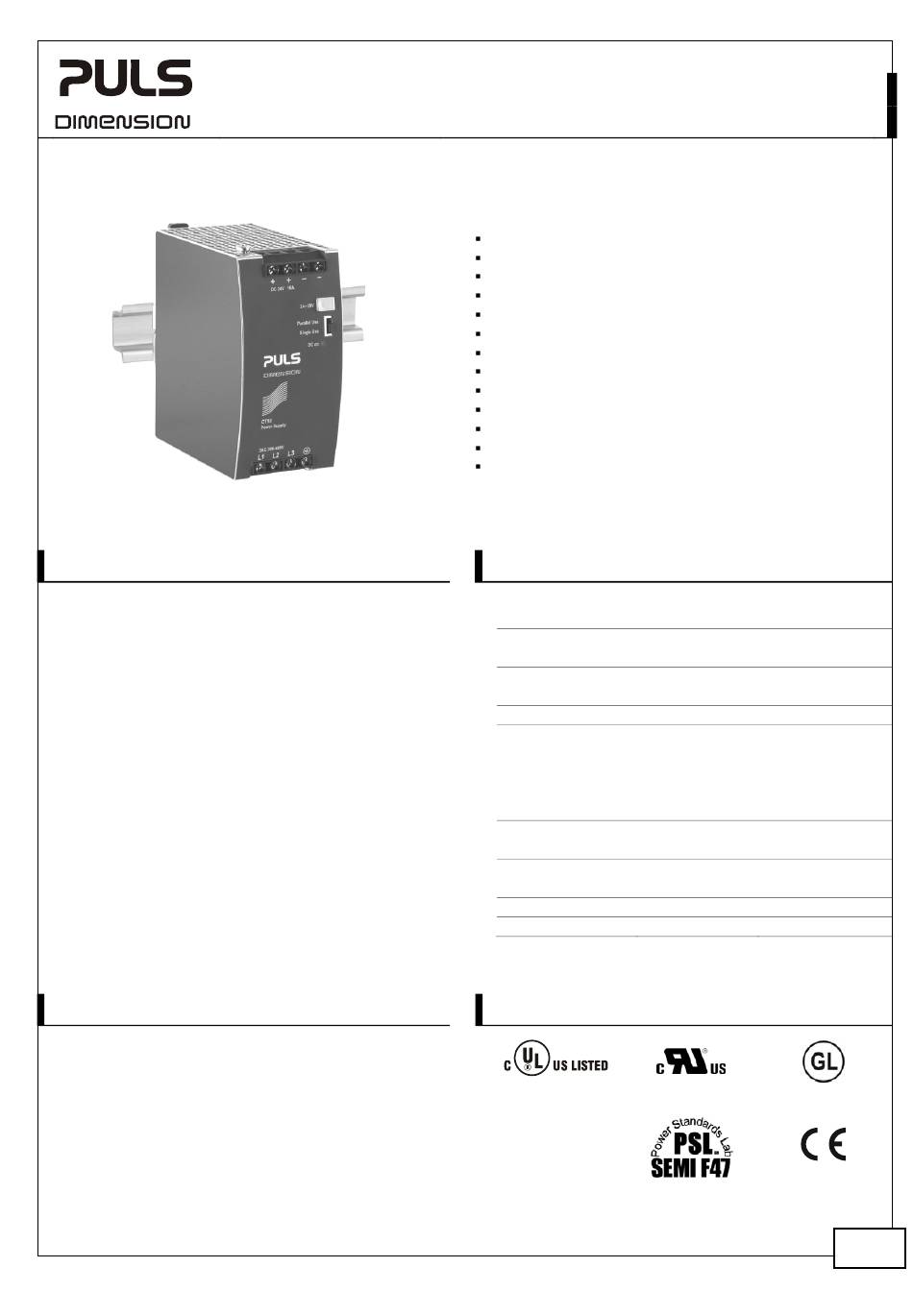

Puls DIMENSION C Series Quick Start Manual

C-Series
G D
ENERAL ESCRIPTION

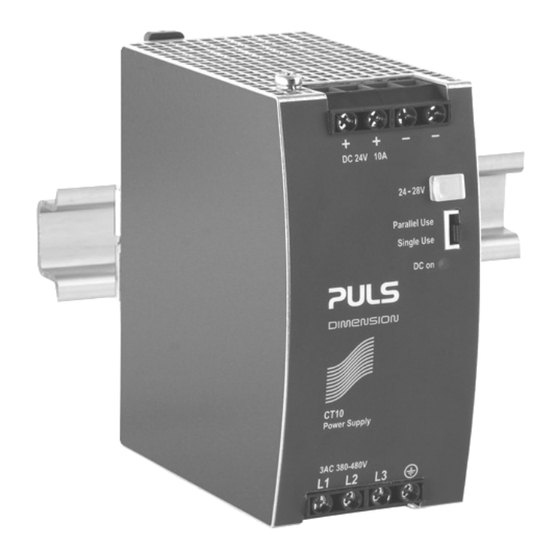

The Dimension C-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The C-Series is part of the DIMENSION
power supply family. The most outstanding features of
CT10.241 are the high efficiency, electronic inrush
current limitation, active input transient filter and wide
operational temperature range. The small size is
achieved by a synchronous rectification and further
technological design details.
The CT10.241-C1 is equipped with conformal coated pc-
boards preferred for applications in harsh areas.
The C-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CT10.241 can deliver 3
times the nominal output current for 10ms which helps
to trip fuses on faulty output branches.
O N
RDER UMBERS
Power Supply CT10.241
CT10.241-C1
Accessory ZM1.WALL
ZM13.SIDE
Nov. 2017 / Rev. 1.4 DS-CT10.241-EN
All parameters are specified at 24V, 10A, 3x400Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
With conformal coated
pc-boards
Wall mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
CT10.241, CT10.241-C1
24V, 10A, 240W, T
P S
OWER UPPLY
3AC 380-480V Wide-range Input
2 or 3-Phase Operation Possible
Width only 62mm
Efficiency up to 92.9% Due to Synchronous Rectifier
Excellent Partial Load Efficiency
20% Output Power Reserves
Easy fuse tripping Due to High Overload Current
Input -Transient Blanking Circuit Included
Minimal Inrush Current Surge
Three Input Fuses Included
Current Sharing Feature for Parallel Use
Full Power Between -25°C and +60°C
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24-28V
Output current 10 – 8.6A
12 – 10.3A
Output power 240W
288W
Output ripple < 50mVpp
Input voltage AC 380-480V
Mains frequency 50-60Hz
AC Input current 0.7 / 0.6A
Power factor 0.53 / 0.52
AC Inrush current typ. 4A peak
Efficiency 92.8 / 92.9%
Losses 18.6 / 18.3W
Temperature range -25°C to +70°C
Derating 6W/°C
Hold-up time typ. 34 / 54ms
Dimensions 62x124x117mm WxHxD
M
ARKINGS
IND. CONT. EQ.
UL 508
Germany
P I
HREE HASE NPUT
ATA
ambient <60°C
ambient <45°C
ambient <60°C
ambient <45°C
20Hz to 20MHz
-15%/+20%
±6%
at 3x400 / 480Vac
at 3x400 / 480Vac
at 3x400 / 480Vac
at 3x400 / 480Vac
operational
+60 to +70°C
at 3x400 / 480Vac
UL 60950-1
Marine
