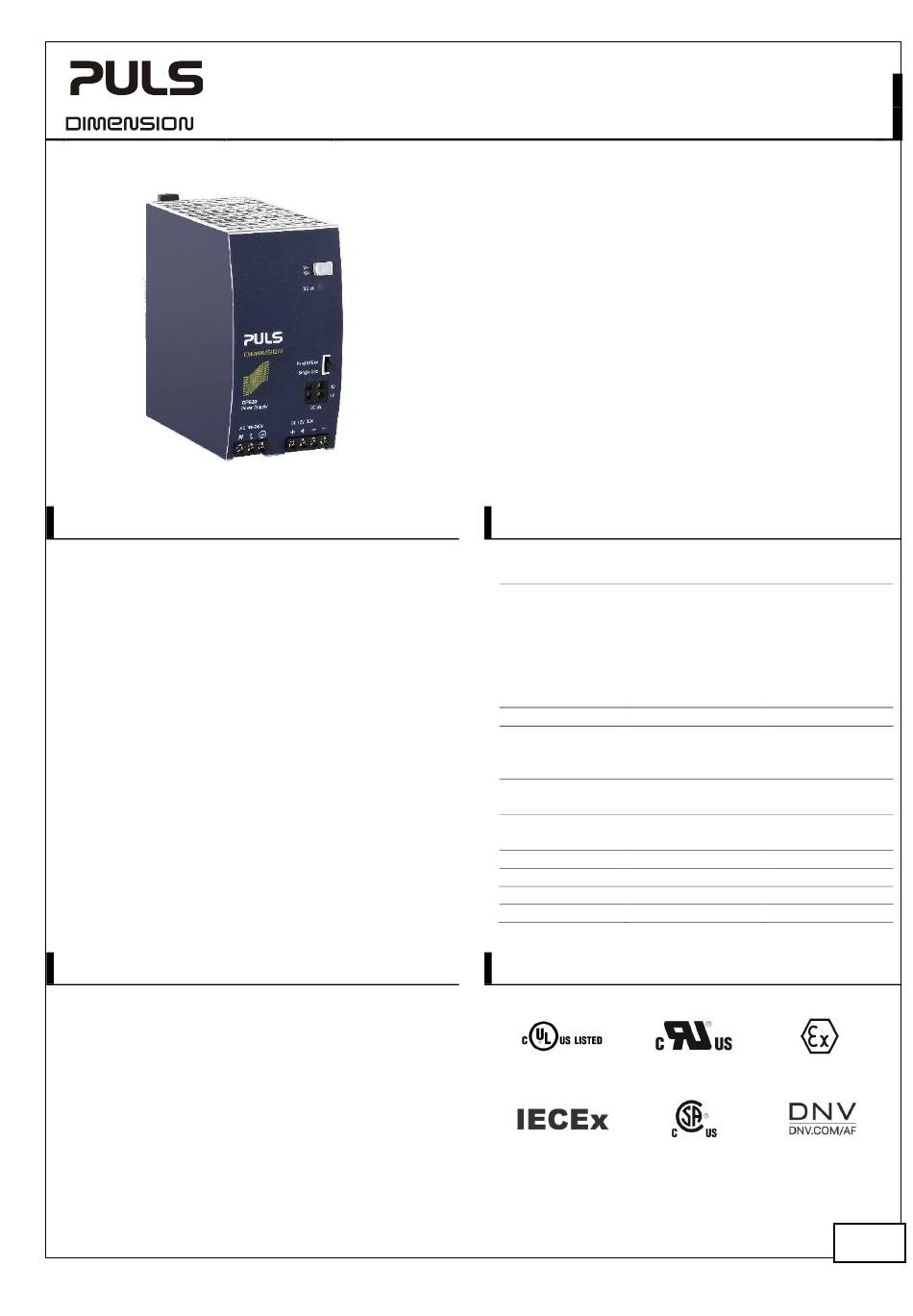

C-Series

RODUCT

ESCRIPTION

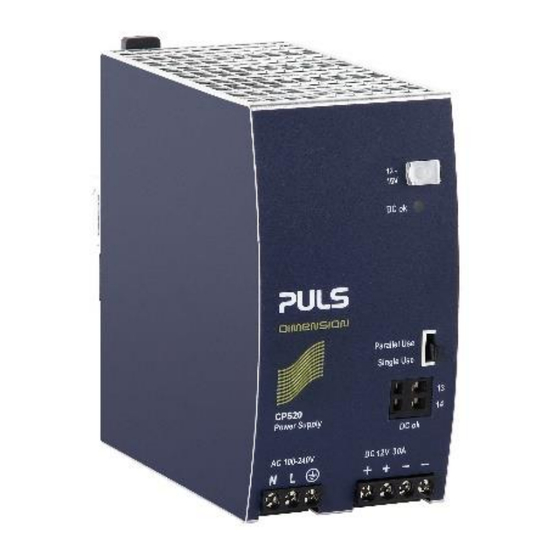

The Dimension C-Series are cost optimized power supplies

without compromising quality, reliability and performance. The

C-Series is part of the DIMENSION power supply family. The most

outstanding features of CPS20.121 are the high efficiency,

electronic inrush current limitation, active PFC, wide operational

temperature range. The small size is achieved by a synchronous

rectification and further technological design details.

The C-Series includes all the essential basic functions.

Additionally, the CPS20.121 can deliver about 4 times the nominal

output current for 15ms which helps to trip fuses on faulty output

branches.

High immunity to transients and power surges as well as low

electromagnetic emission, a DC-OK relay contact and a large

international approval package for a variety of applications makes

this unit suitable for nearly every situation.

RDER

UMBERS

Power Supply

CPS20.121

Accessory

ZM2.WALL

ZM13.SIDE

YR80.242

YR40.245

Oct. 2024 / Rev. 1.5 DS-CPS20.121-EN

All parameters are specified at 12V, 30A, 230Vac, +25°C ambient and after a 5 minutes run-in time unless otherwise noted.

12-15V Standard unit

Wall mount bracket

Side mount bracket

Redundancy module

www.pulspower.com Phone +49 89 9278 0 Germany

12V, 30A, 360W, S

OWER

UPPLY

▪ AC 100-240V wide-range Input

▪ Width only 65mm

▪ Efficiency up to 92.6%

▪ ATEX and IECEx approved

▪ Excellent partial load efficiency

▪ Safe Hiccup

PLUS

overload mode

▪ Easy fuse breaking due to high overload current

(typ. 120A for 15ms)

▪ Active Power Factor Correction (PFC)

▪ Minimal inrush current surge

▪ Full power between -25°C and +60°C

▪ DC-OK relay contact

▪ Current sharing feature for parallel use

▪ 3 year warranty

HORT

FORM

ATA

Output voltage

DC 12V

Adjustment range

12 - 15Vdc

AC 120-240V mains

Output current

30A

22.5A

AC 100V mains

Output current

20.4-17.5A

12.8-10.9A

Derate between +60°C and +70°C

Output ripple

< 100mVpp

AC Input voltage

AC 100-240V

Mains frequency

50-60Hz

AC Input current

4.1 / 2.3A

Power factor

0.99 / 0.95

AC Inrush current

9 / 7A peak

Efficiency

91.4 / 92.6%

Power losses

33.9 / 28.8W

Temperature range

-25°C to +70°C

Hold-up time

35 / 35ms

Dimensions (WxHxD)

65x124x127mm

Weight

1000g

AIN

PPROVALS

For details and a the complete approval list, see chapter 19.

UL 508

IECEx

CPS20.121

INGLE

HASE

NPUT

nominal

factory setting 12.0V

up to +60°C ambient

at +70°C ambient

up to +60°C ambient

at +70°C ambient

20Hz to 20MHz

-15%/+10%

±6%

at 120 / 230Vac

operational

120 / 230Vac

UL 60950-1

ATEX

Class I Div 2

Marine

1/28

Table of Contents

Need help?

Do you have a question about the DIMENSION C Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Puls DIMENSION C Series

Page 1 CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT OWER UPPLY ▪ AC 100-240V wide-range Input ▪ Width only 65mm ▪ Efficiency up to 92.6% ▪ ATEX and IECEx approved ▪ Excellent partial load efficiency ▪ Safe Hiccup PLUS overload mode ▪...
Page 2: Table Of Contents
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT NDEX Page Page Intended Use ..............3 22. Accessories..............21 Installation Instructions ..........3 22.1. ZM2.WALL - Wall Mounting Bracket ....21 AC-Input ............... 5 22.2. ZM13.SIDE - Side Mounting Bracket....21 DC-Input ...............
Page 3: Intended Use
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 1. I NTENDED This device is designed for installation in an enclosure and is intended for commercial use, such as in industrial control, process control, monitoring, measurement equipment or the like. Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without additional appropriate safety devices, that are suited for the end-application.
Page 4 CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT The device is designed, tested and approved for branch circuits up to 32A (IEC) and 30A (UL) without additional protection device. If an external fuse is utilized, do not use circuit breakers smaller than 10A B- or C-Characteristic to avoid a nuisance tripping of the circuit breaker.
Page 5: Ac-Input
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 3. AC-I NPUT AC input nom. AC 100-240V suitable for TN-, TT- and IT mains networks AC input range 85-264Vac no damage between 0 and 85Vac 264-300Vac < 500ms Allowed voltage L or N to earth max.
Page 6: Dc-Input
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT Fig. 3-3 Input current vs. output load at 12V Fig. 3-4 Power factor vs. output load at 12V Input C urrent, typ. a) 100Vac b) 120Vac c) 230Vac 9 12 15 18 21 24 Output C urrent at 12V 4.
Page 7: Output
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 6. O UTPUT Output voltage nom. Adjustment range 12-15V guaranteed max. 16.5V at clockwise end position of potentiometer Factory settings typ. 12.0V ±0.2%, at full load, cold unit, in “single use” mode typ.
Page 8 CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT Fig. 6-1 Output voltage vs. output current, typ. Fig. 6-2 Output voltage in “parallel use” mode, typ. Output Voltage (S ingle Us e, typ.) Output Voltage (P arallel Us e, typ.) Adjus tment R ange Adjus tment...
Page 9: Hold-Up Time
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 7. H AC 100V AC 120V AC 230V Hold-up Time typ. 80ms 80ms 80ms at 12V, 15A, see Fig. 7-1 min. 67ms 67ms 67ms at 12V, 15A, see Fig. 7-1 typ. 35ms 35ms 35ms...
Page 10: Efficiency And Power Losses
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 9. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency typ. 90.9% 91.4% 92.6% at 12V, 30A Average efficiency typ. 90.0% 90.5% 91.6% 25% at 7.5A, 25% at 15A, 25% at 22.5A.
Page 11: Lifetime Expectancy And Mtbf
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 10. L MTBF IFETIME XPECTANCY AND AC 100V AC 120V AC 230V Lifetime expectancy 168 000h 170 000h 174 000h at 12V, 15A and +40°C 475 000h 481 000h 492 000h at 12V, 15A and +25°C 50 000h 50 000h...
Page 12: Terminals And Wiring
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 12. T ERMINALS AND IRING The terminals are IP20 Finger safe constructed and suitable for field- and factory wiring. Input and output DC-OK-Signal Type screw terminals spring-clamp terminals Solid wire 0.5-6mm 0.15-1.5mm Stranded wire 0.5-4mm...
Page 13: Front Side And User Elements
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 13. F RONT IDE AND LEMENTS Fig. 13-1 Front side Input Terminals (screw terminals) N, L Line input PE (Protective Earth) input Output Terminals (screw terminals, two pins per pole) Positive output –...
Page 14: 14. Emc
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 14. EMC The power supply is suitable for applications in industrial environment as well as in residential, commercial and light industry environment without any restrictions. A detailed EMC report is available on request. EMC Immunity According generic standards: EN 61000-6-1 and EN 61000-6-2 Electrostatic discharge...
Page 15: Environment
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT Switching Frequencies The power supply has two converters with two different switching frequencies included. Switching frequency 1 70kHz to 140kHz PFC converter, input voltage and output power dependent Switching frequency 2 80kHz to 150kHz Main converter, output power dependent 15.
Page 16: Protection Features
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 16. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-voltage protection typ. 17.3Vdc In case of an internal power supply defect, a redundant circuit max. 18Vdc limits the maximum output voltage.
Page 17: Dielectric Strength
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 18. D IELECTRIC TRENGTH The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down).
Page 18: Approved, Fulfilled Or Tested Standards
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 19. A PPROVED ULFILLED OR ESTED TANDARDS UL 508 UL Certificate Listed equipment for category NMTR - Industrial Control Equipment Applicable for US and Canada E-File: E198865 IEC 61010-2-201 Manufacturer's Declaration Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 60950-1...
Page 19: Regulatory Product Compliance
EU-Regulation on Waste Electrical and Electronic Equipment (WEEE) registered in Germany as business to business (B2B) products. WEEE Reg.-Nr. DE 55837529 CCC Certificate China Compulsory Certification (CNCA-C23-01:2019) Certificate for devices made in Suzhou/China (PULS Electronics): 2022122303114927 Certificate for devices made in Chomutov/Czech Republic (PULS investiční): 2022122303114926 CCC-Ex...
Page 20: Physical Dimensions And Weight
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 21. P HYSICAL IMENSIONS AND EIGHT Weight 1000g DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm. The DIN rail depth must be added to the unit depth (127mm) to calculate the total required installation depth.
Page 21: Accessories
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 22. A CCESSORIES 22.1. ZM2.WALL - W OUNTING RACKET This bracket is used to mount the power supply onto a flat surface without utilizing a DIN rail. Due to the small size of the unit, it is required that the black-DIN rail slide on the back of the unit must be removed. Instructions how to do this can be found in the manual of the ZM2.WALL.
Page 22: Yr80.242 - Redundancy Modules
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 22.3. YR80.242 - R EDUNDANCY ODULES (2x 40A Inputs, 1x 80A output) The YR80.242 is the preferred redundancy module for the CPS20.121 power supply. It is equipped with two input channels, which are individually decoupled by utilizing mosfet technology. Using mosfets instead of diodes reduces the heat generation and the voltage drop between input and output.
Page 23: Application Notes
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23. A PPLICATION OTES 23.1. P URRENT APABILITY The power supply can deliver peak currents (up to several milliseconds) which are higher than the specified short term currents. This helps to start current demanding loads. Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil.
Page 24: External Input Protection
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23.3. E XTERNAL NPUT ROTECTION The unit is tested and approved for branch circuits up to 30A (UL) and 32A (IEC). An external protection is only required if the supplying branch has an ampacity greater than this. Check also local codes and local requirements. In some countries local regulations might apply.
Page 25: Parallel Use To Increase Output Power
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23.5. P ARALLEL SE TO NCREASE UTPUT OWER CPS20.121 power supplies can be paralleled to increase the output power. The output voltage of all power supplies shall be adjusted to the same value (±100mV) in “Single use” mode with the same load conditions on all units, or the units can be left with the factory settings.
Page 26: Series Operation
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23.7. S ERIES PERATION Power supplies of the same type can be connected in series for higher output voltages. It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150Vdc.
Page 27: Operation On Two Phases
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23.10. O PERATION ON HASES The power supply can also be used on two-phases of a three-phase-system. Such a phase-to-phase connection is allowed as long as the supplying voltage is below 240V +10% 23.11.
Page 28: Mounting Orientations
CPS20.121 12V, 30A, 360W, S C-Series INGLE HASE NPUT 23.12. M OUNTING RIENTATIONS Mounting orientations other than all terminals on the bottom require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous operation can be found below: Curve A1 Recommended output current.
