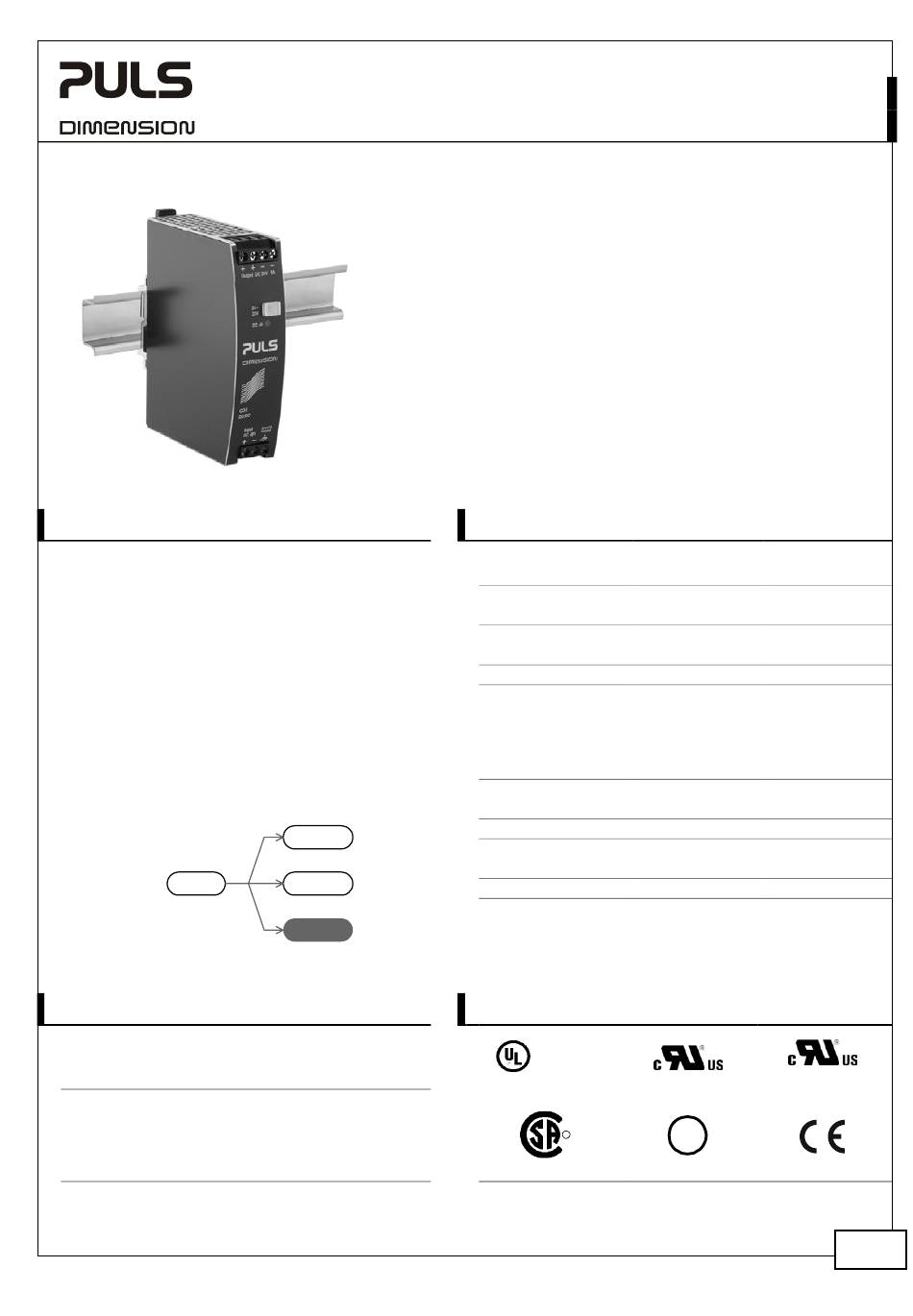

CD–Series
1. G D
ENERAL ESCRIPTION
The Dimension CD5-Series offers a range of DIN-rail
mountable DC/DC-converters in a very compact
housing.
The CD5.242 converts a 48V voltage to a 24V
voltage. The input source can be a battery, a solar
panel or any other 48V sources.
The CD5.242 includes all the essential basic functions
and has a power reserve of 20% included. This extra
power can be used continuously up to +45°C.
The output is electrically isolated from the input in a
safe way. The input is protected against reversed
voltages and contains a soft start funtion.
CD-Series
Related products
24V->24V
CD5.241
3. O N
RDER UMBERS
DC/DC
CD5.242
Converter
Accessories ZM1.WALL
ZM11.SIDE
YRM2.DIODE Redundancy module
YR2.DIODE
July 08 / Rev. 1.2 DS-CD5.242-EN / All parameters are specified at 24V, 5A and 48Vdc input at 25°C ambient unless otherwise noted.
Spring-clamp
24V->24V
terminals,
CD5.241-S1 Input-low,
DC-OK
contacts
24V->12V
CD5.121
48V->24V
CD5.242
Standard unit
Wall mount bracket
Side mount bracket
Decoupling module
www.pulspower.com Phone +49 89 9278 0
DC/DC Converter; 24V, 5A
DC/DC C
ONVERTER
■
Wide Range DC Input (36-60Vdc)
■
Isolated 24Vdc Output
■
Efficiency up to 90.3%
■
Width only 32mm
■
20% Output Power Reserves
■
Full Output Power Between -25°C and +60°C
■
Soft-start Function Included
■
Minimal Inrush Current Surge
■
Reverse Input Polarity Protection
■
3 Year Warranty
2. S -
HORT FORM
Output voltage DC 24V
Adjustment range 23 - 28V
Output current 5 – 4.3A
6 – 5.1A
Output power 120W
144W
Output ripple < 50mVpp
Input voltage DC 48V
Input current typ. 2.75A
Input inrush current typ. 0.6A peak
Efficiency typ. 90.3%
Losses typ. 12.9W
Hold-up time typ. 5.6ms
Temperature range -25°C to +70°C
Derating 3W/°C
Dimensions 32x124x102mm
4. M
ARKINGS
18WM
LISTED
IND. CONT. EQ.
UL 508
R
C US
182790
Germany
CD5.242
D
ATA
Ambient <60°C
Ambient <45°C
Ambient <60°C
Ambient <45°C
20Hz to 20MHz
36 to 60Vdc
(30.5 to 36Vdc
with derating)
At 48Vdc input
At 48Vdc input
At 48Vdc input
At 48Vdc input
Operational
+60 to +70°C
WxHxD
Class I Div 2,
UL 60950-1
pending
GL
EMC, LVD
Marine
