C-Series
G
D
ENERAL
ESCRIPTION

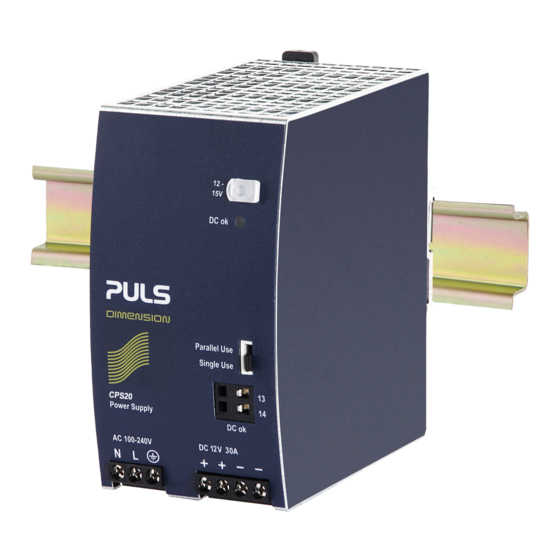

The Dimension C-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The C-Series is part of the DIMENSION
power supply family. The most outstanding features of
CPS20.121 are the high efficiency, electronic inrush
current
limitation,
active
temperature range. The small size is achieved by a
synchronous rectification and further technological
design details.
The C-Series includes all the essential basic functions.
Additionally, the CPS20.121 can deliver about 4 times
the nominal output current for 15ms which helps to trip
fuses on faulty output branches.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O
N
RDER
UMBERS
Power Supply
CPS20.121
Accessory
ZM2.WALL
ZM13.SIDE
YRH80.241
YRH40.245
YR80.241
May 2013 / Rev. 1.2 DS-CPS20.121-EN
All parameters are specified at 12V, 30A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
PFC,
wide
operational
12-15V Standard unit
Wall mount bracket
Side mount bracket
Redundancy module
Redundancy module
Redundancy module
www.pulspower.com Phone +49 89 9278 0
12V, 30A, S
P
S
OWER
UPPLY
AC 100-240V Wide-range Input
Width only 65mm
Efficiency up to 92.6%
Excellent Partial Load Efficiency
Safe Hiccup
PLUS
Overload Mode
Easy Fuse Breaking due to High Overload Current
(typ. 120A for 15ms)
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
Current Sharing Feature for Parallel Use
3 Year Warranty
S
-
D
HORT
FORM
Output voltage
DC 12V
Adjustment range
12 - 15V
Output current
30A
30A
Output power
360W
450W
Output ripple
< 100mVpp
AC Input voltage
AC 100-240V
Mains frequency
50-60Hz
AC Input current
3.3 / 1.8A
Power factor
0.99 / 0.95
AC Inrush current
typ. 9 / 7A peak at 120 / 230Vac
Efficiency
90.9 / 92.6%
Losses
33.9 / 28.8W
Temperature range -25°C to +70°C
Derating
9W/°C
between 100-85Vac see chapter 15
Hold-up time
typ. 35 / 35ms
Dimensions
65x124x127mm WxHxD
Weight
1000g / 2.2lb
M
ARKINGS
IND. CONT. EQ.
UL 508, pending
Germany
CPS20.121
P
I
INGLE
HASE
NPUT
ATA
at 12V
at 15V
at 12V
at 15V
20Hz to 20MHz
-15%/+10%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 12V, 30A
120 / 230Vac
UL 60950-1,
Marine, pending
pending
Class I Div 2
EMC, LVD, RoHS
pending
1/25
