Puls QS10.241-60 Manual

Q-Series
G D
ENERAL ESCRIPTION

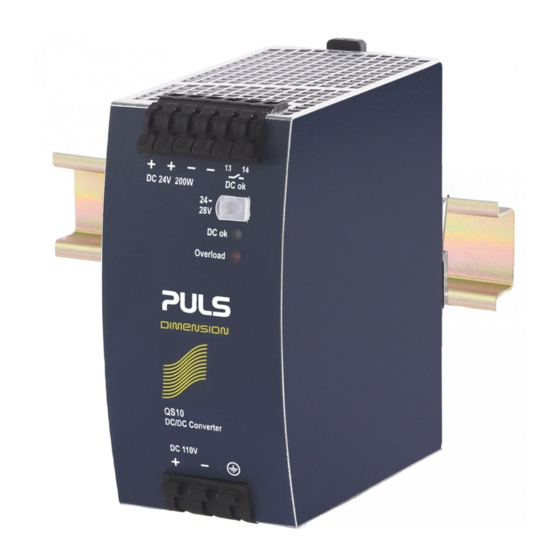

The QS10.241-60 DC/DC
specifically for railway & transportation applications. It
is approved according to the EN 50155 standard, which
is an international standard
equipment used on
applications. The standard covers aspects such as
temperature, humidity, shock, vibration, EMI and other
parameters. Because of these requirements, the unit is
equipped with conformal coated pc-boards.
The unit features a DC-OK signal contact for remote
monitoring, and quick-connect spring-clamp terminals
for a reliable connection even when mechanical
vibration and shock are involved. The unit also covers an
extreme wide temperature range from -40°C up to
+70°C with full output current.
This DC/DC converter comes in a very compact housing
and requires only 60mm space on the DIN-rail due to
the high efficiency and low power losses. The high
efficiency is achieved
technology and other unique design techniques.
O N
RDER UMBERS
DC/DC converter QS10.241-60
Accessory ZM13.SIDE
YR2.DIODE
UF20.241
Aug. 2016 / Rev. 1.0 DS-QS10.241-60-EN
All parameters are specified at 24V, 8.3A, 110Vdc, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
converter is designed
covering electronic
rolling stock for railway
by utilizing cutting edge
Side mount bracket
Redundancy module
Buffer module
www.pulspower.com Phone +49 89 9278 0
24V, 200W, DC/DC C
DC/DC C
ONVERTER
EN 50155 Railway Compliant
Conformal Coated PC-boards
Quick-connect Spring-clamp Terminals
77-154Vdc Wide-range Input
Width only 60mm
Efficiency up to 93.0%
Excellent Partial Load Efficiency
Minimal Inrush Current Surge
Full Power Between -40°C and +70°C
DC-OK Relay Contact
Reverse Input Polarity Protected
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 8.3 – 7.1A
12.5 – 10.7A
Output power 200W
300W
Output ripple max. 50mVpp
AC Input voltage -
DC Input voltage DC 110V
DC Input current 1.96A
Inrush current typ. 4A peak
Efficiency 93.0%
Losses 15.0W
Temperature range -40°C to +70°C
Derating -
Hold-up time typ. 23ms
Dimensions 60x124x117mm WxHxD
Weight 920g / 2.03lb
M
ARKINGS
Germany
QS10.241-60
ONVERTER
ATA
continuous
for typ. 4s
continuous
for typ. 4s
20Hz to 20MHz
-
- 30%/ +40%
at 110Vdc
at 110Vdc
at 110Vdc
at 110Vdc
operational
not required
at 110Vdc
EMC, LVD
1/27
