Puls DIMENSION CPS20.241-A1 Manual

C-Series
G D
ENERAL ESCRIPTION
The Dimension C-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The C-Series is part of the DIMENSION
power supply family. The most outstanding features of
CPS20.241 are the high efficiency, electronic inrush
current limitation, active
temperature range. The small size is achieved by a
synchronous rectification and further technological
design details.
The C-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CPS20.241 can deliver
about 4 times the nominal output current for 15ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O N
RDER UMBERS
Power Supply CPS20.241
CPS20.241-A1 conformal coated and
Accessory ZM2.WALL
ZM13.SIDE
YR40.241
YRH40.241
May 2012 / Rev. 1.0 DS-CPS20.241-EN
All parameters are specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
PFC, wide operational
24-28V Standard unit
ATEX approved unit
Wall mount bracket
Side mount bracket
Redundancy module
Redundancy module
www.pulspower.com Phone +49 89 9278 0

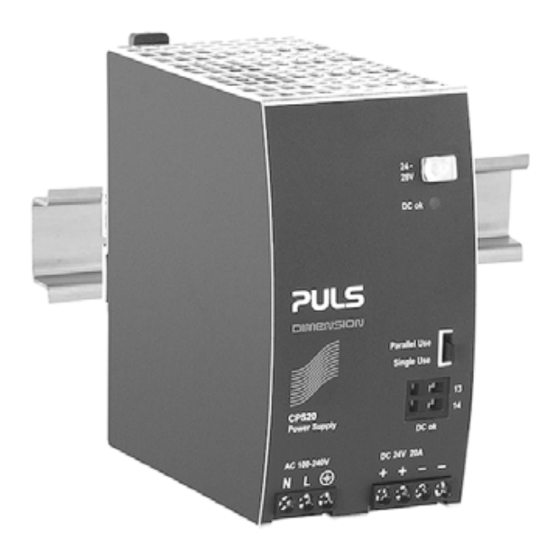

CPS20.241, CPS20.241-A1
24V, 20A, S
P S
OWER UPPLY
AC 100-240V Wide-range Input
Width only 65mm
Efficiency up to 94.0%
CPS20.241-A1 Conformal Coated and ATEX Approved
Excellent Partial Load Efficiency
20% Output Power Reserves
Easy Fuse Tripping due to High Overload Current
(typ. 80A for 15ms)
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
Current Sharing Feature for Parallel Use
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 20A
24A
17.1A
20.6A
Output power 480W
576W
Output ripple < 50mVpp
AC Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 4.36 / 2.33A
Power factor 0.99 / 0.95
AC Inrush current typ. 9 / 7A peak at 120 / 230Vac
Efficiency 92.7 / 94.0%
Losses 37.8 / 30.6W
Temperature range -25°C to +70°C
Derating 12W/°C
between 100-85Vac see chapter 15
Hold-up time typ. 26 / 26ms
Dimensions 65x124x127mm WxHxD
M
ARKINGS
IND. CONT. EQ.
UL 508
Class I Div 2
II 3G Ex nA nC II T3 Gc
pending
Germany
P I
INGLE HASE NPUT
ATA
at 24V, amb <60°C
at 24V, amb <45°C
at 28V, amb <60°C
at 28V, amb <45°C
ambient <60°C
ambient <45°C
20Hz to 20MHz
-15%/+10%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
UL 60950-1
Marine, pending
ATEX
EMC, LVD, RoHS
pending
