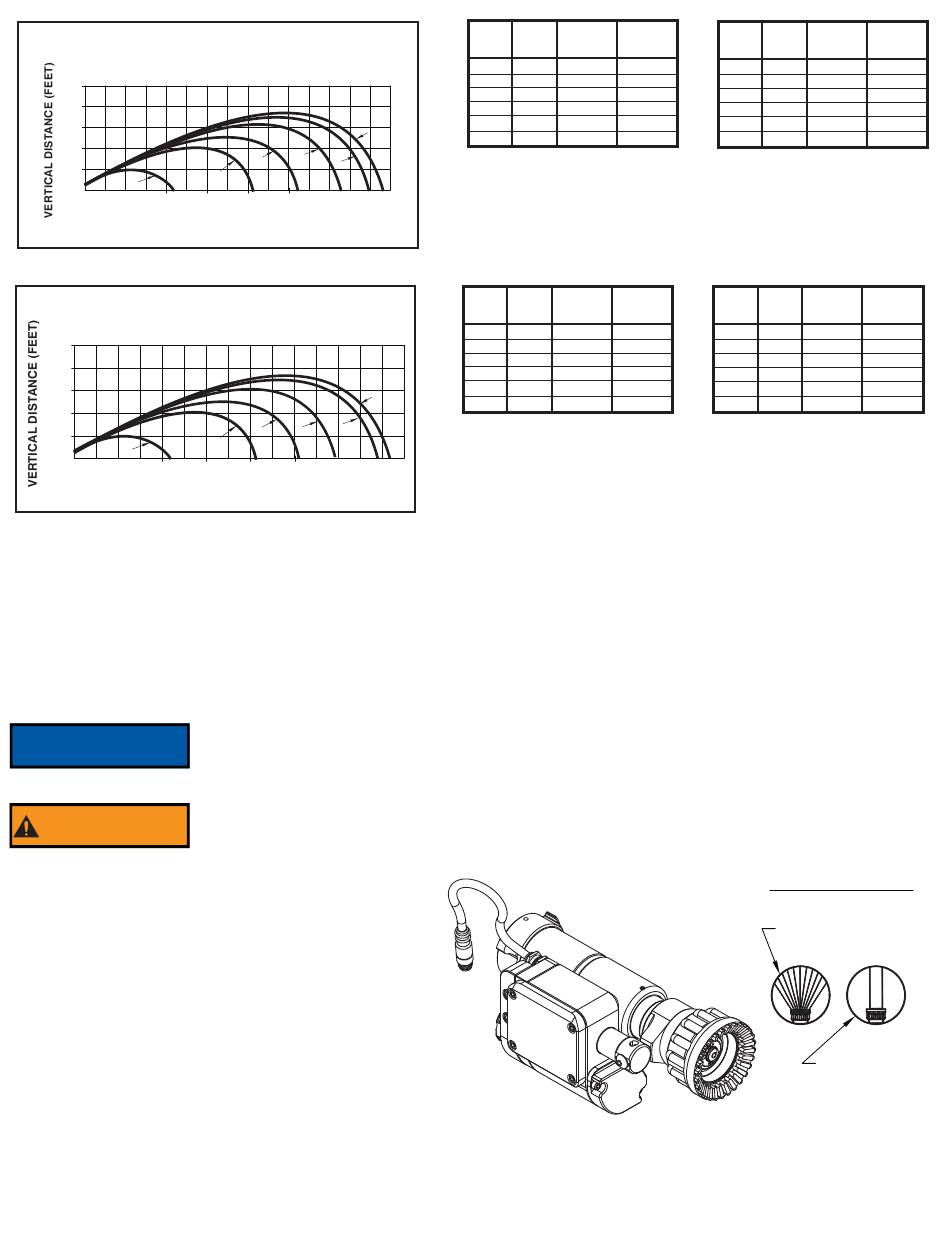

120 PSI ELECTRIC
REMOTE CONTROL NOZZLE
50
40
30
20
10
A
0
0 20 40
HORIZONTAL DISTANCE (FEET)
150 PSI ELECTRIC
REMOTE CONTROL NOZZLE
50
40
30
20
10
A
0
0 20 40
HORIZONTAL DISTANCE (FEET)
6.0

PATTERN CONTROL

Use the FOG and STRAIGHT STREAM buttons on the nozzle controller to move the shaper to the desired stream setting. Moving the
shaper forward transitions to the straight stream position. Moving the shaper rearward will result in an increasingly wider pattern.
To operate the nozzle manually: Turn the MANUAL OVERRIDE KNOB in either direction to change the stream position.
Since the stream trim point varies with the flow, the stream should be 'trimmed' after changing the flow to obtain the straightest and
furthest reaching stream. The nozzle reaction is greatest when the shaper is in the straight-stream position.
To properly trim a stream, first open the pattern to a narrow fog. Then close the stream to parallel to give maximum reach.
NOTICE
7.0

FLUSHING DEBRIS

WARNING
Debris in the water may get caught inside the nozzle. This
trapped material will cause poor stream quality, shortened
reach, and reduced flow. Debris can be flushed as follows:
1. While flowing water, move the shaper rearward past
the full fog position until it stops traveling. *This will
open the nozzle allowing debris to pass through.
2. Move the shaper forward, out of flush position to
resume normal operation.
*When used with a TFT RC Monitor equipped with Smart
Stream technology, the FOG button must be pressed and held
a second time to reach the FLUSH position. Doing this
prevents unintentional flushing of the nozzle, which causes
reduced reach and increased flow rate, potentially depleting
the water supply more quickly.
©Copyright Task Force Tips LLC 2012-2021
F
D
C
E
B
60 80 100 120 140
F
E
D
C
B
60 80 100 120 140
Turning the shaper further forward will cause stream crossover and reduce the reach of the nozzle.
Large amounts or pieces of debris may be unflushable and can reduce the flow of the nozzle
resulting in an ineffective flow. In the event of a blockage, it may be necessary to retreat to a safe
area, uncouple the nozzle and remove debris.
PSI
GPM
INLET
CURVE FLOW PRESSURE
A 10 27
B 25 83
C 50 102
D 75 113
E 100 123
F 125 128
Figure 5.1C
PSI
GPM INLET
FLOW
CURVE PRESSURE
A 10 27
B 25 90
C 50 135
D 75 151
E 100 165
F 125 175
Figure 5.1D
6
LBS
LPM
REACTION
CURVE FLOW
3 A 38
12
B 95
27 190
C
42
D 284
59
E 379
75 F 473
LBS
LPM
REACTION
CURVE FLOW
3 A 38
13 B 95
31 190
C
49 D 284
68 E 379
F 473
87
SMART STREAM (-ERP models)
NOZZLE STOPS AT FULL FOG
PRESS AGAIN FOR FLUSH
PRESS AND HOLD
FOR FOG, THEN FLUSH
FOG
Fog and Straight Stream Buttons
Are Located on TFT Control Unit
View TFT Manual LIY-500
for your specific control unit.
Figure 7.0
LIB-065 February 22, 2021 Rev02
KGF/CM 2
INLET KGF
PRESSURE REACTION
1.9 1.4
5.8 5.4
12.2
7.2
7.9 19.0
8.6 26.8
9.0 34.0
KGF/CM 2
INLET KGF
PRESSURE REACTION
1.9 1.4
6.3 5.9
14.0
9.5
10.6 22.2
11.6 30.9
12.3 39.5
STRAIGHT
STREAM
PRESS AND HOLD
FOR STRAIGHT STREAM
