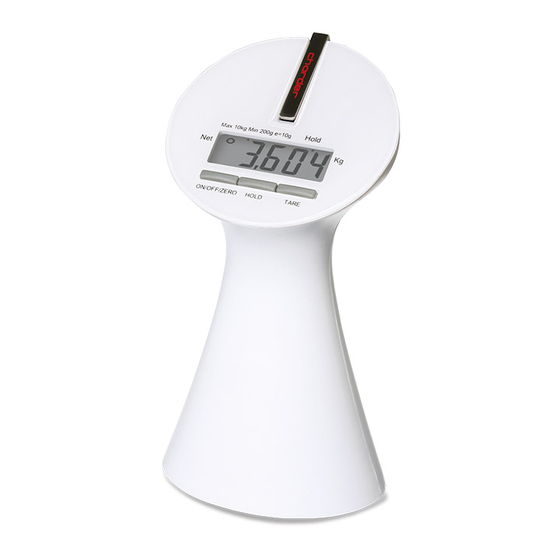

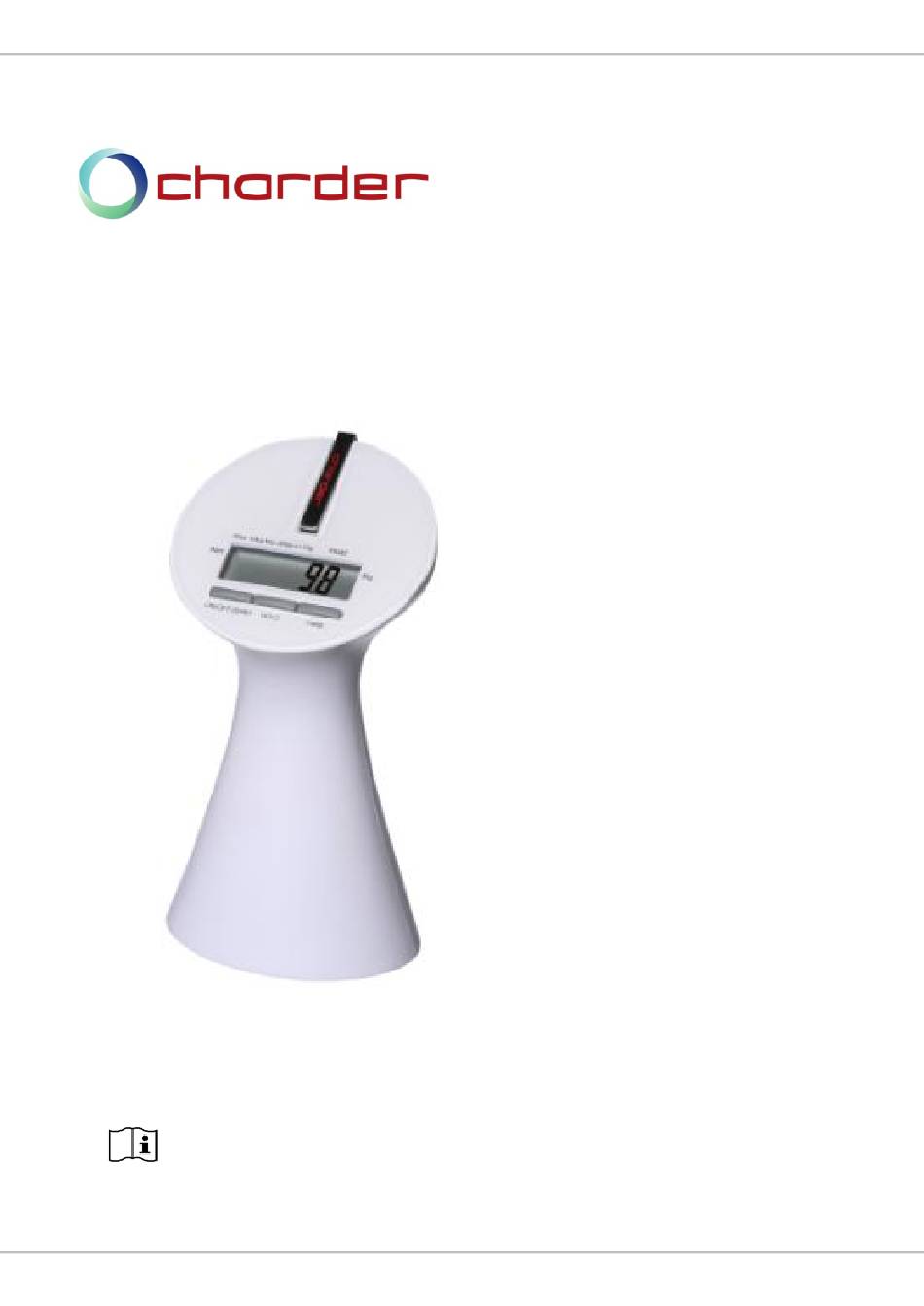

- Page 1 USER MANUAL MS4400I Infant Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to International Organization of Legal Metrology (Class III) requirements Manufacturing year of Indicates that device medical device conforms to 2014/31/EU Non...
- Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
CONTENTS I. Safety Notes ................5 A. General Information ............. 5 B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 III. Key Functions and Indicator ..........13 IV. Getting Started ..............14 V. Using Device ................15 A. Correct usage ..............15 B. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 If results are inaccurate, please contact local distributor. Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit.
- Page 7 Disposal This product is not to be treated as regular household waste, but should be taken to a designated collection points for electronics. Further information should be provided by local waste disposal authorities. Warning Keep device away from liquids. ...
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS4400I Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Guidance and manufacturer’s declaration-electromagnetic immunity The MS4400I Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance...
- Page 10 Guidance and manufacturer’s declaration-electromagnetic immunity The MS4400I Infant Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance...
- Page 11 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distance between portable and mobile RF communications equipment and the MS4400I Infant Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 12: Installation
II. Installation Device does not require assembly, and can be used once batteries have been inserted, and S-hook and sling are attached. Inserting Batteries 1. Locate battery cover on bottom of device. Open cover, and remove battery case from device. (Fig. -
Page 13: Key Functions And Indicator
III. Key Functions and Indicator Key Functions 1. ON/OFF/ZERO: Turn device on and off. Zero scale (±2% of full capacity). Press and hold to turn off device. 2. HOLD: Determine stable weighing value - should be used when weight is unstable. 3. -
Page 14: Getting Started
IV. Getting Started Inspection before use 1. Confirm hook and sling are in good condition and undamaged 2. Clear and remove any sharp objects in area to ensure safety of infant 3. We recommend placing a cushion under the sling before weighing for comfort and safety... -
Page 15: Using Device
V. Using Device A. Correct usage 1. Lay sling upon table and spread 2. Carefully place infant upon sling out evenly 3. Hook S-hook onto device 4. Hook s-hook onto sling. S-hook should now be hooked to both device and sling. 5. - Page 16 6. Carefully lift device with both hands until baby no longer touches table. After weight has stabilized, the reading on the indicator will flash. This means the result has been locked. Device should be carefully lowered until infant is safely placed back upon table. Note: If infant's weight exceeds scale capacity (including tare), indicator will display "Err"...
-
Page 17: Tare
B. Tare The tare function allows the user to deduct the weight of objects from the device's measurement result. Tare can be used when weight of object is ≧ at/above 2% of max capacity. 1. Place object that needs to be tared onto sling. Lift sling from ground until weight is displayed on indicator. -
Page 18: Incorrect Usage Examples
D. Incorrect usage examples Using device with one hand Thumbs not properly supporting device weight. Thumbs should be wrapped around "neck" of device. -
Page 19: Wireless Connection
Warranty Program & Return Policy. 1. If Charder is responsible for a fault or defect present upon receipt of the unit, Charder shall either repair the fault, or supply a replacement unit. - Page 20 Distributor support required If the following errors occur, we recommend contacting your local Charder distributor for repair or replacement services: 1. Device will not power on Faulty on/off key Broken or damaged wires causing short circuit or faulty connection ...
- Page 21 Error Messages Error Message Reason Action Low battery warning Replace batteries Voltage of battery is too low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or Signal from loadcells too...
-
Page 22: Product Specifications
VIII. Product Specifications Device Information Model MS4400I Weight Capacity 10 kg x 10g 15 kg x 20g Measurement Accuracy ±15g ±30g LCD Screen 1.0-inch LCD screen (5 digits) OIML Class III Dimensions Device 105(W) x 79(D) x 193(H) mm Device 0.4 kg... - Page 23 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 24: Declaration Of Conformity
Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1034 REV XXX 06/2020...
