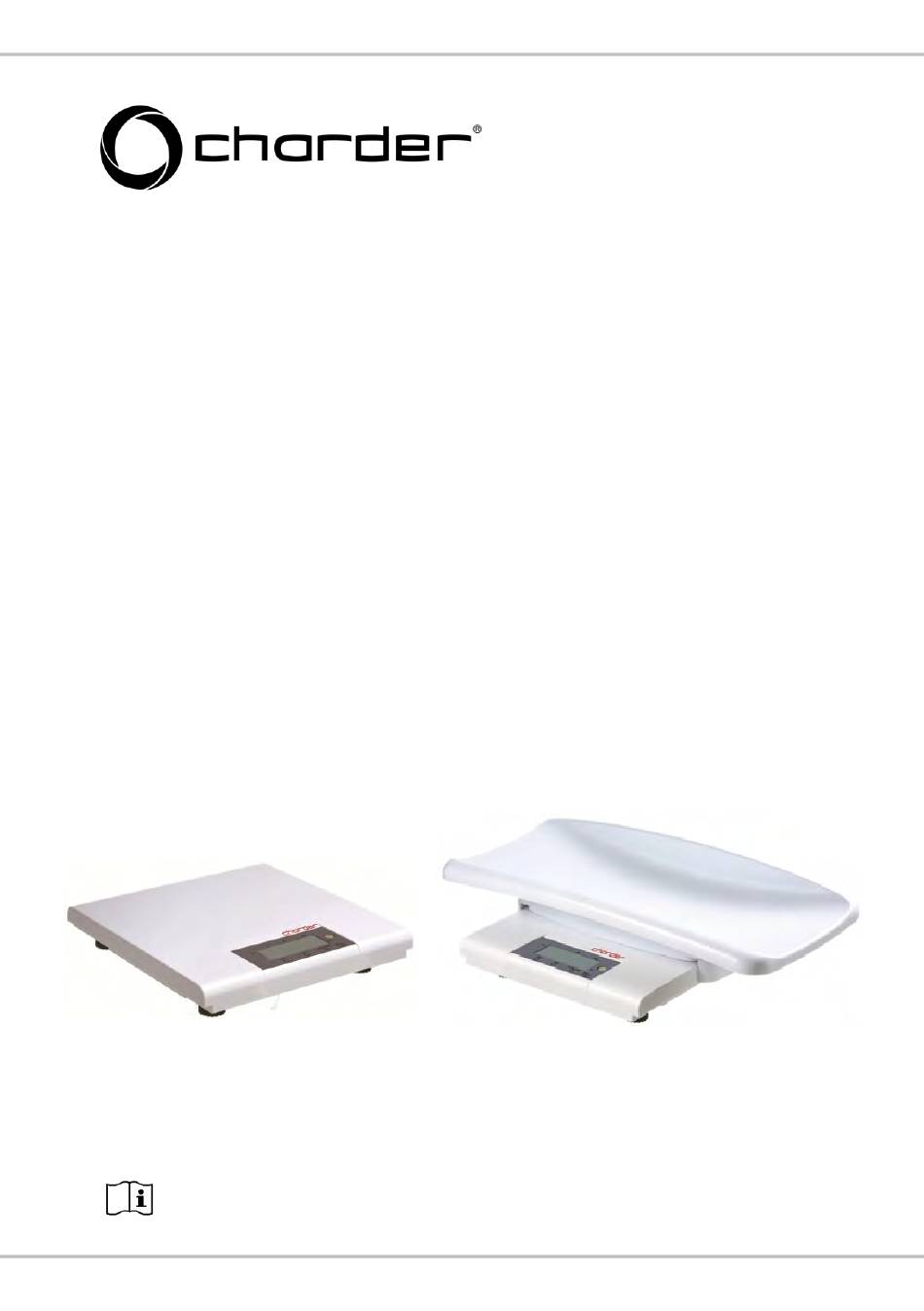

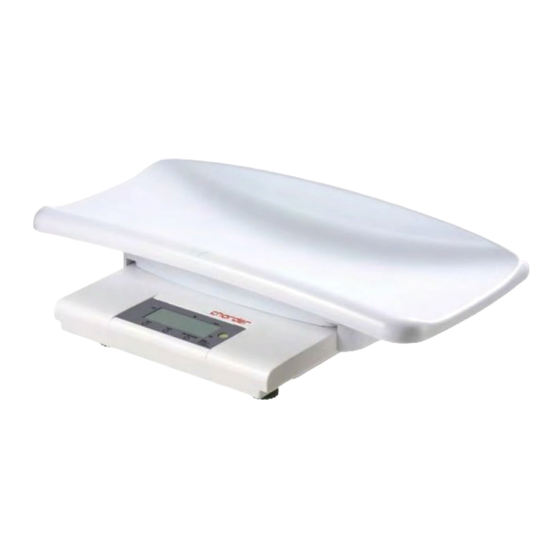

- Page 1 USER MANUAL MS4200.MS4202L Stand-on Floor Scale Please keep the instruction manual at hand all the time for future reference.
- Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for accompanying documents waste of electrical and before use electronic equipment, in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual Medical electrical before installation and equipment with Type B usage, and follow...
- Page 3 Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.
-
Page 4: Table Of Contents
B. EMC Guidance and Manufacturer's Declaration ......8 II. Installation ................12 A. Inserting Batteries .............12 B. Using Adapter ..............13 C. Attaching tray (MS4200) .............14 D. Height Measure Attachment (MS4200) .........15 III. Indicator ................16 IV. Using Device ...............17 A. Basic Operation ..............17 B. Tare .................17 C. -
Page 5: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 6 All maintenance, technical inspections, and repairs should be conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal This product is not to be treated as regular household waste, but ...
- Page 7 Do not under any circumstances dismantle or alter the device, as this could result in electric shock or injury as well as adversely affect the precision of measurements. Do not place the device in direct sunlight, or in close proximity to an intense heat source.
-
Page 8: Emc Guidance And Manufacturer's Declaration
B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MS4202L Stand-on Floor Scale is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. - Page 9 Electrical fast ± 2kV for + 2kV for power Mains power quality should be transient/burst power supply supply lines that of a typical commercial or IEC 61000-4-4 lines + 1kV for hospital environment. + 1kV for input/output input/output lines lines Surge IEC ±...
- Page 10 80MHz to 2,7 GHz the frequency of the transmitter. 3 V/m 80MHz to 2,7 Recommended separation distance: d = 1,2 √P d = 1,2 √P 80MHz to 800 MHz d = 2,3 √P 800MHz to 2,5 GHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d...
- Page 11 Recommended separation distance between portable and mobile RF communications equipment and the MS4202L Stand-on Floor Scale The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
-
Page 12: Installation
II. Installation Device can be used once batteries are installed (or adapter) is plugged in. A. Inserting Batteries 1. Locate battery cover on bottom of device 2. Remove battery cover. Insert batteries. Ensure polarity is correct. 3. Insert all batteries. Close cover and turn scale right-side up. -
Page 13: Using Adapter
B. Using Adapter Device can be powered via adapter using port located at rear of device. Plug adapter into device before plugging into mains. -
Page 14: Attaching Tray (Ms4200)
C. Attaching tray (MS4200) 1. Slide tray onto device 2. Turn device upside down. Secure tray to device by turning knob on each side of tray. (turn clockwise to tighten, turn counter-clockwise to loosen) 3. Device can now be used for measurement. -
Page 15: Height Measure Attachment (Ms4200)
D. Height Measure Attachment (MS4200) 1. Attach bracket to device and baby tray, and fasten screws using screwdriver. Bracket 2. Connect height measure attachment to bracket. A clicking noise will be heard. -
Page 16: Indicator
III. Indicator Indicator and Key Functions Key Functions 1. On/Zero/Off: Turn device on and off. Zero scale (± 2% of full capacity). Press and hold for 3 seconds to enter settings. 2. Hold/BMI: Determine stable weighing value - used when weight is unstable. -
Page 17: Using Device
IV. Using Device A. Basic Operation Switch on the device using [On/Zero/Off] key. The device will automatically perform self-calibration, displaying software version. Once "0.00 kg" appears on indicator, device is ready for measurement. Note: If "0.00 kg" does not display on indicator, press [On/Zero/Off] key to zero the device. -
Page 18: Bmi
35.0-39.9 High Obese III > 40 Very High (World Health Organization adult BMI standards) V. Wireless Connection If the device has the wireless module installed, the indicator can transmit measurement results wirelessly. Please see Charder wireless software instructions for details. -
Page 19: Device Setup
VI. Device Setup When the device is switched on, press and hold the [On/Zero/Off] key until the display shows "SET" followed by "A.OFF” (first option in setting menu). In device setup menu: [Hold/BMI] to toggle menu option [Tare] to confirm selection / enter submenu Auto Power-Off: Instruct device to shut off automatically after a certain period of time. - Page 20 Wi-Fi (optional): If device has Wi-Fi module installed, Wi-Fi function can be turned on or off. Press [Hold/BMI] to toggle between on/off, and [Tare] to confirm selection. Wi-Fi Setting (optional): If device has Wi-Fi module installed, this option will appear. Press [Hold/BMI] to toggle between on/off, and [Tare] to confirm selection.
-
Page 21: Troubleshooting
VII. Troubleshooting Before contacting your local Charder distributor for repair service, we recommend considering the following troubleshooting procedures: Self-inspection 1. Device will not power on If battery power is depleted, replace with new batteries If batteries are not used, check if the power adapter is plugged into ... - Page 22 Error Messages Error Message Reason Action Low battery warning Replace batteries, or Voltage of battery is too plug in adapter low to operate device Overload Reduce weight on Total load exceeds measurement device's maximum platform and try again capacity Counting Error (too Error normally caused high) by faulty loadcell or...
-
Page 23: Product Specifications
325(W) x 310(D) x 50(H) mm Device Weight 4.3 kg MS4202L: On/Zero/Off, Hold/BMI, Key Functions Tare MS4200: On/Zero/Off, Hold, Tare Wireless module (optional) Data Transmission NOTE: Device should be connected to network by qualified distributors only Power Supply AA battery / Power adapter Operation Temperature &... -
Page 24: Declaration Of Conformity
2014/31/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-0991 7008Y 04/2021...
