Valve Manifold - HYDRO-RAIN ORBIT SPRINKLER SYSTEM DESIGNER Installation Manual

1 valve ManIfold

A
B
Outlet to next manifold (only
applicable if there is another
manifold after this one)
See Section 9
Install Mainline Pipe
ORBIT
3/4" or 1" Blu-Lock Pipe
C
B
A

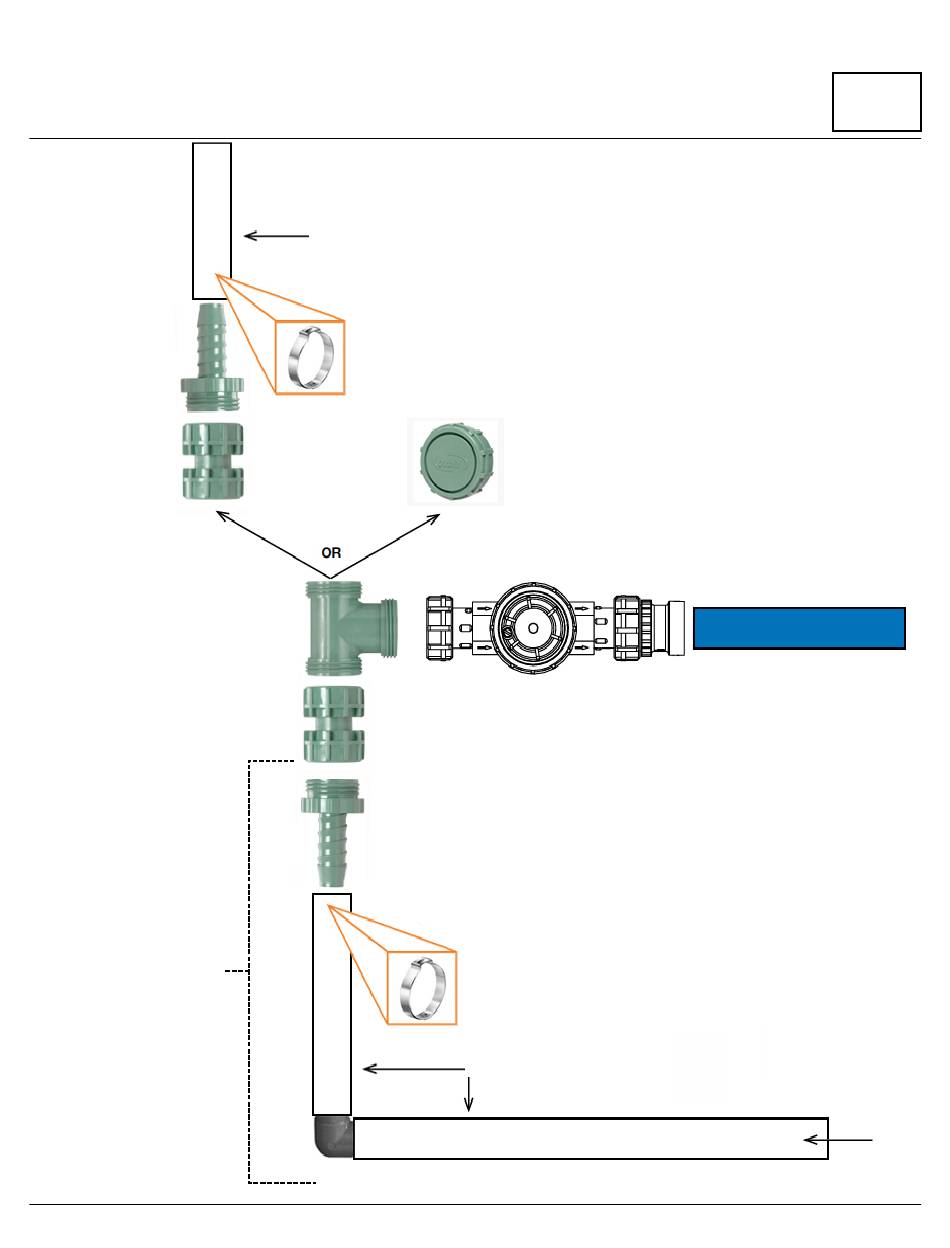

SPRINKLER SySTEm DESIGNER™ InstallatIon GuIde
®
A 3/4" or 1" Poly Adapter - 57188 or 57189
B Swivel Double Union - 57184
C 1 Port Manifold - 57181
D 1" Swivel Adapter - 57199
E 1" Jar Top Valve - 57461
F 3/4" Transition Adapter - 57187
G 3/4" Blu-Lock x 3/4" FPT Adapter - 37379
H Manifold End Cap - 57197
H
E
D
D
Use poly insert fittings and double clamps
for each connection on the mainline.
3/4" or 1" Blu-Lock Pipe
F G
3/4" or 1" Blu-Lock Pipe
A2
from source
connection
