dRIP zone asseMBlY

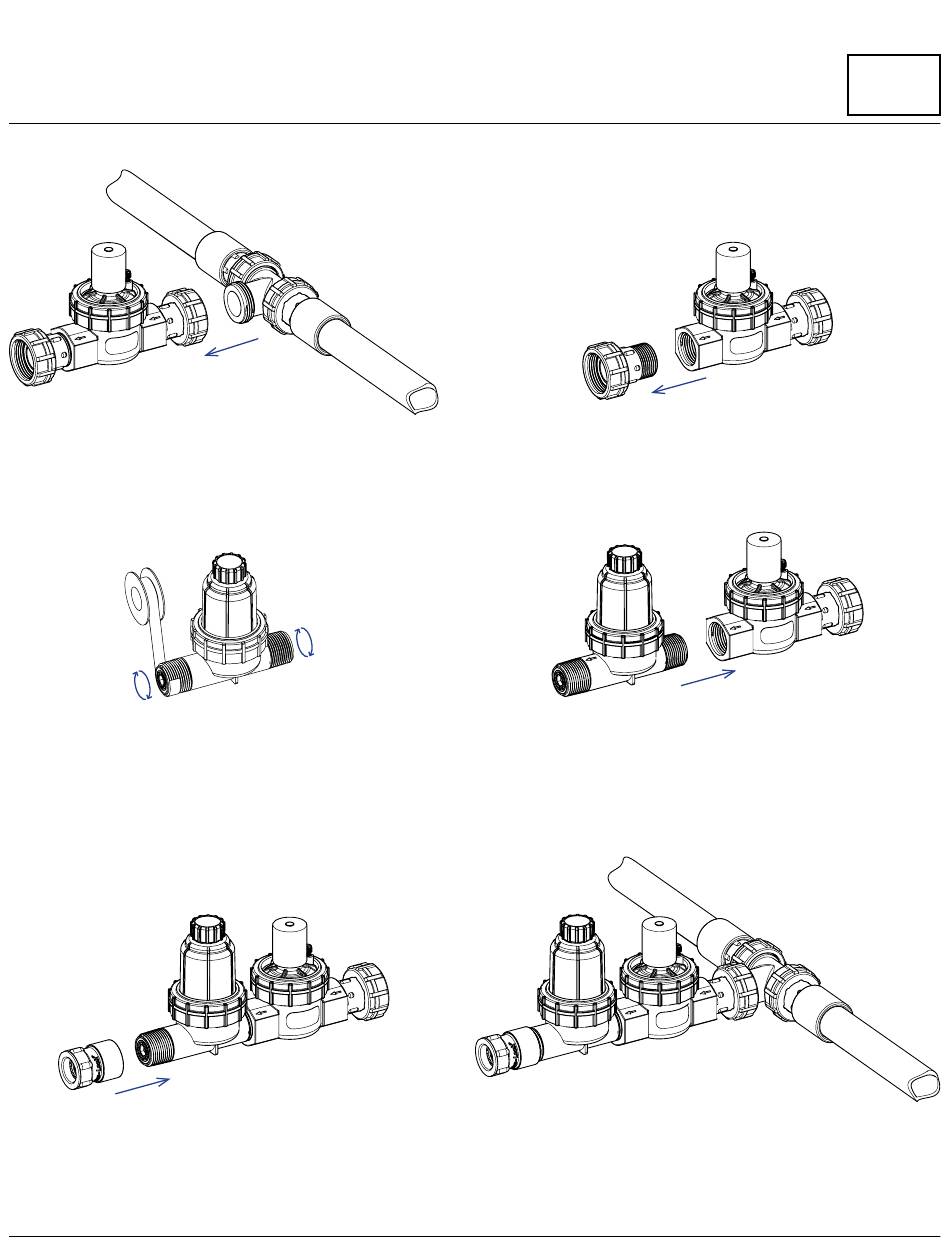

step 1: Remove valve from manifold
step 3: Put 5 complete turns of tape around the
threads of each end of the filter Pressure Regulator
Step 5: Thread 1" FPT x 3/4" Blu-Lock Adapter onto the
Filter Pressure Regulator until snug
ORBIT
SPRINKLER SySTEm DESIGNER™ InstallatIon GuIde
®
step 2: Remove adapter from valve
step 4: thread the filter Pressure
Regulator into the valve until snug
step 6: Reattach valve to manifold
A6
