HYDRO-RAIN ORBIT SPRINKLER SYSTEM DESIGNER Installation Manual page 11

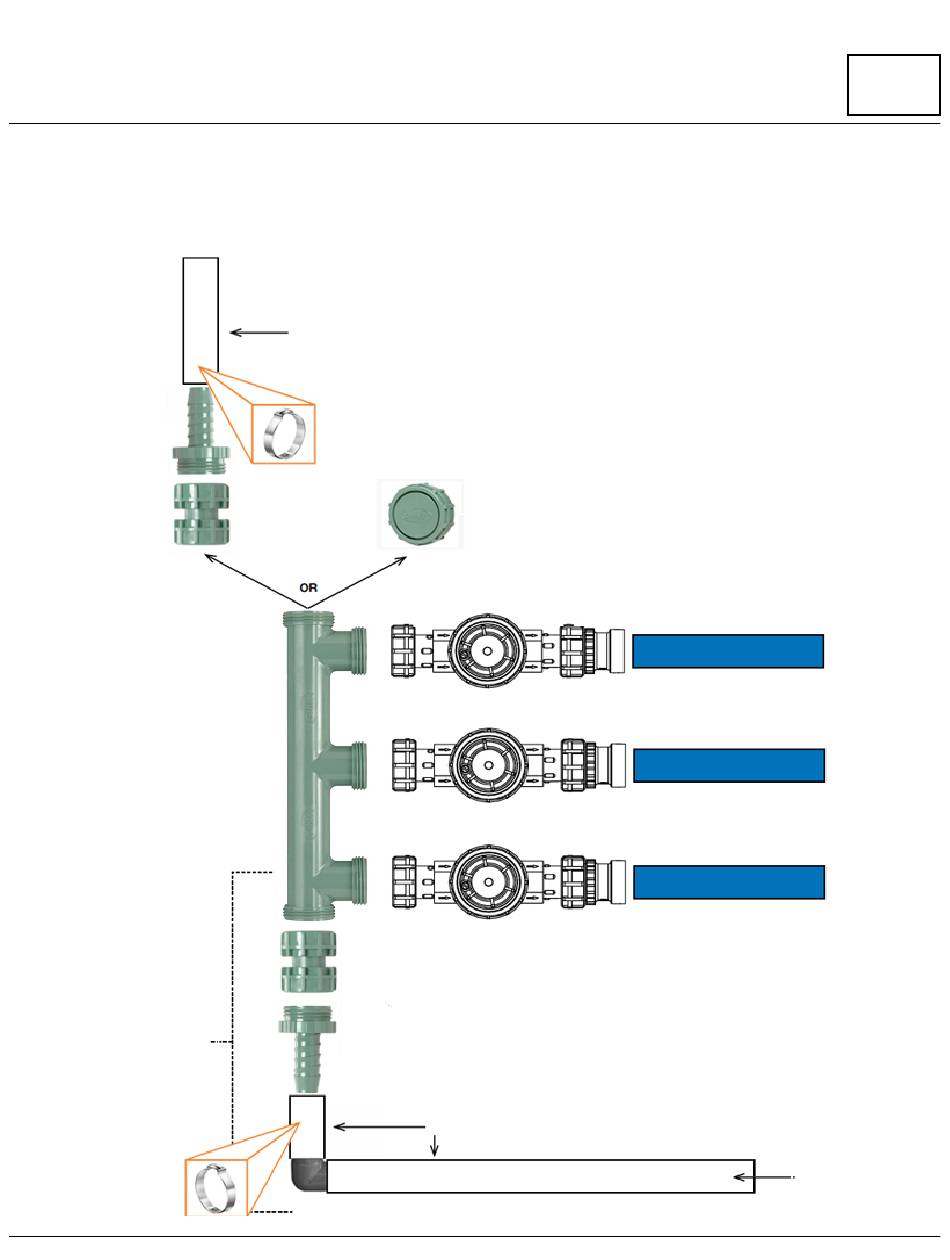

3 valve ManIfold
A
B
Outlet to next manifold (only
applicable if there is another
manifold after this one)
See Section 9
Install Mainline Pipe
ORBIT
3/4" or 1" Blu-Lock Pipe
Use poly insert fittings and
double clamps for each
connection on the mainline.
D
C
B
A
SPRINKLER SySTEm DESIGNER™ InstallatIon GuIde
®
H
E
D F
3/4" or 1" Blu-Lock Pipe
A 3/4" or 1" Poly Adapter - 57188 or 57189
B Swivel Double Union - 57184
C 2 Port Manifold - 57182
D 1" Swivel Adapter - 57199
E 1" Jar Top Valve - 57461
F 3/4" Transition Adapter - 57187
G 3/4" Blu-Lock x 3/4" FPT Adapter - 37379
H Manifold End Cap - 57197
G
3/4" or 1" Blu-Lock Pipe
A4
from source
connection
