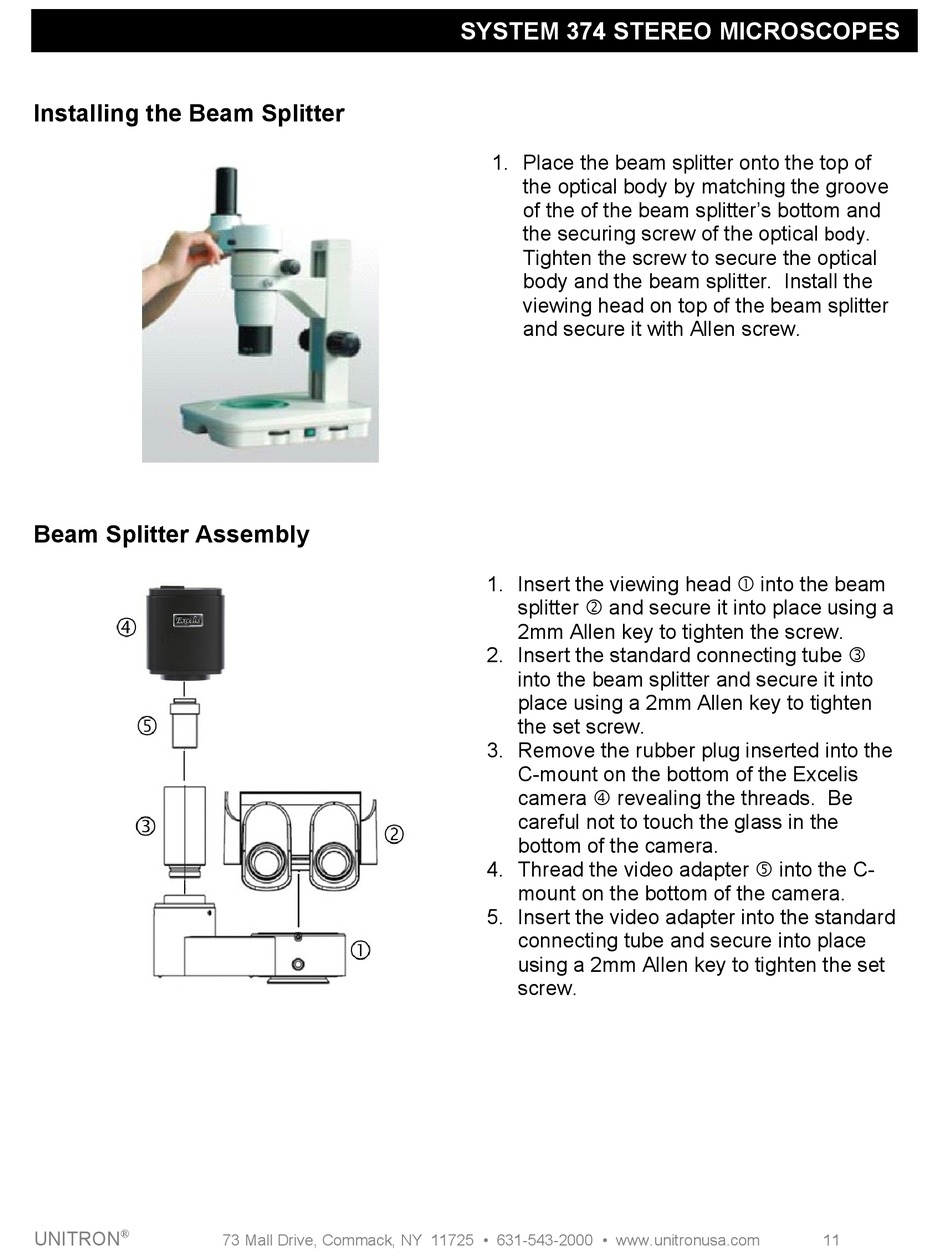

Installing the Beam Splitter

Beam Splitter Assembly
UNITRON ®
73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com
SYSTEM 374 STEREO MICROSCOPES
1. Place the beam splitter onto the top of
the optical body by matching the groove
of the of the beam splitter's bottom and
the securing screw of the optical
Tighten the screw to secure the optical
body and the beam splitter. Install the
viewing head on top of the beam splitter
and secure it with Allen screw.
1. Insert the viewing head  into the beam
splitter  and secure it into place using a
2mm Allen key to tighten the screw.
2. Insert the standard connecting tube 
into the beam splitter and secure it into
place using a 2mm Allen key to tighten
the set screw.
3. Remove the rubber plug inserted into the
C-mount on the bottom of the Excelis
camera  revealing the threads. Be
careful not to touch the glass in the
bottom of the camera.
4. Thread the video adapter  into the C-
mount on the bottom of the camera.
5. Insert the video adapter into the standard
connecting tube and secure into place
using a 2mm Allen key to tighten the set
screw.
.
body
