3.2.6

Eavesdropper screen

This screen has been added to show what someone sees when spying the NFC connection. It allows to see the
encrypted data that are exchanged through NFC and what the ST25DV-I2C-DISCO gets after decryption.
The message sent is displayed as well on the screen of the ST25DV-I2C-DISCO board.
UM2575 - Rev 1

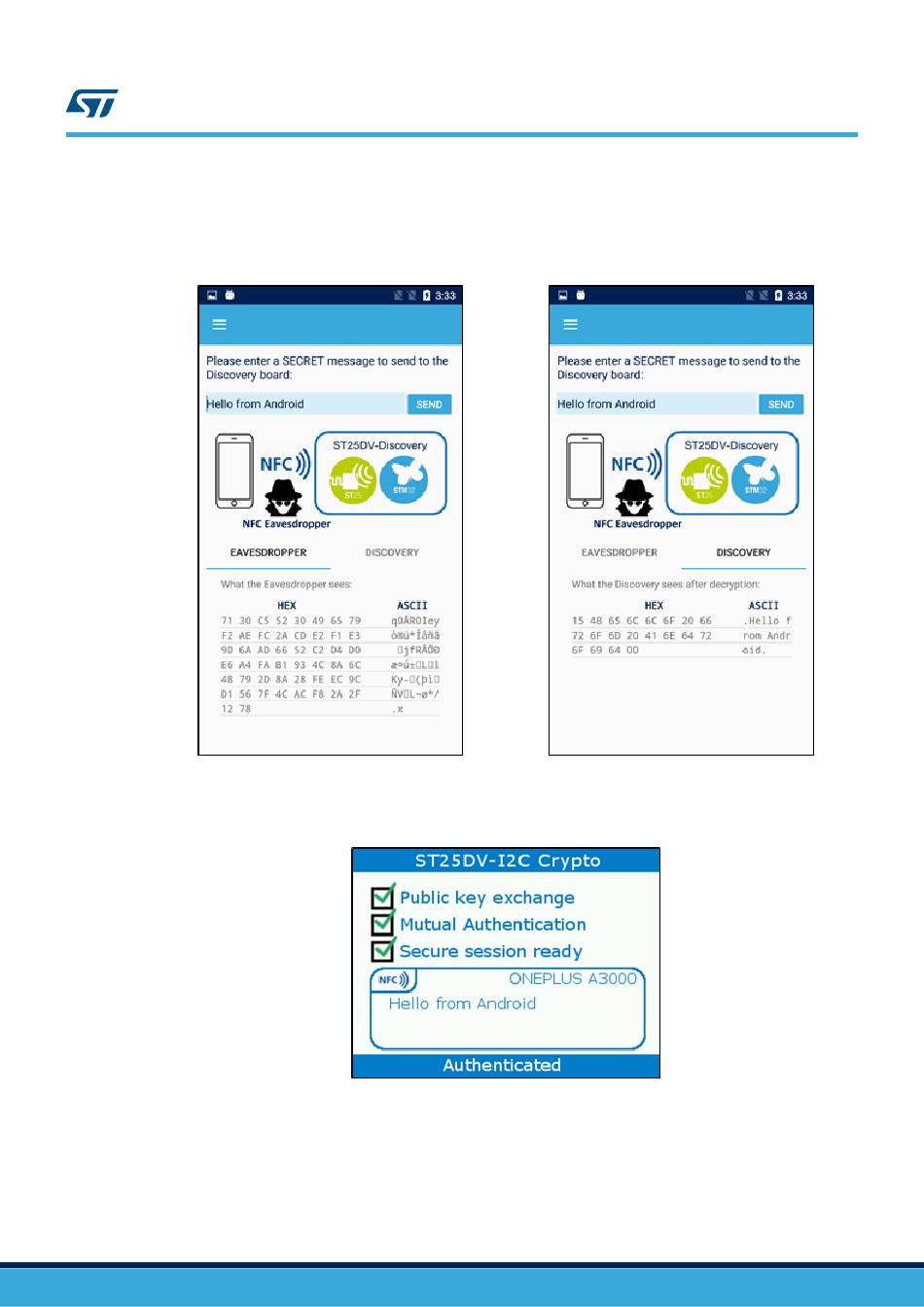

Figure 17. "ST25DV-I2C Crypto Demo" - eavesdropper
Figure 18. "ST25DV-I2C-DISCO Crypto Demo" - displayed message screen
"ST25DV-I2C Crypto Demo" application screen
