- Page 1 4x1 HDMI 2.0 HDR Switch with Audio User's Guide P/N: HDRswitch4P-Aud G4-0084A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included DC5V power adapter only.
- Page 4 Package Contents • 4x1 HDMI 2.0 HDR Switch with Audio • Remote controller • Power adapter • User's guide Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) HDMI cables...

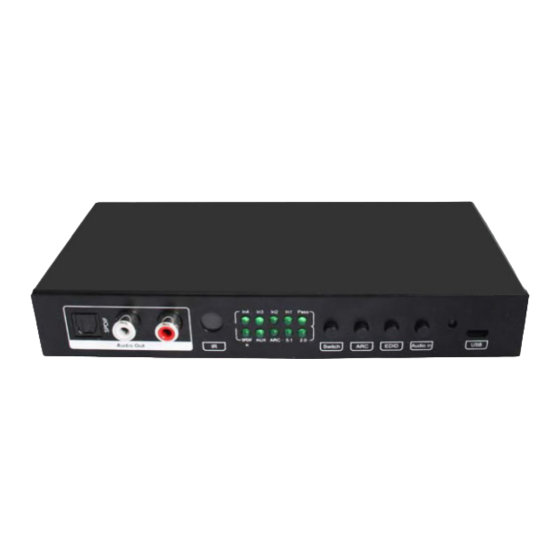

- Page 5 Layout Figure 1: Front Panel Connects to SPDIF Toslink Optical 1. SPDIF Audio Out speakers 2. Analog Audio Out Connects to Analog stereo speakers Receives IR commands from the 3. IR Window included remote controller Displays the active source device 4.
-
Page 6: Remote Controller
Figure 2: Back Panel 1. HDMI Out Connects to your HDMI display 2. HDMI In (x4) Connects to your HDMI source device(s) 3. Analog Audio In Connects to your analog audio source device 4. SPDIF Optical Audio In Connects to your SPDIF Optical source device 5. -
Page 7: Hardware Installation
Hardware Installation Power off all devices including your HDMI source(s) and HDMI display. Connect your HDMI source devices to the Switch's HDMI Input connectors with HDMI cables (HDMI cables not included). Connect your HDMI display to the Switch's HDMI ouput connector with an HDMI cable (HDMI cable not included). -
Page 8: Application Diagram
Application Diagram Note: Only HDMI Input 1 supports CEC ARC Application Diagram... - Page 9 FAQ & Solutions There is no video output or audio and video display is not normal. 1) Check the power adapter connection and make sure the Switch's Power LED is on. 2) Check whether the HDMI cables are connected properly. 3) Check the TV is set to the correct HDMI input.
-
Page 10: Specifications
Specifications Resolution (max) 4K@60Hz YUV 4:4:4 HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / HDCP 1.4 1080P: 20 meters HDMI Cable Length 4K@30Hz: 10 meters 4K@60Hz & HDR: 3 meters Dolby True HD, DTS-HD Audio Format Master Audio Minimum: 254mA Power Consumption Maximum: 383mA Operating Temperature... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
