Pepperl+Fuchs K-System Manual page 23

K-System – Isolated Barriers
Mounting and Installation
Vertical and horizontal mounting
Low heat dissipation allows vertical or horizontal mounting without separation distance.
Operation is guaranteed over the full temperature range of the system in any mounting
direction and without restriction.

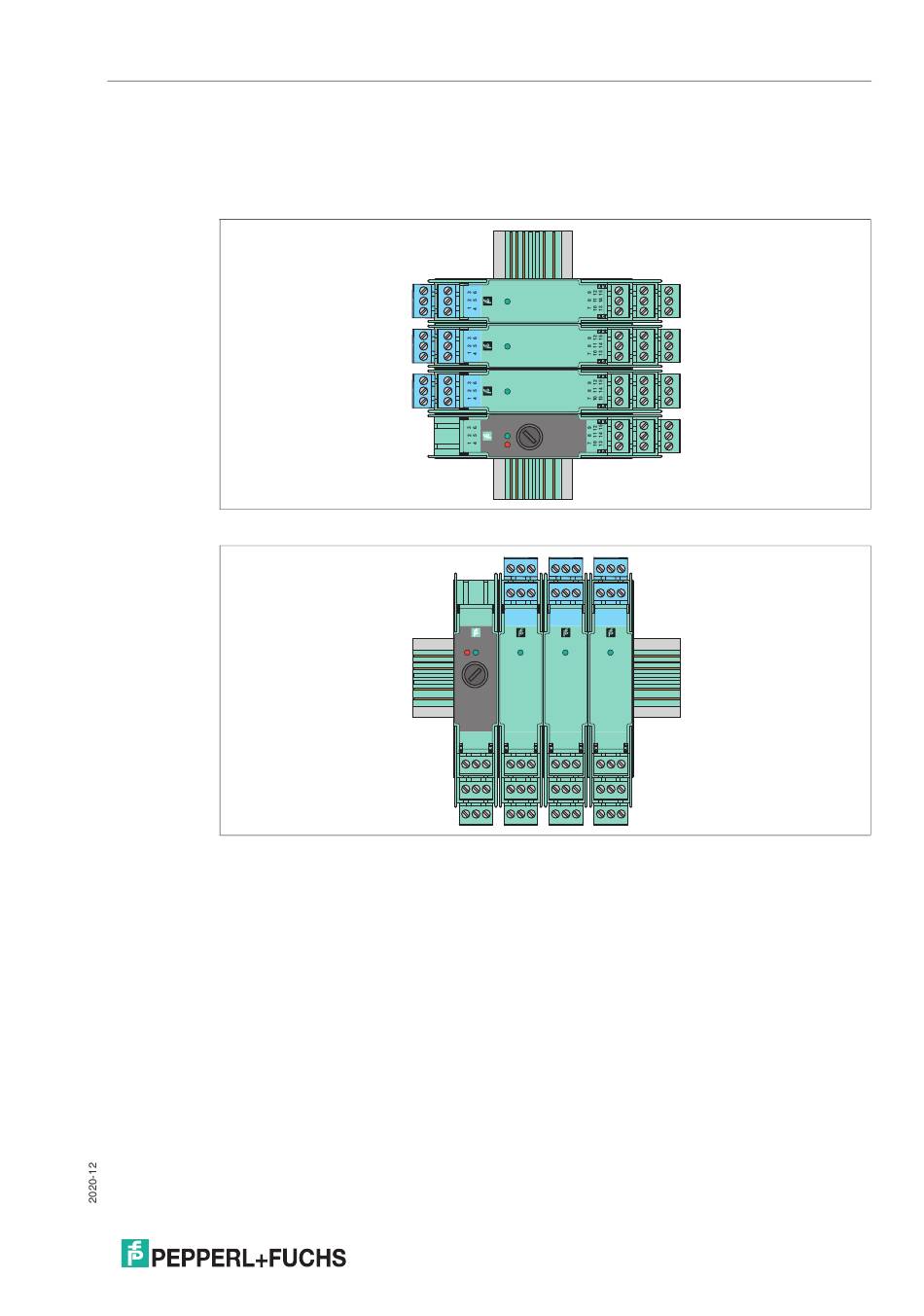

Figure 3.2
Figure 3.3
Vertical mounting without separation distance (group mounting)
1 2
4 5
7 8
10
11
13 14 15
Horizontal mounting without separation distance (group mounting)
3 1 2 3 1 2 3 1 2 3
6 4 5 6 4 5 6 4 5 6
9 7 8 9 7 8 9 7 8 9
10 10 10
12 11 12 11 12 11 12
13 14 15 13 14 15 13 14 15
23
