Product Specifications
KF Device Housing

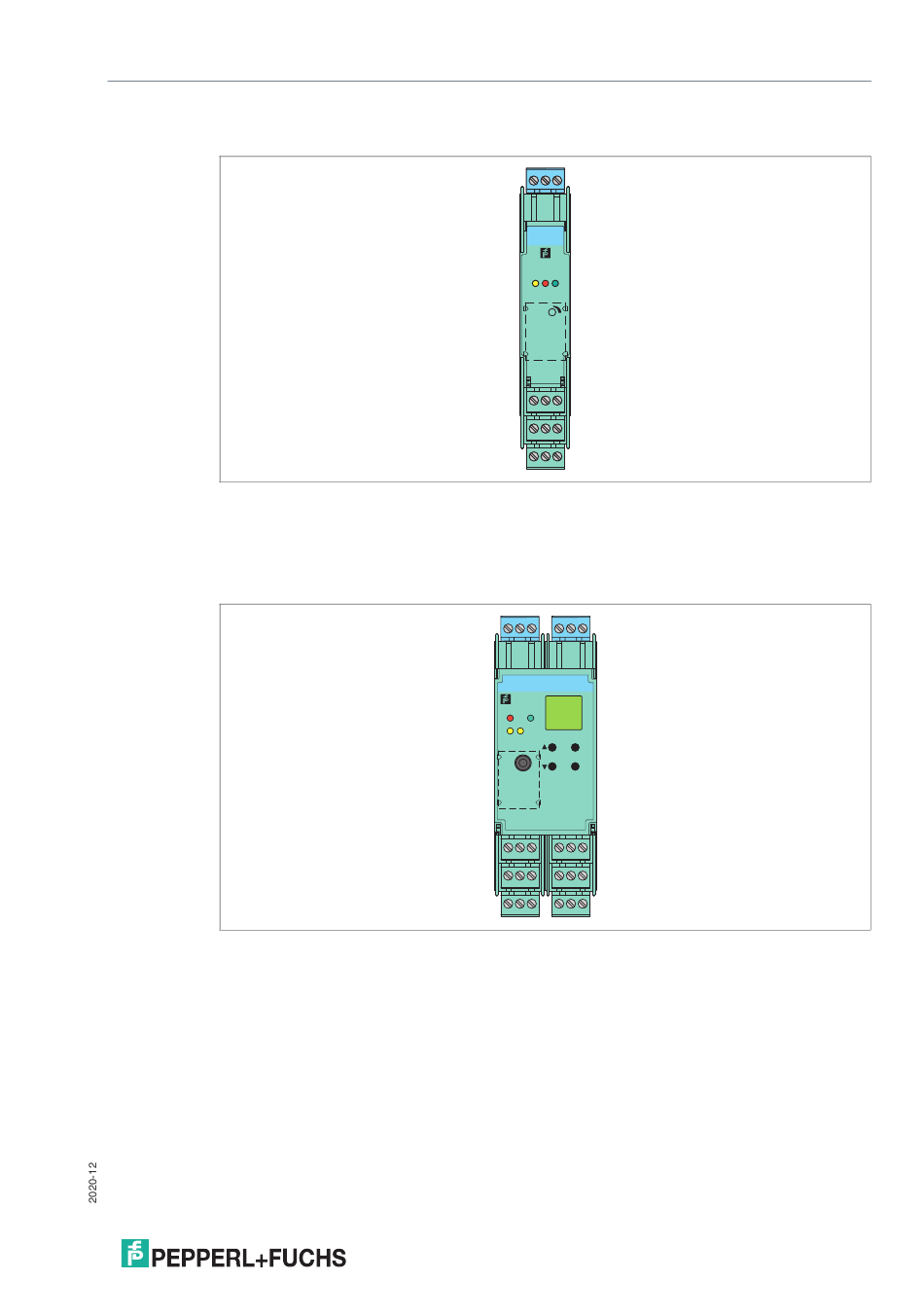

Figure 2.4
Used for high channel density
•
Compact 20 mm housing
•
Packing density from 5 mm per channel
Figure 2.5
Used for applications with high functionality
•
Digital devices monitor speed, direction of rotation, slip, flow rates and time.
•
Analog devices monitor transmitter signals, temperature signals and load cells.
•
Configured using keypad or PACTware
and Configuration Device Type Manager (DTM)"
•
AC/DC wide range supply available
KF device housing (20 mm)
KF device housing (40 mm)
1
2
3
4
5
6
KFD2-ER-Ex1.W.LB
OUT CHK PWR
sens.
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
KFD2-WAC2-
Ex1.D
PWR
FLT
1
2
OUT
ESC
RS232
OK
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
23
TM
software, see also manual "Installation
9
