Housing Styles

Depending on the functionality and application, K-System devices have 3 different housing
widths:
• KC devices with 12.5 mm width
• KF devices with 20 mm width
• KF devices or KH devices with 40 mm width
The 3 housing widths versions have the same system characteristics. All devices
can be mounted on the 35 mm DIN mounting rail or the Power Rail. See chapter 2.9
KC Device Housing
Figure 2.3
Used for high signal integrity
• Compact 12.5 mm housing
• High packing density with single loop integrity
8

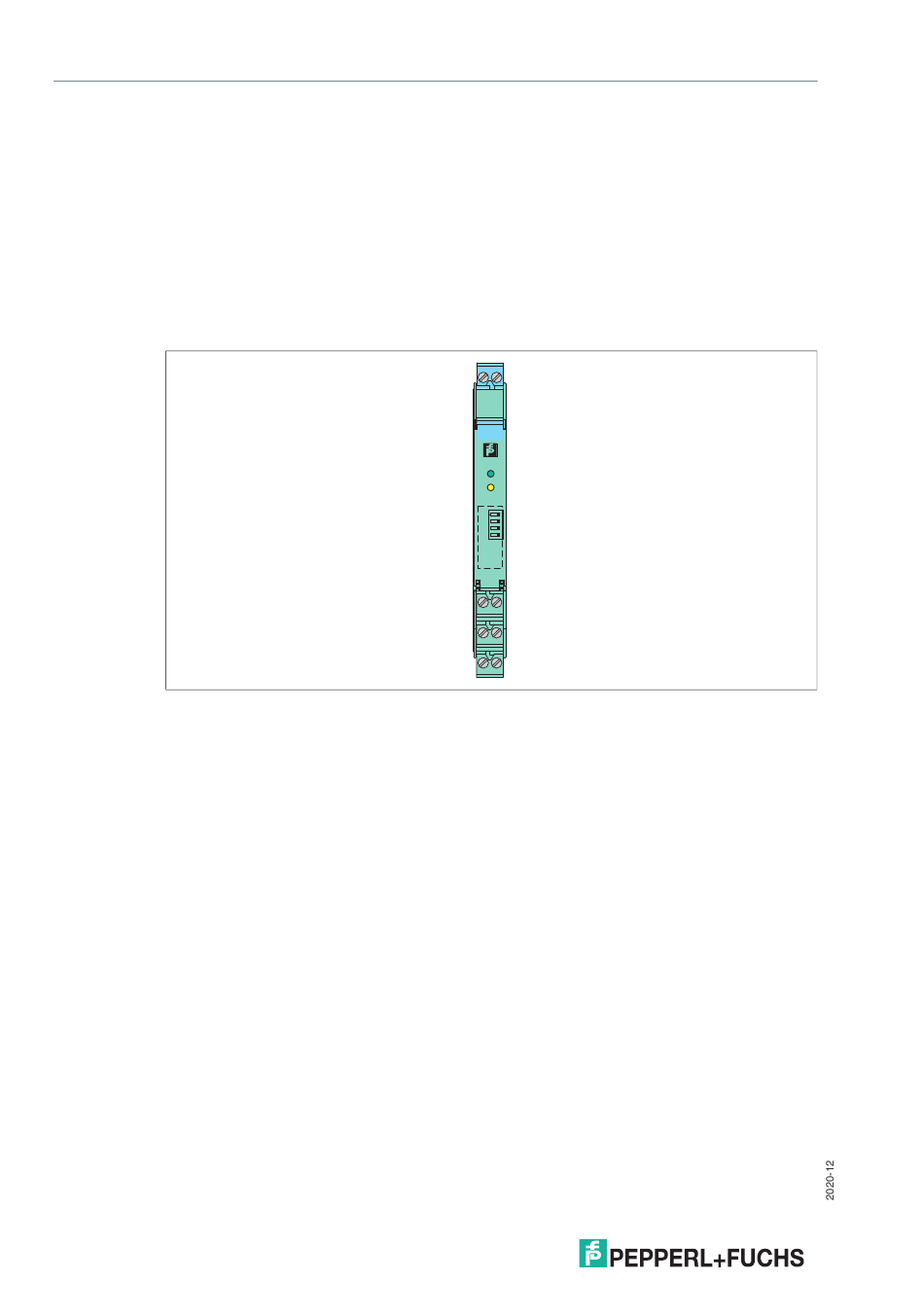

KC device housing (12.5 mm)
1 2
3 4
KCD2-SR-
Ex1.LB
