Jumper and Switch Settings

Before applying power to the CAPA313, please make sure all of the
jumpers and switch are in factory default positions.
Jumper/Switc Description
h
LVDS +3.3V/+5V/+12V Voltage Selection
Default: +3.3V Level
JP1
Restore BIOS Optimal Defaults
Default: Normal Operation
Auto Power On
SSW1
Default: Disable
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

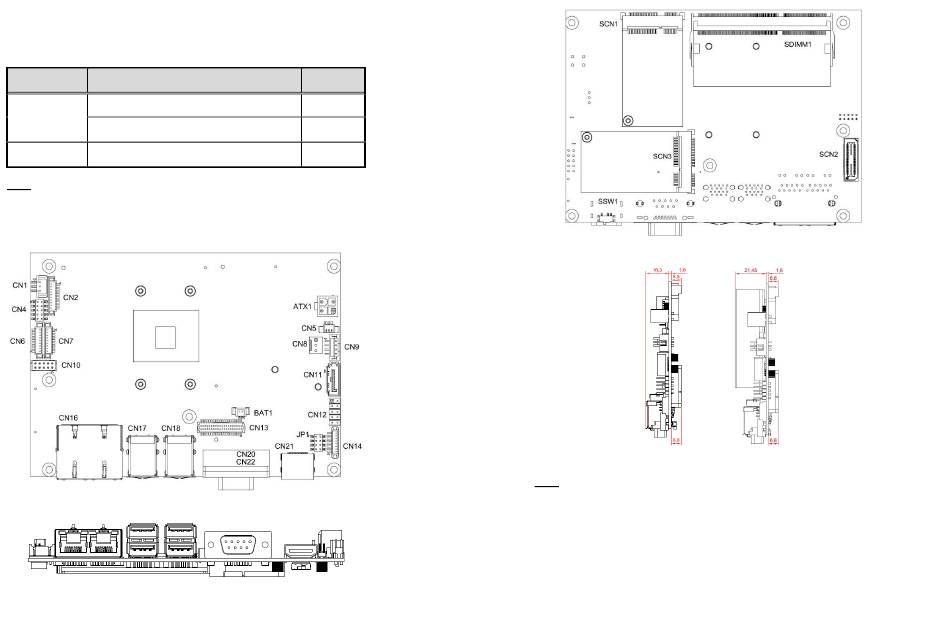

Board Layout

Top View
Side View
2
Setting
2-4 Close
3-5 Close
1-2 Close
9418E313000E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A1 June 2018
Printed in Taiwan
Bottom View
Side View
Note: Please refer to the CAPA313 series product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
