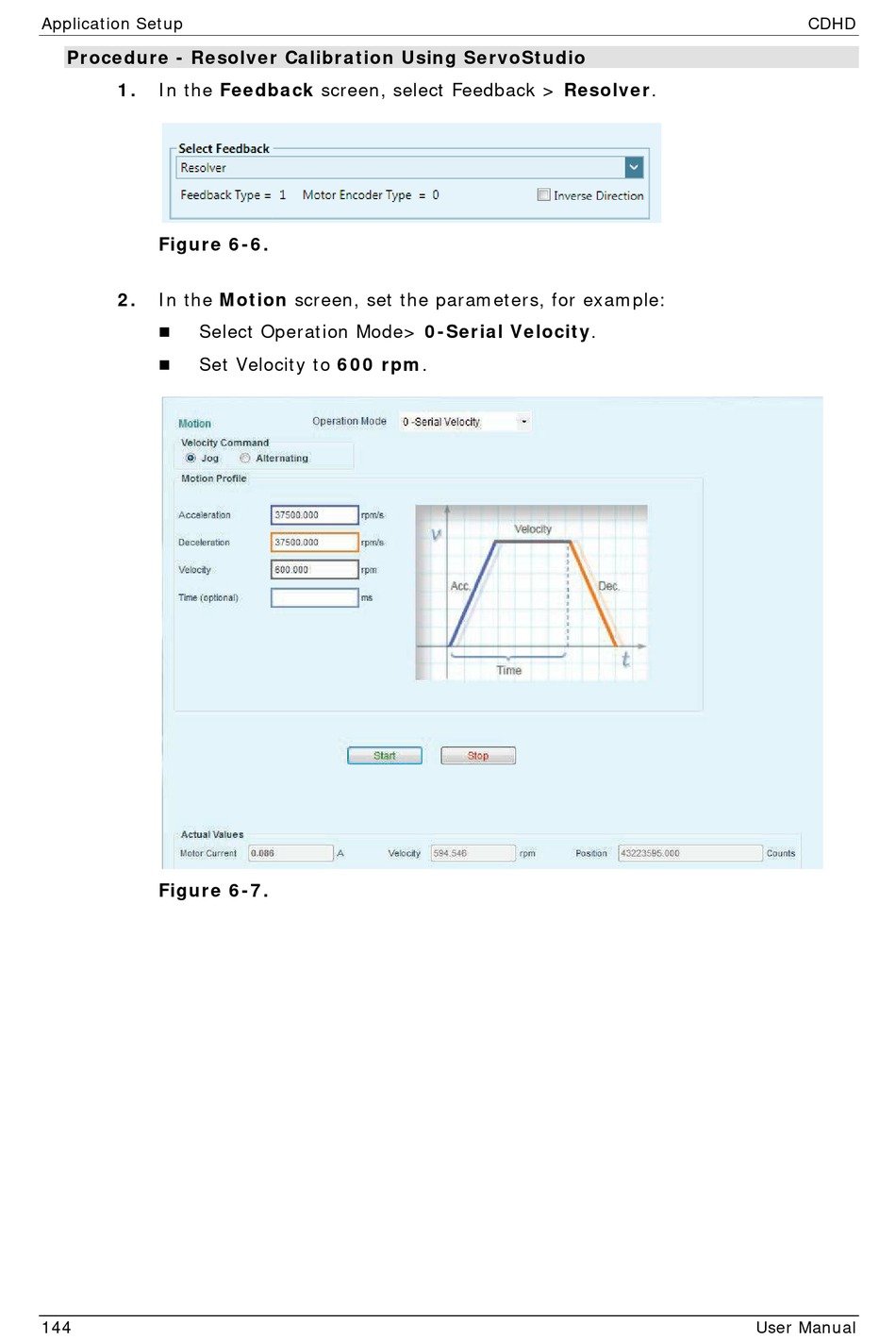

Applicat ion Set up
Pr oce du re - Re solve r Ca libr a t ion Usin g Se rvoSt u dio
I n t he Fee dba ck screen, select Feedback > Resolve r .
1 .
Figu r e 6 - 6 .
I n t he M ot ion screen, set t he param et ers, for exam ple:
2 .
Select Operat ion Mode> 0 - Ser ia l Ve locit y.

Set Velocit y t o 6 0 0 r pm .

Figu r e 6 - 7 .
