CDHD
Ta ble 5 - 4 0 .
I t e m
Manufact urer
Housing and
6- pin crim p
Spring t erm inal
Wire gauge

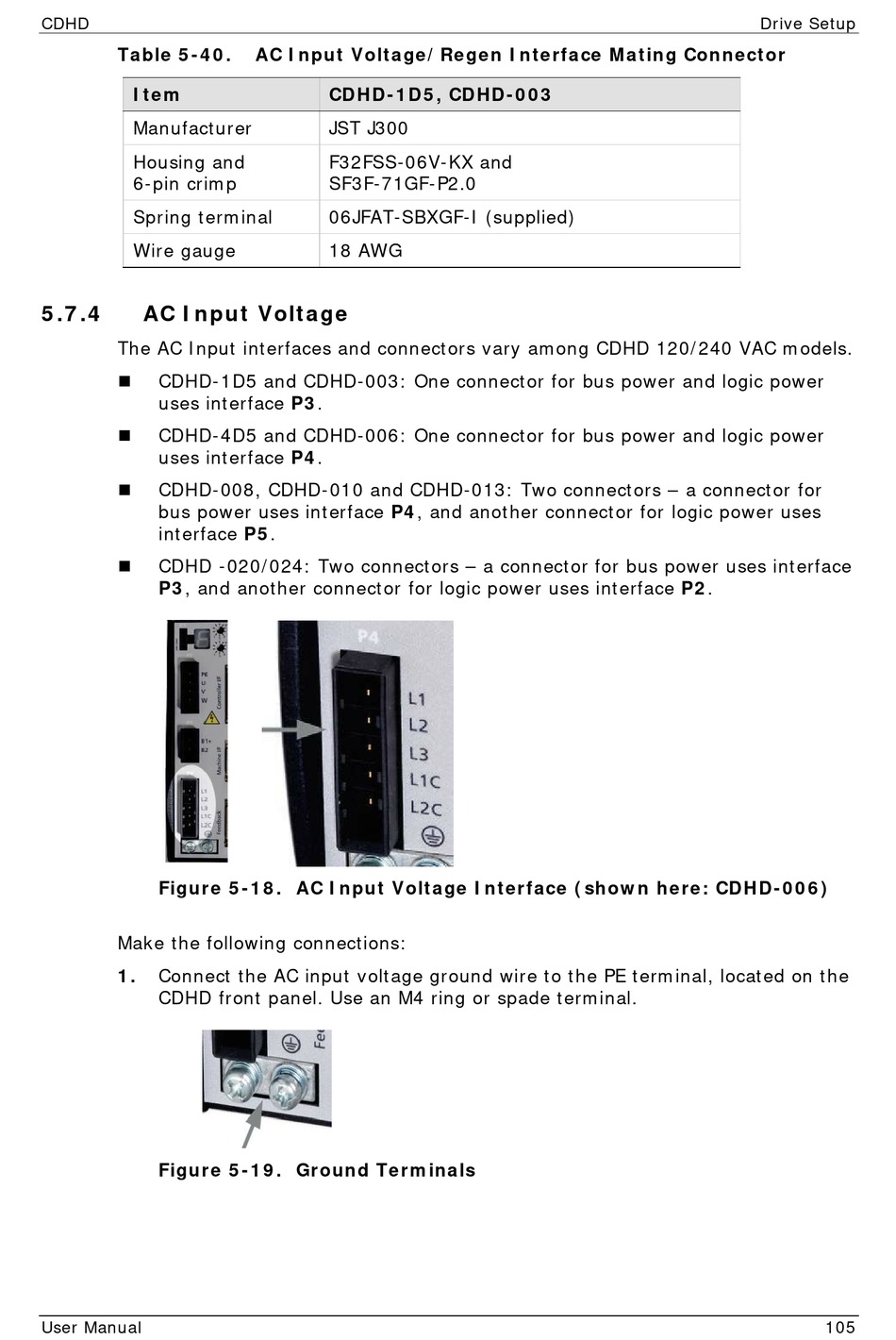

5 .7 .4 AC I n pu t Volt a ge
The AC I nput int erfaces and connect ors vary am ong CDHD 120/ 240 VAC m odels.
CDHD- 1D5 and CDHD-003: One connect or for bus power and logic power

uses int erface P3 .
 CDHD- 4D5 and CDHD-006: One connect or for bus power and logic power
uses int erface P4 .
CDHD- 008, CDHD- 010 and CDHD-013: Two connect ors – a connect or for

bus power uses int erface P4 , and anot her connect or for logic power uses
int erface P5 .
 CDHD - 020/ 024: Two connect ors – a connect or for bus power uses int erface
P3 , and anot her connect or for logic power uses int erface P2 .
Figu r e 5 - 1 8 . AC I n pu t Volt a ge I n t er face ( sh ow n h e re : CD H D - 0 0 6 )
Make t he following connect ions:
Connect t he AC input volt age ground wire t o t he PE t erm inal, locat ed on t he
1 .
CDHD front panel. Use an M4 ring or spade t erm inal.
Figu r e 5 - 1 9 . Gr oun d Te r m ina ls
User Manual
AC I n pu t Volt a ge / Re ge n I n te rfa ce M a t in g Con n ect or
CD H D - 1 D 5 , CD HD - 0 0 3
JST J300
F32FSS-06V- KX and
SF3F-71GF- P2.0
06JFAT-SBXGF-I (supplied)
18 AWG
Drive Setup
105
