Elite Screens Evanesce Tension Series User Manual
In-ceiling electric motorized front projection screen
Hide thumbs
Also See for Evanesce Tension Series:
- User manual (11 pages) ,
- Adjustment instructions (4 pages) ,
- User manual (13 pages)
Related Manuals for Elite Screens Evanesce Tension Series
Summary of Contents for Elite Screens Evanesce Tension Series

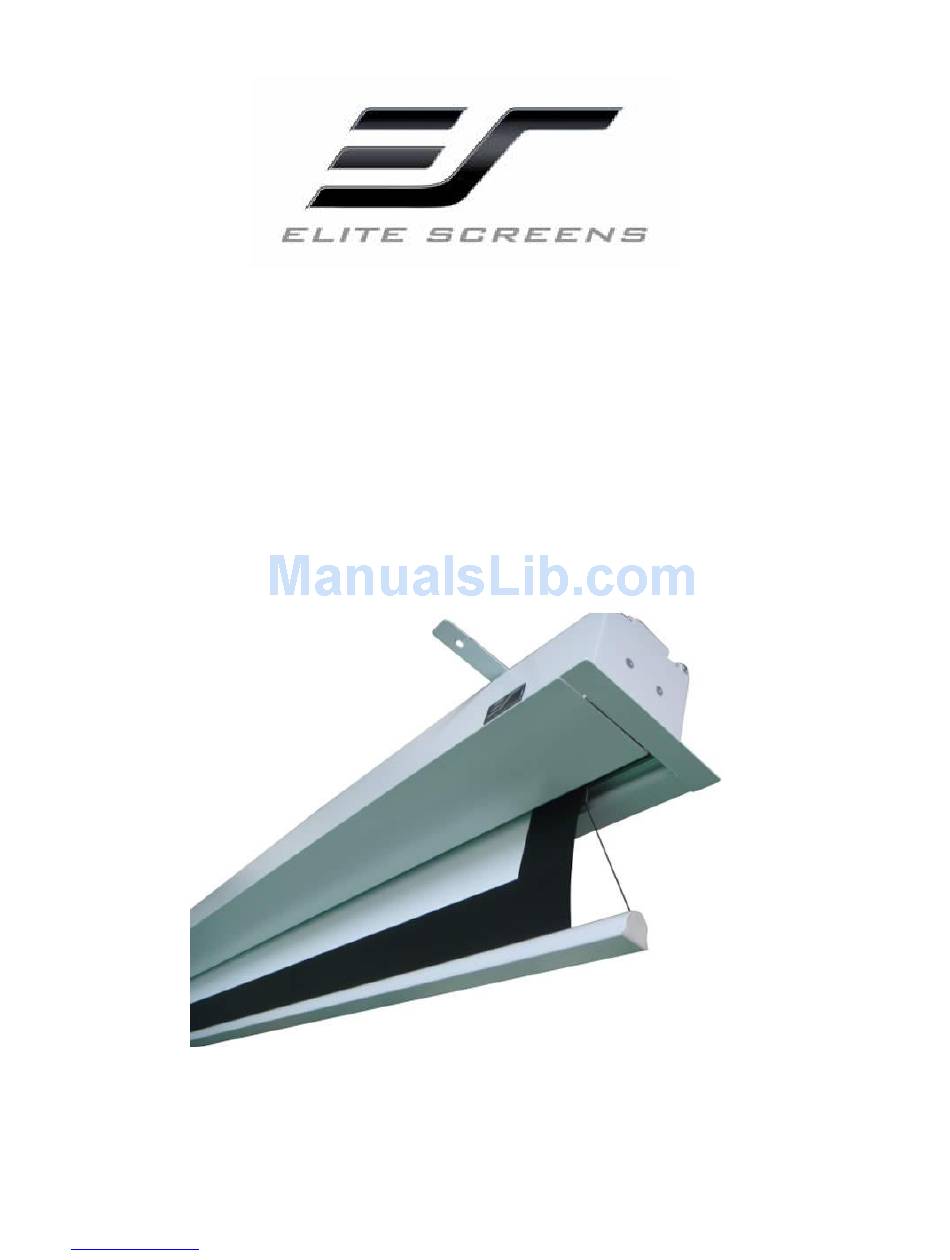

- Page 1 In-Ceiling Electric Motorized Front Projection Screen Evanesce Tension Series User’s Guide Rev.122411-AS www.elitescreens.com info@elitescreens.com...
- Page 2 Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
-
Page 3: Installation Warning
Please consult a professional installation company for further installation and safety advice. The installer must insure that proper mounting hardware is used to provide adequate strength suitable for the installation. Elite Screens is not liable for any faulty installations. For limit adjustment instructions, please contact our Technical Support Department at (877) 511-1211 Ext. - Page 4 Accessories for Evanesce Tension Series Please make sure all accessories listed below are included before proceeding. IR Remote RF Remote 3 Way Wall Switch IR Eye Receiver AAA Batteries Red+ Green- 12V Trigger In-Wall RJ-45 Module Bubble Level Rev.122411-AS www.elitescreens.com...
- Page 5 Control System for Evanesce Tension Series RJ-45 INPUT FOR 5-12V TRIGGER 1. 5-12V Trigger: The built-in 5-12V trigger input allows your screen to synchronize its drop & rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when the projector powers down.
- Page 6 Elite Electric Motorized Screen Steps to attach Elite Screens Motorized Screen to your local wall switch 1. Attach Elite Screens ZIW-Module (in-wall switch module) to your local wall switch as shown in diagram above. 2. Attach an RJ-45 Ethernet cable (not included) to the ZIW-Module and the other end to the RJ-45 input on your Elite electric screen.
-
Page 7: Installation Instructions
F. Hex Nut G. Suspension Bar J- Hook Installation Instructions Please consult a professional installer. Elite Screens is not liable for faulty installations. Power 1. The Evanesce Series includes a 3-Prong Power Cord for use in a non-concealed power outlet. If your installation will be entirely concealed (including power outlet), Elite Screens strongly recommends a hardwire connection. - Page 8 Assembly 2. Insert the Hex Screw (B) through the Hanging Bracket’s (C) screw hole and secure with the Case Rail Nut (A). Slide the Hanging Bracket (C) through the railing on top of the case. 3. Place the Suspension Bar (D) on the Hanging Bracket (C) and align with the hole as shown below. Secure the Suspension Bar (D) with the Hex Screw (B), Washer (E) and the Hex Nut (F).
- Page 9 Optional Suspension Bar J-Hook (G) 1. Attach the Suspension Bar J- Hook (G) to the bottom of the Suspension Bar (D) and secure with the Hex Screw (B), Washer (E) and Hex Nut (F). 2. Attach the Suspension Bar J-Hook (G) to the Hanging Bracket (C) as shown in figure below. Install the Suspension Bars (D) to your ceiling according to their distance.
- Page 10 Optional Installation (parts & hardware not included) 1. Place the Hanging Bracket (C) in the desired location on the screen’s housing and measure the distance as shown below. (L = Distance) 2. Mark the location of where the screen will be installed according to the distance (L) and then secure the bolt to the ceiling.
- Page 11 The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
-
Page 12: Limited Warranty Policy
: If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
