Elite Screens Saker Plus Series Replacement Instructions

Circuit board

Circuit Board Replacement Instructions

for Saker Plus/Evanesce Plus/ Evanesce Tab-Tension/Kestrel Stage Series

For technical support or further assistance, call 877-511-1211 x604

ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the

version number and the Voltage of the screen. EliteProAV™ does not recommend making unnecessary

adjustments to the screen, as improper adjustments will damage the unit and void your warranty.

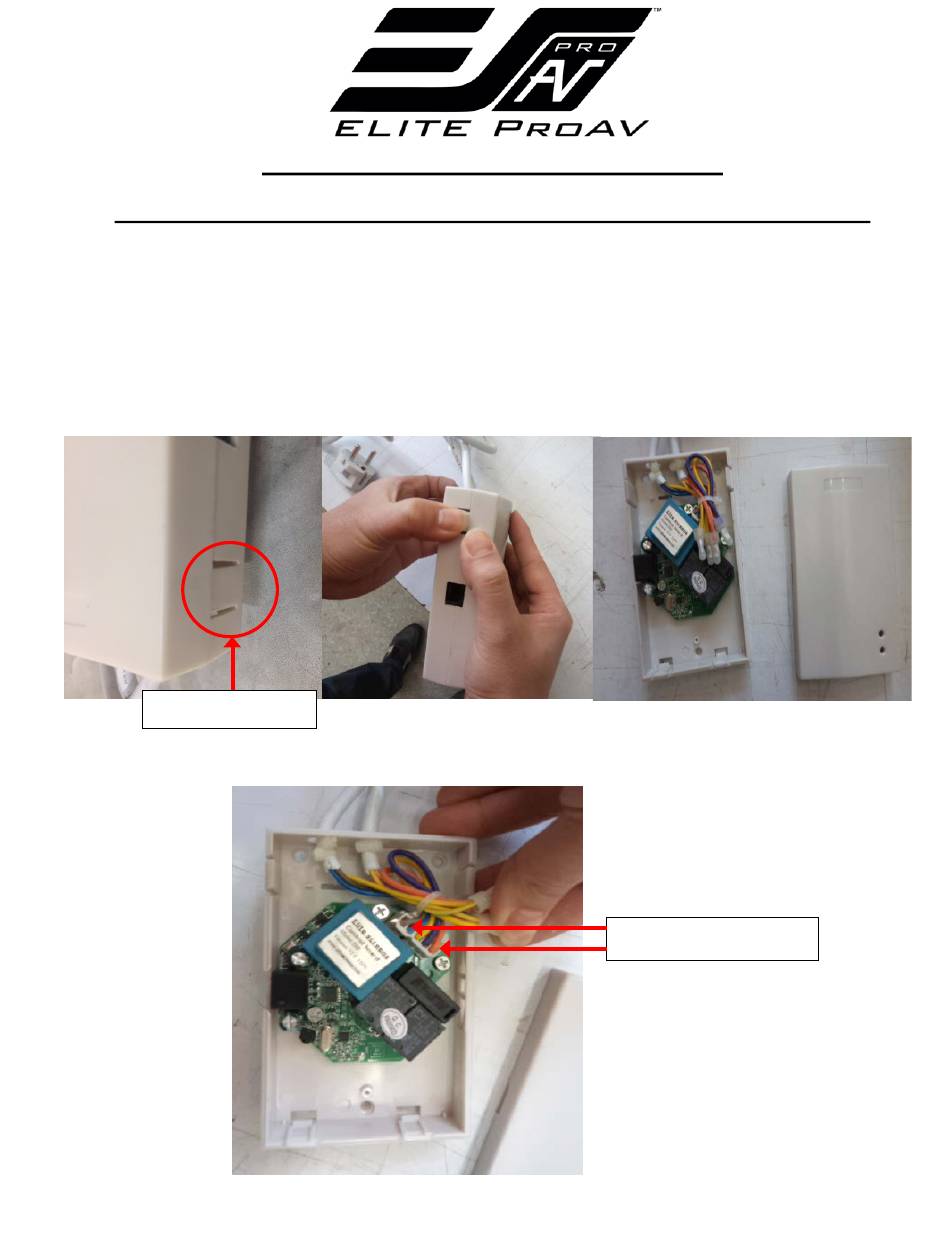

1. Open the control box and remove the cover. Press in the release tabs on both sides and pull to

remove.

Release tabs.

2. Press in the clips on the white terminals, then carefully pull out to remove the two terminals.

Two white terminals.

Updated 2/28/2017

www.eliteproav.com

Table of Contents

Do you have a question about the Saker Plus Series and is the answer not in the manual?

Page 1 Circuit Board Replacement Instructions for Saker Plus/Evanesce Plus/ Evanesce Tab-Tension/Kestrel Stage Series For technical support or further assistance, call 877-511-1211 x604 ATTENTION: Please make sure the version number and the Voltage of the circuit board matches the version number and the Voltage of the screen. EliteProAV™ does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit and void your warranty.
Page 2 3. Remove the three screws that secure the circuit board with a Phillips head screwdriver. Set the screws aside to later secure the new circuit board. Three screws. Finished disassembly. 4. Utilize the saved screws to secure the new circuit board in same location of the previous. Three screw locations.
Page 3 6. Replace circuit board cover. Be sure to listen for a "click" to insure the cover is secure. Finished assembly. For a local EliteProAV™ contact or Technical Support, please visit www.eliteproav.com Updated 2/28/2017 www.eliteproav.com...
