IES6210 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1.
Industrial Ethernet switch
3.
Quick installation guide
5.
DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

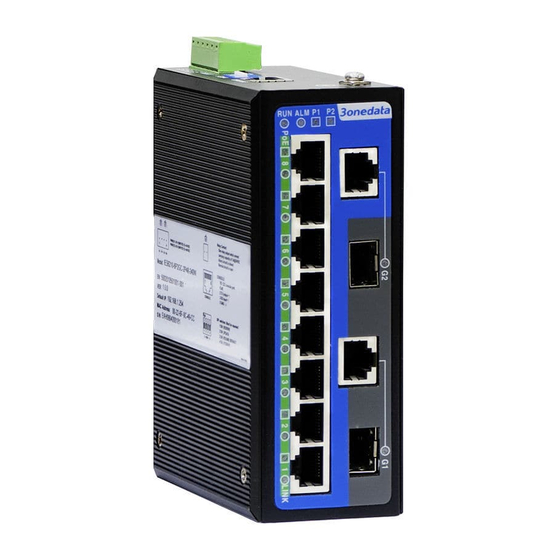

This series are managed DIN-Rail industrial Ethernet switches.
Models as follows:
Model I. IES6210-8T2GC-2P48 (8 100M copper ports + 2
Gigabit Combo ports + 2 48VDC power supplies)
Model II. IES6210-8T2GC-P220 (8 100M copper ports +2
Gigabit Combo ports +1 220VAC power supply)
Model III. IES6210-4T2GC-2P48 (4 100M copper ports + 2
Gigabit Combo ports + 2 48VDC power supplies)
Model IV. IES6210-4T2GC-P220 (4 100M copper ports + 2
Gigabit Combo ports + 1 220VAC power supply)
Model V. IES6210-8P2GC-2P24-120W (8 100M POE copper
ports +2 Gigabit Combo ports +2 24VDC power
supplies +120W POE power)
Model VI. IES6210-8P2GC-2P48-120W (8 100M POE copper
ports +2 Gigabit Combo ports +2 48VDC power
supplies +120W POE power)
Model VII. IES6210-8P2GC-2P48-240W (8 100M POE copper
ports + 2 Gigabit Combo ports + 2 48VDC power
supplies +240W POE power)
Model VIII.
copper ports +2 Gigabit Combo ports +2 24VDC
power supplies + 60W POE power)
Model IX. IES6210-4P2GC-2P24-120W (4 100M POE copper
ports + 2 Gigabit Combo ports +2 24VDC power
Nanshan
District,
supplies + 120W POE power)
Model X. IES6210-4P2GC-2P48-120W (4 100M POE copper
ports +2 Gigabit Combo ports +2 48VDC power
supplies + 120W POE power)

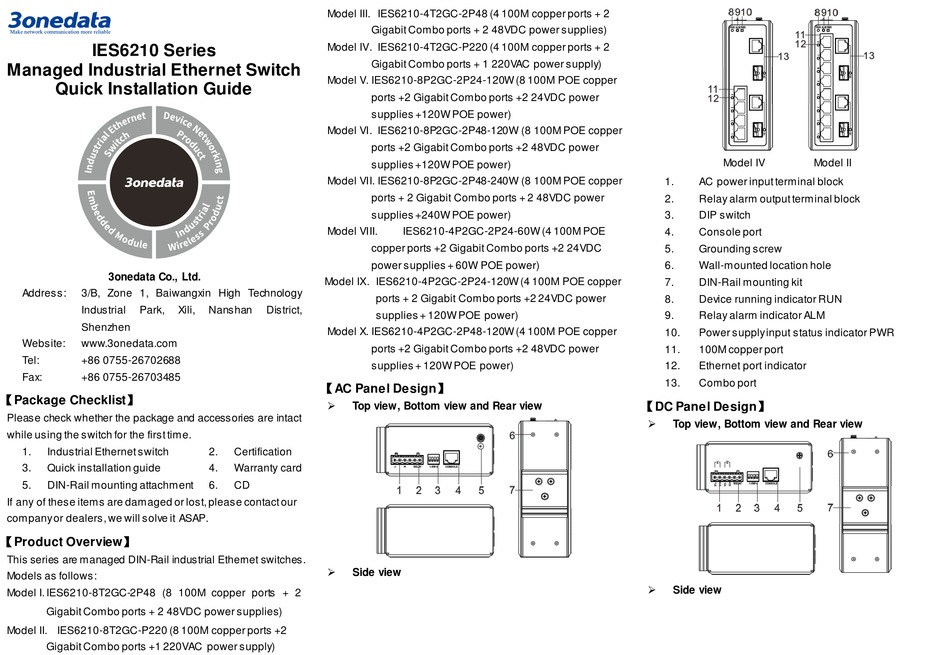

【AC Panel Design】
Top view, Bottom view and Rear view
2.
Certification
4.
Warranty card
6.
CD
Side view
IES6210-4P2GC-2P24-60W (4 100M POE
Model IV
Model II
1.
AC power input terminal block
2.
Relay alarm output terminal block
3.
DIP switch
4.
Console port
5.
Grounding screw
6.
Wall-mounted location hole
7.
DIN-Rail mounting kit
8.
Device running indicator RUN
9.
Relay alarm indicator ALM
10.
Power supply input status indicator PWR
11.
100M copper port
12.
Ethernet port indicator
13.
Combo port
【DC Panel Design】
Top view, Bottom view and Rear view
Side view
