IES6210 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package Checklist
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch 2. Certification
3. DIN-Rail mounting attachment 4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview

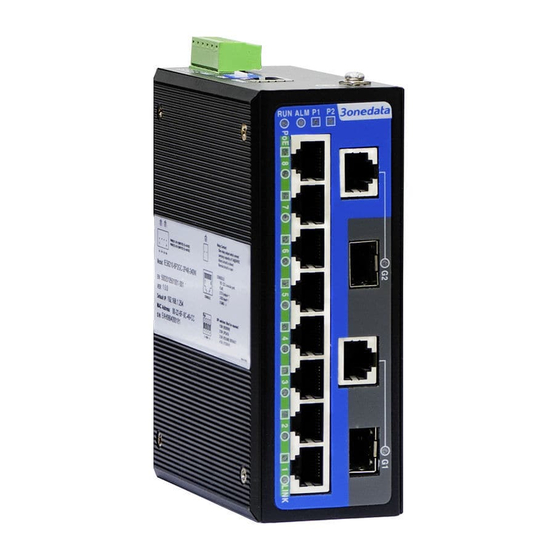

This series are managed DIN-Rail industrial Ethernet switches.
Models as follows:
Model I. IES6210-8T2GC-2P48 (8 100M copper ports + 2
Gigabit Combo ports + 2 48VDC power supplies)
Model II. IES6210-8T2GC-P220 (8 100M copper ports +2
Gigabit Combo ports +1 220VAC power supply)
Model III. IES6210-4T2GC-2P48 (4 100M copper ports + 2
Gigabit Combo ports + 2 48VDC power supplies)
Model IV. IES6210-4T2GC-P220 (4 100M copper ports + 2
Gigabit Combo ports + 1 220VAC power supply)
Model V. IES6210-8P2GC-2P24-120W (8 100M POE copper
ports +2 Gigabit Combo ports +2 24VDC power
supplies +120W POE power)
Model VI. IES6210-8P2GC-2P48-120W (8 100M POE copper
ports +2 Gigabit Combo ports +2 48VDC power
supplies +120W POE power)
Model VII. IES6210-8P2GC-2P48-240W (8 100M POE copper
ports + 2 Gigabit Combo ports + 2 48VDC power
supplies +240W POE power)
Model VIII. IES6210-4P2GC-2P24-60W (4 100M POE
copper ports +2 Gigabit Combo ports +2 24VDC
power supplies + 60W POE power)
Model IX. IES6210-4P2GC-2P24-120W (4 100M POE copper
ports + 2 Gigabit Combo ports +2 24VDC power
supplies + 120W POE power)
Nanshan
District,
Model X. IES6210-4P2GC-2P48-120W (4 100M POE copper
ports +2 Gigabit Combo ports +2 48VDC power
supplies + 120W POE power)

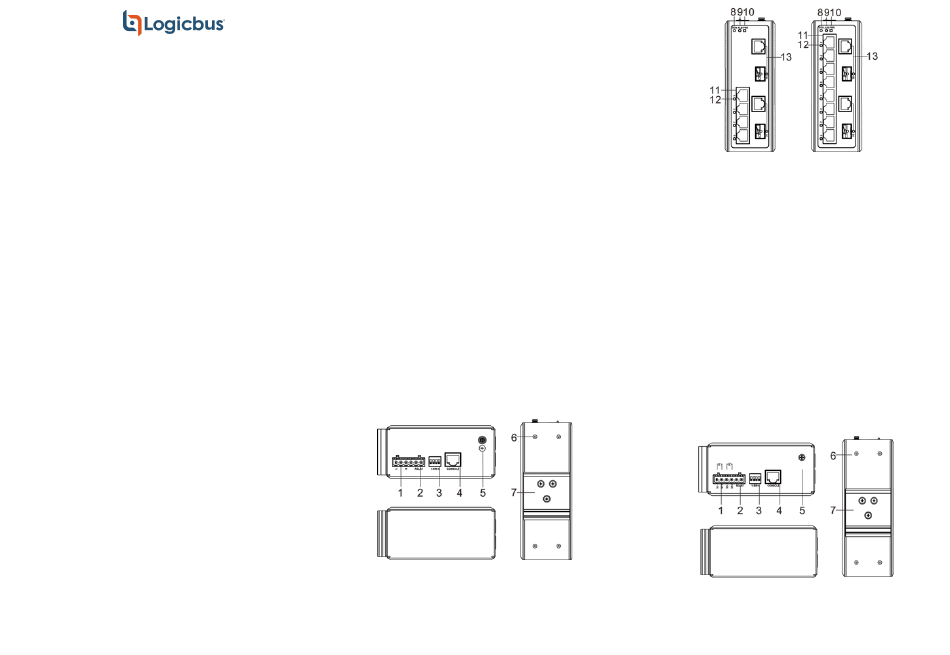

AC Panel Design
Top view, Bottom view and Rear view
Side view
Model IV Model II
1.
AC power input terminal block
2.
Relay alarm output terminal block
3.
DIP switch
4.
Console port
5.
Grounding screw
6.
Wall-mounted location hole
7.
DIN-Rail mounting kit
8.
Device running indicator RUN
9.
Relay alarm indicator ALM
10.
Power supply input status indicator PWR
11.
100M copper port
12.
Ethernet port indicator
13.
Combo port
DC Panel Design
Top view, Bottom view and Rear view
Side view
Advertisement
Related Manuals for 3onedata IES6210 Series
Summary of Contents for 3onedata IES6210 Series
- Page 1 Model III. IES6210-4T2GC-2P48 (4 100M copper ports + 2 Gigabit Combo ports + 2 48VDC power supplies) Model IV. IES6210-4T2GC-P220 (4 100M copper ports + 2 IES6210 Series Gigabit Combo ports + 1 220VAC power supply) Managed Industrial Ethernet Switch Model V.
- Page 2 the top into DIN-Rail. Tips: Insert a little to the bottom, lift upward and then insert to the top. Check and confirm the product is firmly installed on DIN-Rail, then mounting ends. Disassembling DIN-Rail Device power off. After lift the device upward slightly, first shift out Model III Model I the top of DIN-Rail mounting kit, then shift out the bottom of DIN-Rail, disassembling ends.
- Page 3 Power input voltage of model VI model VIIand model X: Definition Operation inactive. 48VDC, power input voltage of model I and model III: 48VDC turn off the DIP switch. POE port supply electricity (12~48VDC). Reserved for other devices normally POE (1-4/8) AC power supply 220VAC Set the DIP switch to ON, the POE is disabled or...
- Page 4 “admin”. Power supply input voltage: This product must not be disposed of with other commercial If the username or password is lost, user can restore it to waste. 48VDC, 24VDC, 220VAC Input power supply factory settings via device DIP switch or management Users’...
