IES2300SL Series
Unmanaged Industrial Ethernet
Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili, Nanshan District, Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
Package Checklist
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet 2. DIN-Rail mounting
switch attachment
3. Certification 4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview
This series of product is Gigabit unmanaged DIN-Rail industrial
Ethernet switch. For convenience, the products of this series
adopt the following number on the left in this guide, please
affirm the number of your product.
Model I. IES2300SL-5GT-2LV (5 Gigabit copper ports,
12/24/48VDC redundant power supply input).
Model II. IES2300SL-8GT-2LV (8 Gigabit copper ports
(two-row RJ45), 12/24/48VDC redundant power
supply)
Model III. IES2301SL-8GT-2LV (8 Gigabit copper ports
(single-row RJ45), 12/24/48VDC redundant power
supply)
Model IV. IES2300SL-16GT-2LV (16 Gigabit copper ports,
12/24/48VDC redundant power supply input).
Panel Design
Top view, bottom view and rear view
Model I
Model II
Model III, Model IV

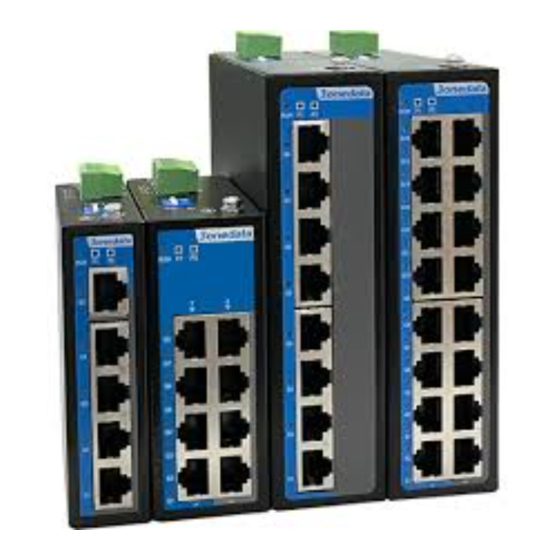

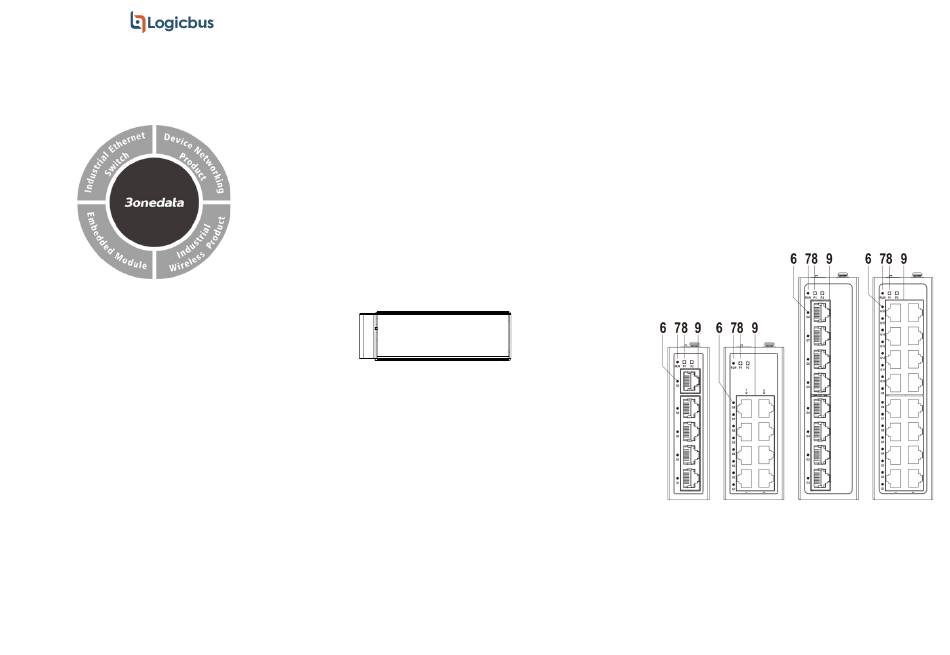

Front view
Model I Model II Model III Model IV
1. Terminal blocks for power input (P1-P2)
2. DIP switch
3. Grounding screw
5. Location hole for wall-mounting panel
6. Ethernet port indicator (G1-G5/G8/G16)
7. Running indicator (RUN)
