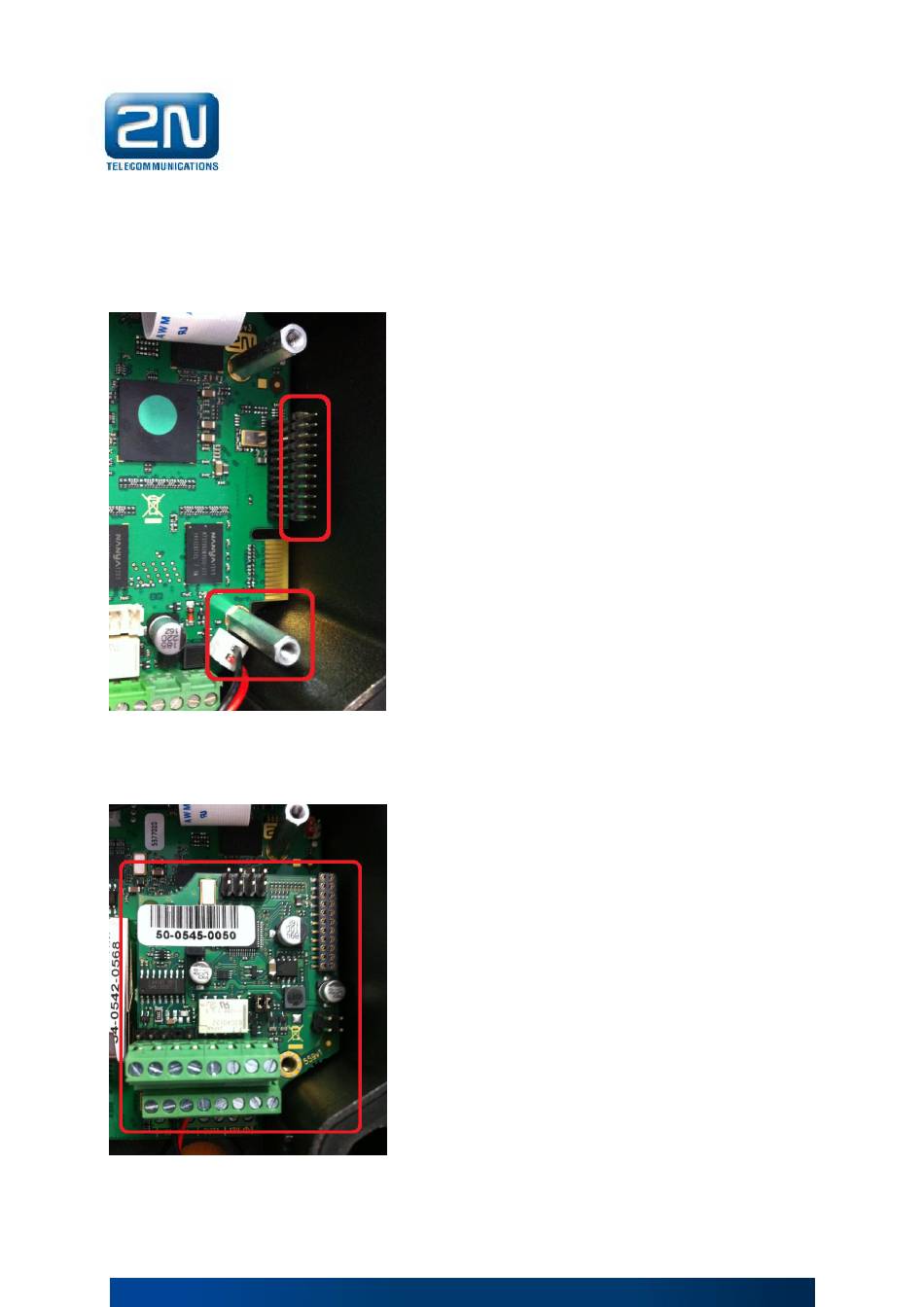

3. Remove screw stick and replace it by smaller one which you will find attached in box,
see (Pic. 2). After replacing of smaller screw stick (Pic. 3) place RFID card
reader/Additional relay to the connector (Pic. 5).
Pic. 5
4. In the (Pic. 6) you can see already placed RFID card reader (Additional relay can be
also used!!!).
Pic. 6
