- Page 1 4x4 4K HDMI 2.0 Matrix - HDCP 2.2 MX44AB-V2 User Manual...
-
Page 2: Table Of Contents
Application Diagram........10 Do not substitute or use any other power supply other than the enclosed unit, or a Specifications...........11 Blustream approved replacement. Do not disassemble Blustream units Package Contents........11 for any reason. Doing so will void the manufacturer’s warranty. Maintenance ..........11 RS-232 and Telnet Commands .....12... -
Page 3: Introduction

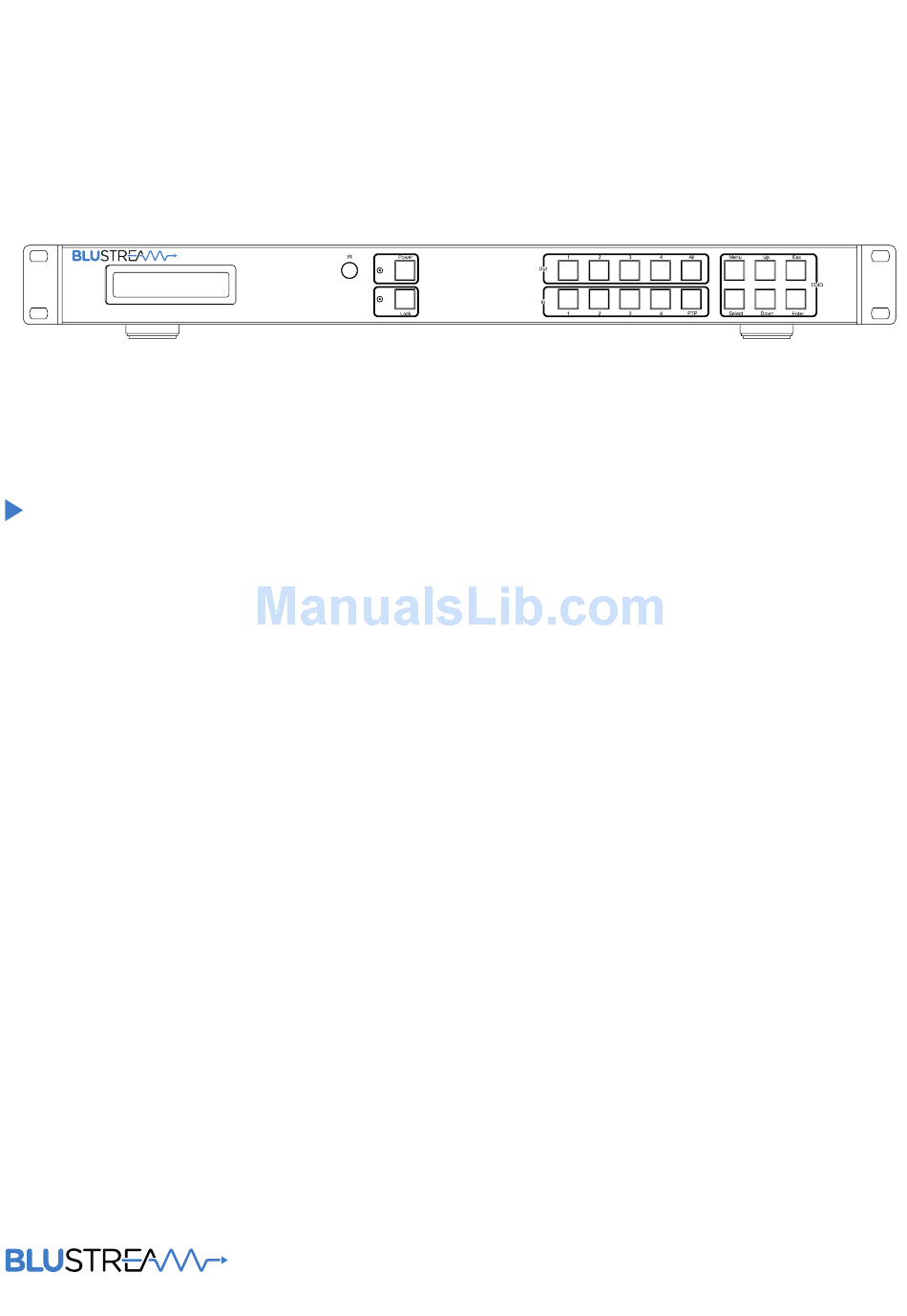

USER MANUAL Introduction Our MX44AB-V2 4K HDMI matrix individually distributes four HDMI sources to four displays. This enables all sources to be viewed seamlessly as required within a matrix configuration. The unit transmits all HDMI 2.0 resolutions up to and including 4K with HDCP 2.2. -
Page 4: Panel Descriptions
RS-232 (DB9 female) - serial cable only. Connect to control IR jack input for routed IR control of connection enabling external third processor or Blustream 5V IR receiver sources party set-up & control of the matrix Power port - use supplied 12V DC... -
Page 5: Control Ports
‘Straight’ RS-232 cable or ‘Null-modem’ type. Audio Breakout The MX44AB-V2 Matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital 2.0 Matrix - HDCP 2.2 outputs. Extracted audio will be concurrent with the corresponding HDMI video output. -
Page 6: Matrix Front Panel Control
MX44AB-V2 USER MANUAL Matrix Front Panel Control Front Panel Display - Input/Output selection The following display shows current source input selection per zone output. To change input selection first press ‘OUTPUT’ button (1-4) Press desired ‘INPUT’ button (1-4) 1 2 3 4... -
Page 7: Ir Distribution
IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use supplied Blustream IRCAB cable for IR conversion. Each Blustream Matrix and HDBaseT receiver is supplied with all necessary IR hardware required and includes: IR Emitter - IR1 &... -
Page 8: Remote Control Description
Remote Control Description OUTPUT AND INPUT SELECTION EDID SET UP Selects the zone OUTPUT you wish to The MX44AB-V2 provides a change the source on (Numbers 1 - 4 POWER comprehensive range of EDID settings. correspond to the zone outputs 1 - 4) -
Page 9: Edid Control
Using Supplied Blustream Matrix IR Remote Control (For further details see page 9) Using dip-switches on the rear panel of the MX44AB-V2 Matrix. Please see below table for global EDID settings. *Note - Once dip-switch settings have been made the MX44AB-V2 should be power cycled for settings to be applied. -
Page 10: Application Diagram
MX44AB-V2 USER MANUAL Link to source Link to source Link to source Link to source Link to control device Link to control device Link to control device Link to control device www.blustream.co.uk... -
Page 11: Specifications
• Operating temperature: 32°F to 104°F (0°C to 40°C) • Storage temperature: -4°F to 140°F (-20°C to 60°C) • Power supply: 12V/3A DC, screw type connector Package Contents • 1 x MX44AB-V2 • 1 x 12V/3A DC power supply • 1 x IR Remote control •... -
Page 12: Rs-232 And Telnet Commands
USER MANUAL RS-232 and Telnet Commands The Blustream MX44AB-V2 can be controlled via serial and TCP/IP. The following pages list all available serial commands for the MX44AB-V2 Matrix. Details of RS-232 pin assignment can be found on page 05. Commonly used Serial commands:... -
Page 13: Infrared Control
0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0689 contact support@blustream.co.uk / support@blustream.com.au... - Page 14 MX44AB-V2 USER MANUAL 4x4 Matrix IR Database 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016...
-
Page 15: Web Browser Interface
The Blustream MX44AB-V2 Matrix unit can be both controlled and configured using the in-built web-server. The MX44AB-V2 Matrix must be connected to an active network router/switch and it is advised that the Matrix is given a static IP address. You can configure the network settings of the Matrix using either the Web Browser Interface (Blustream Matrix products are shipped with the network set to DHCP) or using the Blustream PC Configuration Software (downloadable from the Blustream Drivers &... - Page 16 MX44AB-V2 USER MANUAL User / Installer notes: www.blustream.co.uk...
- Page 17 www.blustream.com.au...
