2.2.2 AT83C24 registers
programming
AT89EVK-01 User Guide

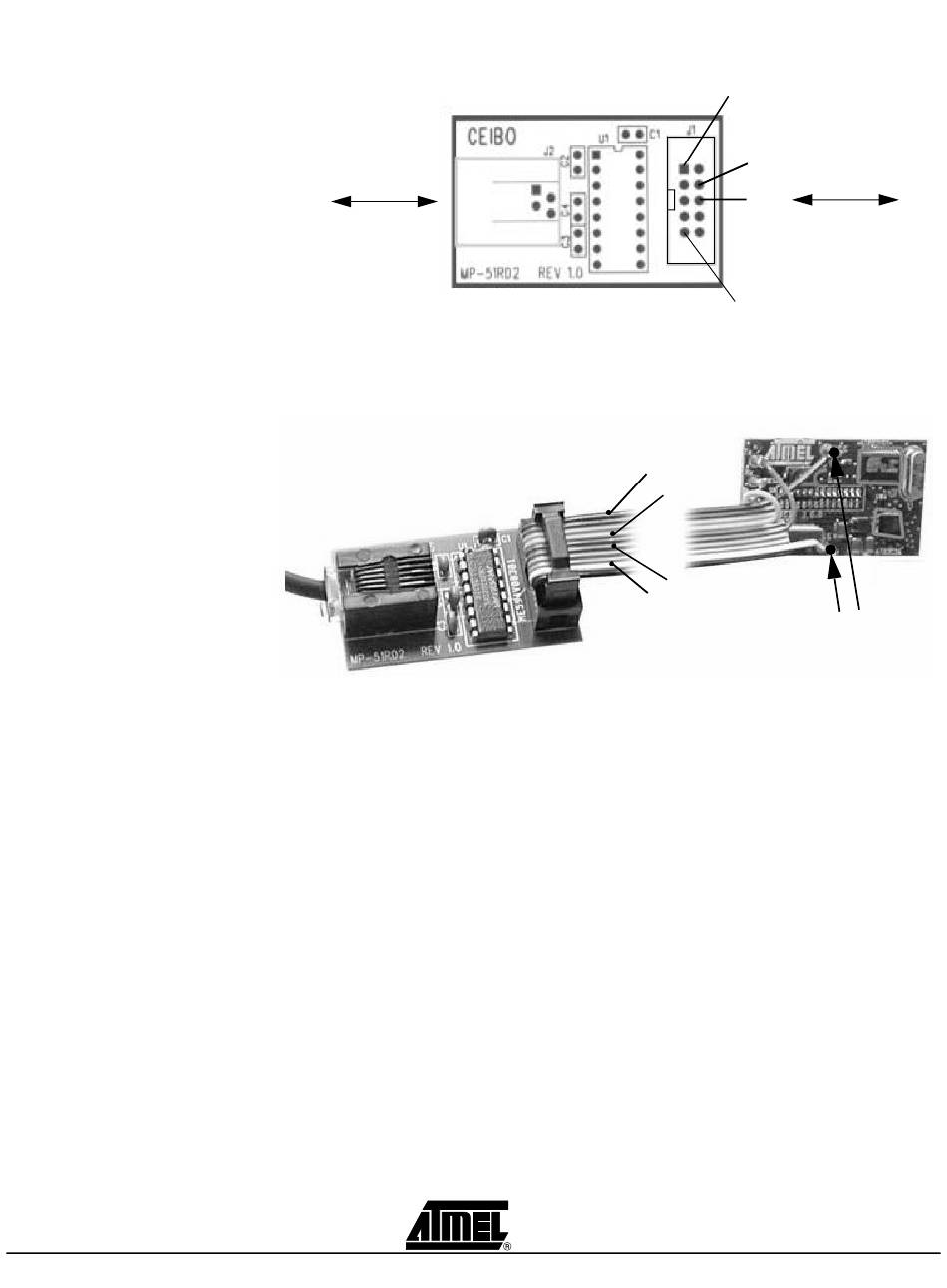

Figure 2-6. CEIBO "MP-51RD2 Programmer" Board and J1 connector
RS-232
Figure 2-7. CEIBO "MP-51RD2 Programmer" Board and AT89EVK-01 connections
The Flash memory of the T89C5121 is loaded with FLIP/BatchISP if a new configuration
is needed for the AT83C24.
1. Unzip the AT89EVK01_Vx.zip (x : version)
This zip file contains 3 files :
– AT83C24_batchisp.hex : T89C5121 firmware file
– at89evk01.bat : DOS command file
– AT83C24_batchisp_prog.txt : script file for batchisp software
2. Copy all files at C:\Program Files\ATMEL\FLIP x.x.x\bin
3. Connect the external waveform generator - Frequency at 14.74MHz or solder
SW4
4. Connect the RS232C cable to PC serial port
5. Connect power supply to the AT89EVK-01 board
6. Switch on the power supply
7. Execute at89evk01.bat
Hardware Description
Vcc (1)
J1
Tx (4)
AT89EVK01board
Rx(6)
Vss(9)
Vcc
Tx
1
Rx
4
Vss
6
9
5V Power Supply
