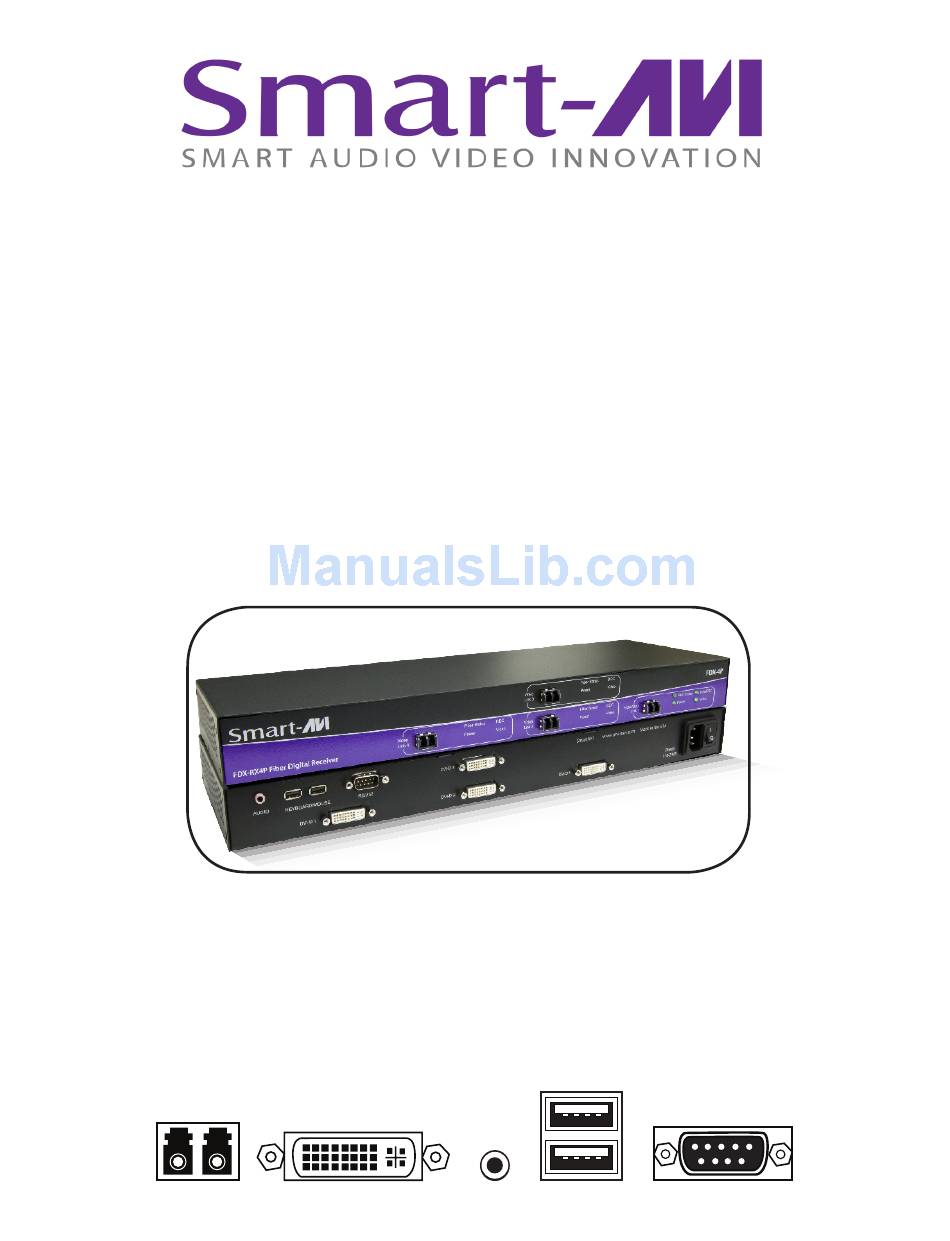

- Page 1 Installation Manual FDX-M4U Quad DVI-D Extender, with Audio and USB Keyboard and Mouse www.smartavi.com...
- Page 2 DVI-D outputs, with audio, USB keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDX-M4U can go the distance with multi-mode fiber optic cabling with a reach of up to 1,400 feet.
- Page 3 FILM/MUSIC RECORDING STUDIOS When recording with sensitive cameras and microphones, computers are often too noisy to be used in the immediate vicinity. The FDX-M4U isolates the computers into another room, maintaining the silence that recording artists require.
- Page 4 • much more secure because they cannot be easily tapped. For this reason, military and law enforcement agencies use fiber optic cables for the transmission of sensitive data. • relatively inexpensive and small enough to be routed through small spaces. FDX-M4U Receiver Rear www.smartavi.com...
-
Page 5: What's In The Box
What’s in the Box? PART NO. DESCRIPTION FDX-TXM4P Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Transmitter FDX-RX4MU Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Receiver Power Cable CCPWR06USA Technical Specifications... -
Page 6: Product - Installation Diagram
2. Connect the DVI extension cables, USB cable, and audio cable (not included) to the computer and to the ports on the FDX- TXM4P. 3. Connect the displays to the DVI connectors on the FDX-M4U. 4. Connect USB mouse and keyboard ONLY to the USB connectors on the FDX-M4U. -
Page 7: Fiber-Optic Cable Specifications
4 DVI-D Displays eakers USB Mouse USB Keyboard Fiber-Optic Cable Specifications OPTICAL Fiber Type Single, multi mode Connector Type LC Type Wavelength 1310 nm/1550 nm (Dual wavelength) Data Rate 5 Gbps (2.5 Gbps per single wavelength) Transmission Power -5 dB Min. Receiver Sensitivity -21 dB Max Distance... - Page 8 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
