- Page 1 FDX-3000-pro Single-Mode DVI-D, Stereo Audio & USB K/m Fiber Extender USER MANUAL FDX-3000-PRO Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
- Page 2 OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?________________________________________________________________________ OVERVIEW__________________________________________________________________________________ INSTALLATION_______________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ Single-Mode DVI-D, Stereo Audio & USB K/m Fiber Extender...
- Page 3 Technical Specifications VIDEO Format Single-Link DVI-D Input interface (1) DVI-D Female (Single-Link) Output interface (1) DVI-D Female (Single-Link) Max. Pixel Clock 165 MHz Max. Data Rate 6.75 Gbps Max. Resolution Up to 1080p (1920x1080 @ 60Hz) Input Cable Length Up to 20 ft Output Cable Length Up to 20 ft AUDIO...

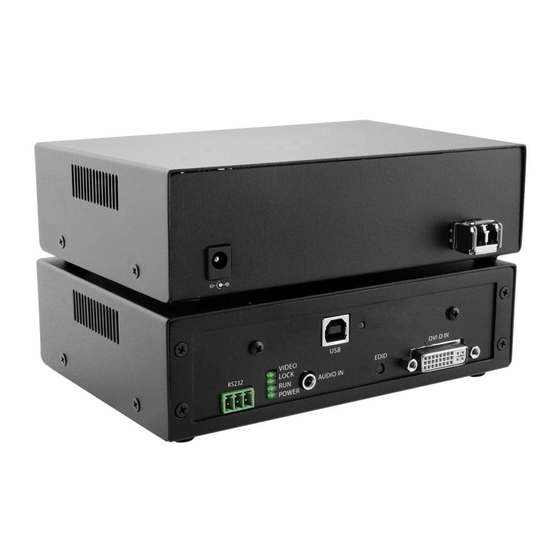

- Page 4 Single-Mode DVI-D, Stereo Audio, RS-232, and USB K/M Fiber Transmitter FDX-3000-PRO-RX-S Single-Mode DVI-D, Stereo Audio, RS-232, and USB K/M Fiber Receiver PS5VD2A PS5VD2A Power Supply User Manual FDX-3000-PRO-TX REAR FDX-3000-PRO-TX FRONT FDX-3000-PRO-RX REAR FDX-3000-PRO-RX FRONT Single-Mode DVI-D, Stereo Audio & USB K/m Fiber Extender...
- Page 5 INSTALLATION 1. Turn off all devices. 2. Connect a multimode fiber optic cable between the TX and RX (maximum cable length is 6,2 m). 3. Connect the DVI-D cable, RS-232 cable (optional), and USB cable from the computer to their ap- propriate ports on the TX .
- Page 6 Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •...
- Page 7 Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
