- Page 1 Installation Manual FDX- 5 00 DVI-D and Stereo Audio Extender up to 1,500 feet over Fiber Optic Cable www.smartavi.com...
- Page 2 The FDX-500 is a perfect solution for extending the video and audio output of a computer in a remote location. It extends DVI-D and Stereo Audio to a remote location up to 1,500 feet away. The FDX-500 is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference.
- Page 3 Applications • Corporate or Educational Presentations • Financial (Remote Servers/User Control) • Call Centers • Industrial (Long-Range Workstation Isolation) • Information Terminals/Kiosks • Airport Installations (Air Traffic Control/Passenger Information) • KVM Extension where Exceptional Quality of Signal is Crucial • Medical (Remote Operation Away from Sensitive/Magnetic Equipment) • Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

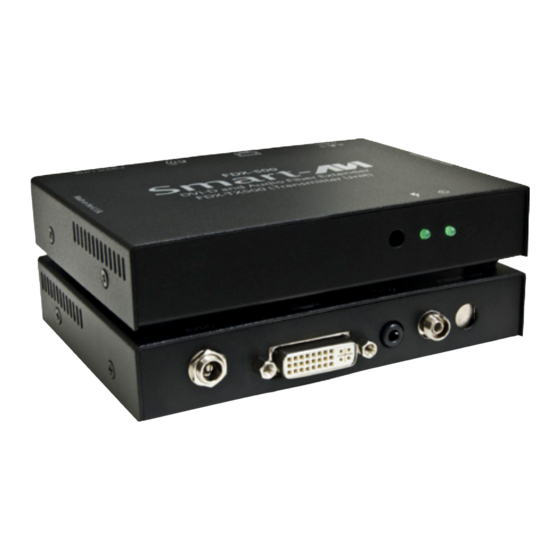

- Page 4 FDX-500TX Front FDX-500TX Rear FDX-500RX Front FDX-500RX Rear www.smartavi.com...
-
Page 5: Technical Specifications
What’s in the Box? PART NO. DESCRIPTION FDX-TX500 FDX-500 Transmitter Unit - DVI-D and Stereo Audio Extender over Fiber Optic Cable FDX-RX500 FDX-500 Receiver Unit - DVI-D and Stereo Audio Extender over Fiber Optic Cable Power Supply PS5VDC4A Technical Specifications... - Page 6 2. Connect the DVI extension cable and audio cable (not included) to the computer and to the ports on the FDX-500-TX. 3. Connect the display to the DVI connector on the FDX-500-RX. 4. Connect speakers to the audio connector on the FDX-500-RX.
- Page 7 DVI-D MONITOR FDX-500RX STEREO SPEAKERS Fiber-Optic Cable Specifications OPTICAL Fiber Type Single, multi mode Connector Type FC Type Wavelength 1310 nm/1550 nm (Dual wavelength) Data Rate 5 Gbps (2.5 Gbps per single wavelength) Transmission Power -5 dB Min. Receiver Sensitivity -21 dB Max Distance 500 m Max.
- Page 8 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
