TECHNICAL SPECIFICATIONS
VIDEO
Input Interface
VGA-Female (Single-Link)
Output Interface
DVI-I, VGA or DVI-D
Max Resolution
1920x1200 @ 60Hz
DDC
Internal Table;
Can be reprogrammed
AUDIO
AUDIO
Signal Type
Stereo Audio
Bandwidth
15Mhz, 0dB
Impedance
10K
OTHER
RS-232
Data up to 115200bps
USB
USB Keyboard and Mouse ONLY
Fiber Extender
Fiber
• 225m @ Multimode 62,5µ
• 450m @ Multimode 50µ
• Fiber-Plug type LC
Dimensions
4.5"x5.5"x1.70"
Weight
8 lbs.
Power
External 100-240 VAC/
5VDC3A @ 15W
WHAT'S IN THE BOX?
PART NO.
DESCRIPTION
FVX-TX3000 FVX-3000 Multimode Transmitter
FVX-RX3000 FVX-3000 Multimode Receiver
PS5VD3A
Power Supply (2) 5V 3A
FVX-3000 Receiver Front
FVX-3000 Receiver Rear
Designed and Manufactured in the USA

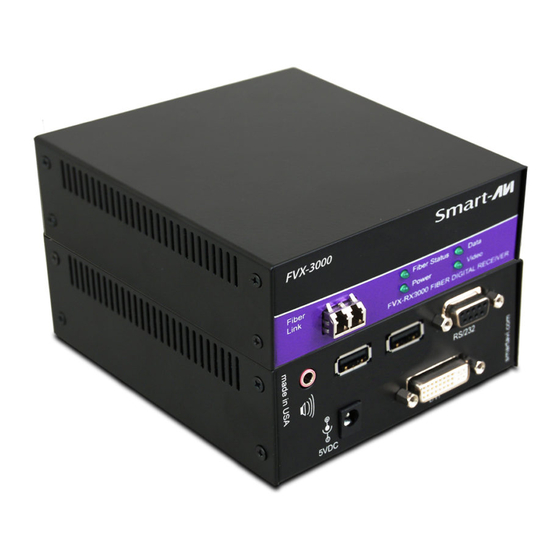

FVX-3000
Multimode Fiber KVM Extender
USB Keyboard and Mouse,
Stereo Audio, VGA and RS-232 Signal up to 1,400 Feet
USER MANUAL
Extend
Advertisement
Related Manuals for SMART-AVI FVX-3000
Summary of Contents for SMART-AVI FVX-3000
-
Page 1: User Manual
5VDC3A @ 15W USB Keyboard and Mouse, Stereo Audio, VGA and RS-232 Signal up to 1,400 Feet USER MANUAL WHAT’S IN THE BOX? PART NO. DESCRIPTION FVX-TX3000 FVX-3000 Multimode Transmitter FVX-RX3000 FVX-3000 Multimode Receiver PS5VD3A Power Supply (2) 5V 3A... -
Page 2: Application Diagram
•Relatively inexpensive and small enough to be routed The factory video settings of the FVX-3000 has a native resolution of 1920x1080 @ 60Hz, which is standard for most HD monitors. FVX-3000 is also fully capable of “learning” and remembering what type of display monitor is con- through small spaces.
