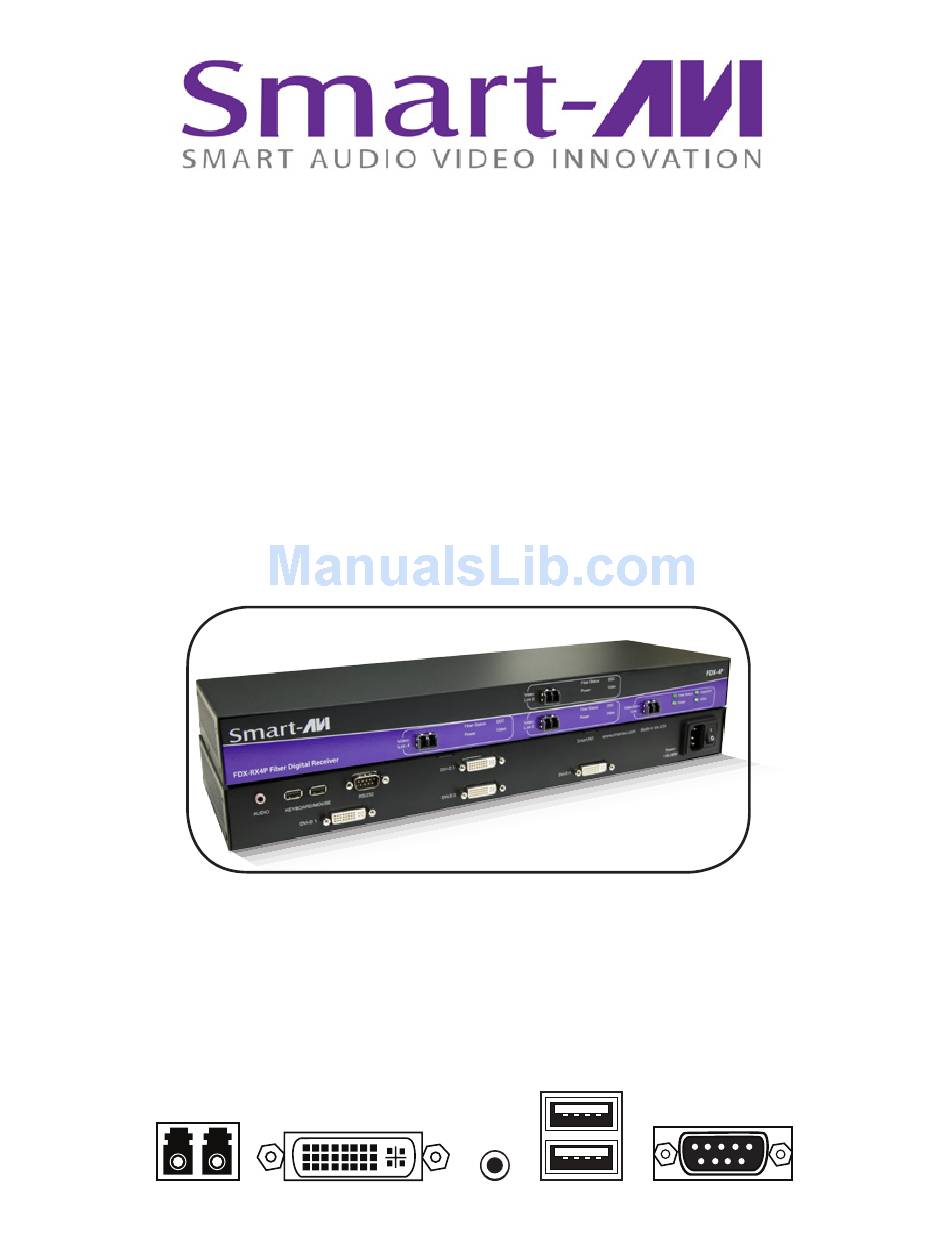

- Page 1 Installation Manual FDX-4P Quad DVI-D Extender, with Audio and USB Keyboard and Mouse www.smartavi.com...
- Page 2 Introduction The FDX-M4P consists of a transmitter and receiver that extend four DVI-D outputs, with audio, USB keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDX-M4P can go the distance with multi-mode fiber optic cabling with a reach of up to 1,400 feet.
- Page 3 Applications MEDICAL FIELD In the medical field where sensitive electronic devices are used, isolating workstation computers can be a matter of safety. The FDX-M4P allows the workstation computers to be housed in a central location, away from sensitive devices. INDUSTRIAL WORK AREAS In industrial work areas that may be too harsh for a workstation computer, the FDX-M4P can consolidate the computers into a safe location.
- Page 4 Why Fiber Optic? SmartAVI has created a full line of fiber optic extender products, understanding that this technology is superior to traditional cabling. Fiber optic cables are: • capable of transmitting over very long distances with no signal loss. • immune to electromagnetic interference. In situations where there is considerable interference, fiber optic cabling is the only solution.
-
Page 5: What's In The Box
What’s in the Box? PART NO. DESCRIPTION FDX-TXM4P Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Transmitter FDX-RXM4P Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Receiver Power Cable CCPWR06USA Technical Specifications... -
Page 6: Product - Installation Diagram
Product - Installation Diagram Computer Up to 1,400 feet FDX-M4P FDX-M4P (400 m) over 4 Stereo Spe Transmitter Receiver fiber optic cables Installation 1. Turn off the computer, displays, and speakers. 2. Connect the DVI extension cables, USB cable, and audio cable (not included) to the computer and to the ports on the FDX- TXM4P. -
Page 7: Fiber-Optic Cable Specifications
4 DVI-D Displays eakers USB Mouse USB Keyboard Fiber-Optic Cable Specifications OPTICAL Fiber Type Single, multi mode Connector Type LC Type Wavelength 1310 nm/1550 nm (Dual wavelength) Data Rate 5 Gbps (2.5 Gbps per single wavelength) Transmission Power -5 dB Min. Receiver Sensitivity -21 dB Max Distance... - Page 8 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
