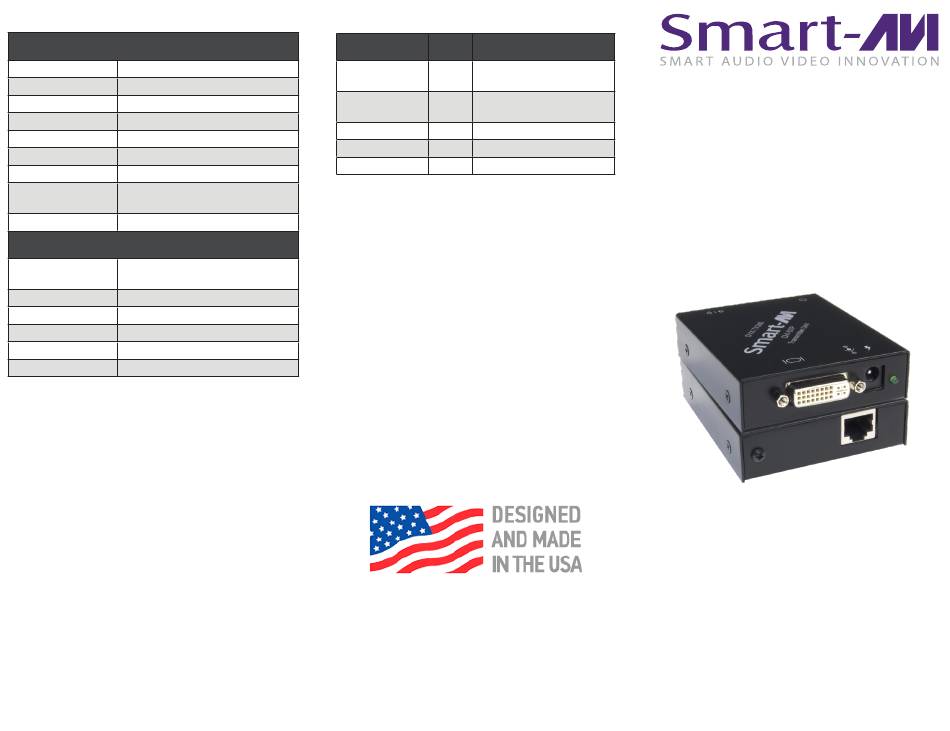

SMART-AVI DVX-RX200 Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input/Output Cable
Up to 20 ft.
Length
Extension over Cat6 Up to 225 ft.
OTHER
External 100-240 VAC/5VDC2A
Power
@10W
Dimensions 2.75" W x 0.8" H x 3.4" D
Weight 0.2 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVX-200 Receiver. DVI
DVX-RX200 1
Receiver over CAT6 STP
DVX-200 Transmitter. DVI
DVX-TX200 1
Transmitter over CAT6 STP
DVI-D Cable 1 6ft MM DVI-D
Power Supply 2 PS5VDC2A
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

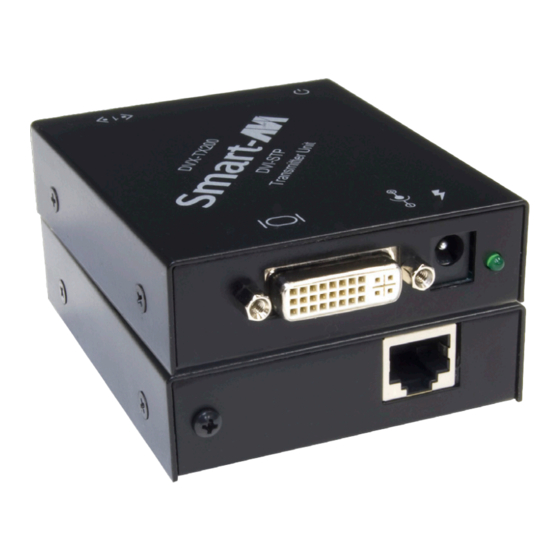

DVX-200
DVI-D Extender
EXTENDS DVI-D
UP TO 225 FEET
OVER A CAT6 CABLE
Quick Start Guide
