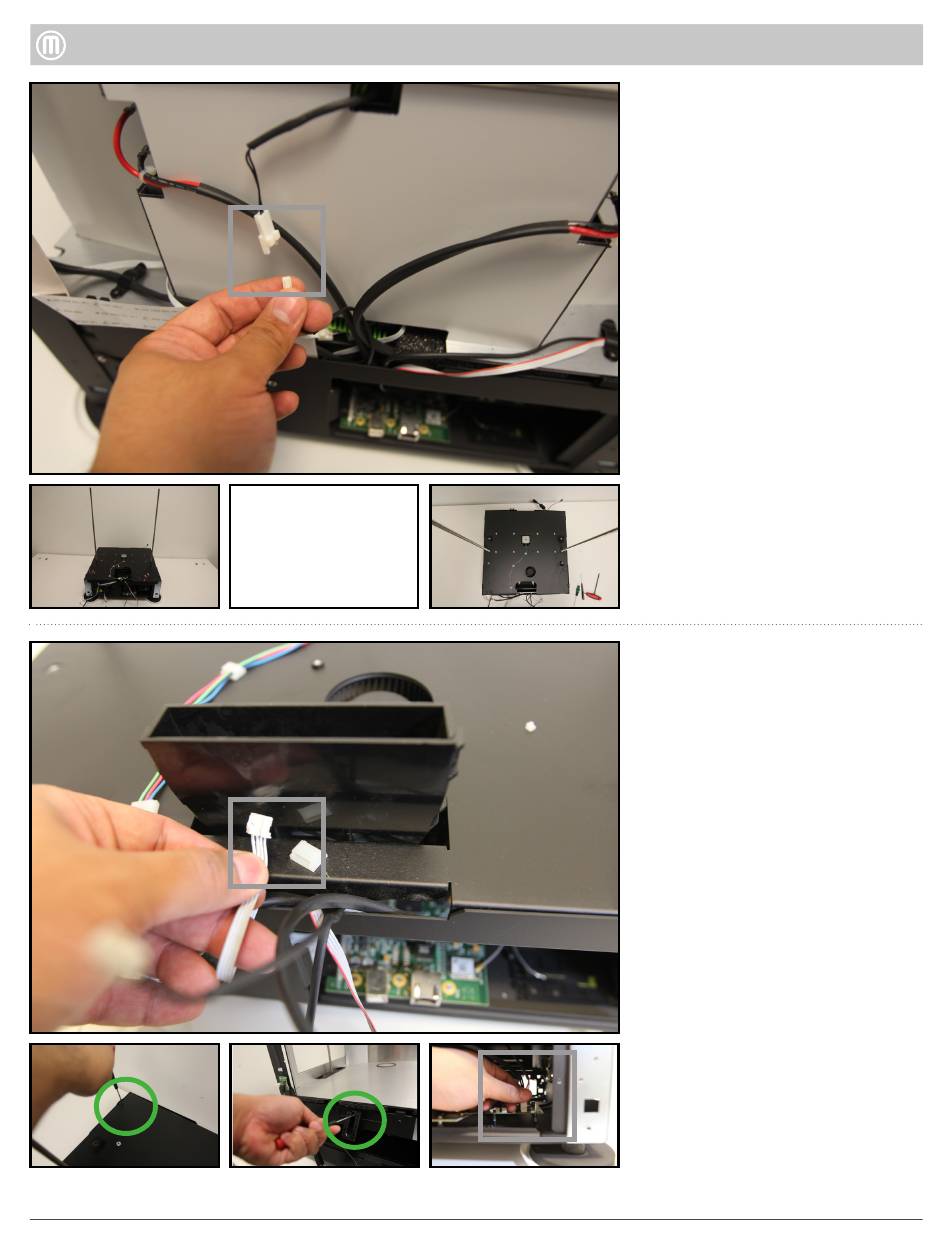

Step 9 - Remove Z-Stage
Continued
•
Unplug the Heating Coil
Thermistor attached to the
Heating Coil Assembly.
Lift up the Inner and Bottom
Panels over the threaded rods.
Step 9 - Removing the Drawer
Bay Cover
•
Unplug the Z-Motor from the
Motor Wire Harness. Unclip the
Z-Motor Wire Harness from the
plastic wire clip
•
Remove four (4) button heads of
the Drawer Bay Assembly Top
Cover by using the 2.5mm hex
•
Remove two (4) button head
hex screws from the two (2) UI
Adapter Mount located at the
front of the Drawer Bay Assembly
by using 2.5mm hex screwdriver.
•
Unplug the Heater Fan from the
Gowanus PCB located in the
rear Electronics Bay, lift off the
Top Cover of the Drawer Bay
Assembly.
