Step 1 - Remove The Outer Panel Assembly; Step 2 - Remove Front Door - MakerBot Replicator Z18 Teardown Manual

MakerBot Replicator Z18 MakerBot Replicator
MakerBot MakerBot

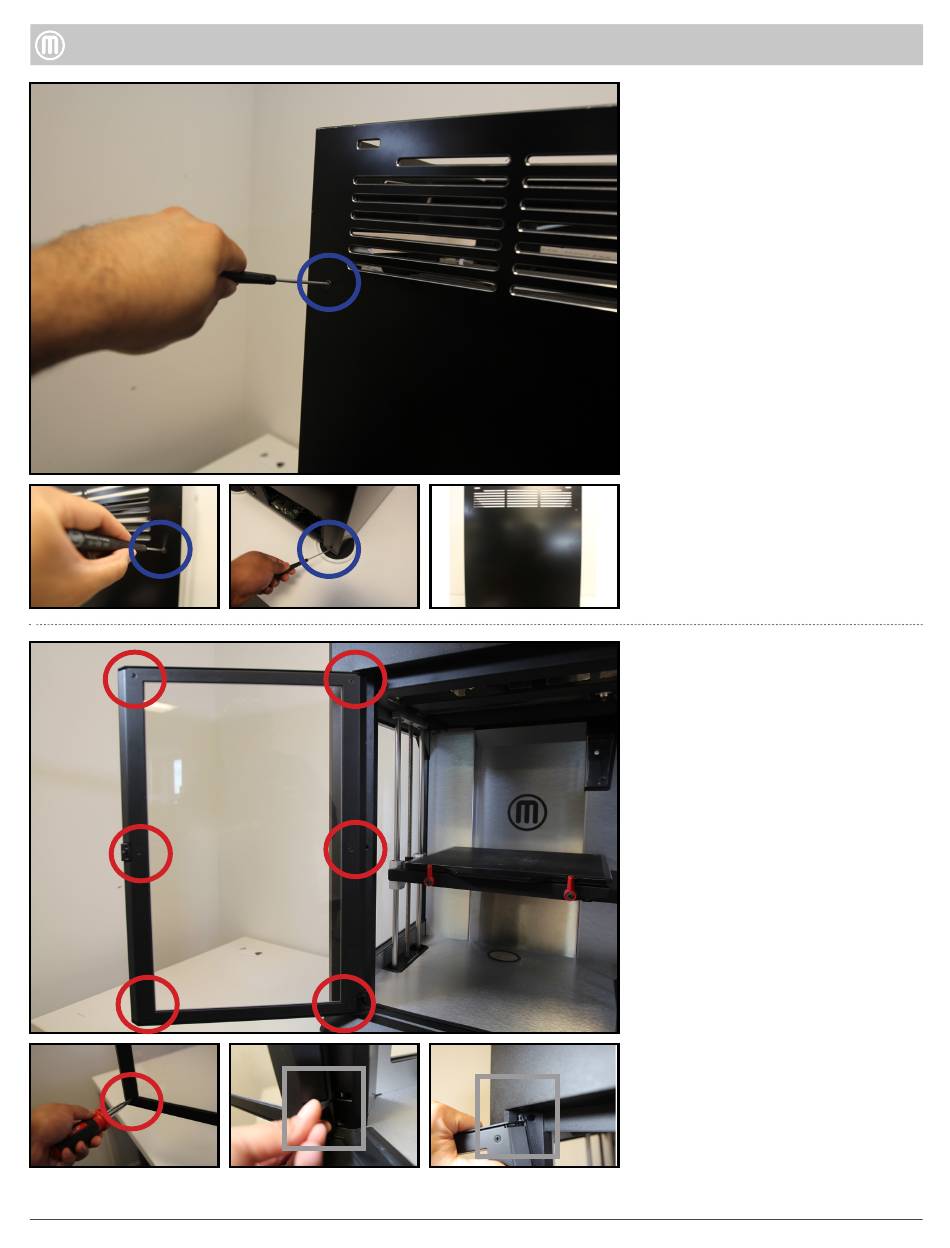

Step 1 - Remove the Outer
Panel Assembly
•
Remove the following screws:
from the Outer Panel Assembly
•
four (4) flat head screws using a
2.5mm hex driver
•
Once the screws are removed
gently pull the Outer Panel
Assembly back and away from
the body of the Z18

Step 2 - Remove Front Door

•
Remove six (6) screws inside door
using a Phillips screwdriver
•
Remove Steel Door Frame and
Acrylic Window by pushing it out
of the frame.
•
Grab spine of Door Frame and
bend towards and pull to detach
from slot.Pin and remove Door
Assembly
NOTE: Only follow these steps if
your Dowel Hinge Pin is glued to
the Front Door frame. If its not
glued just remove Dowel Hinge
2 2
