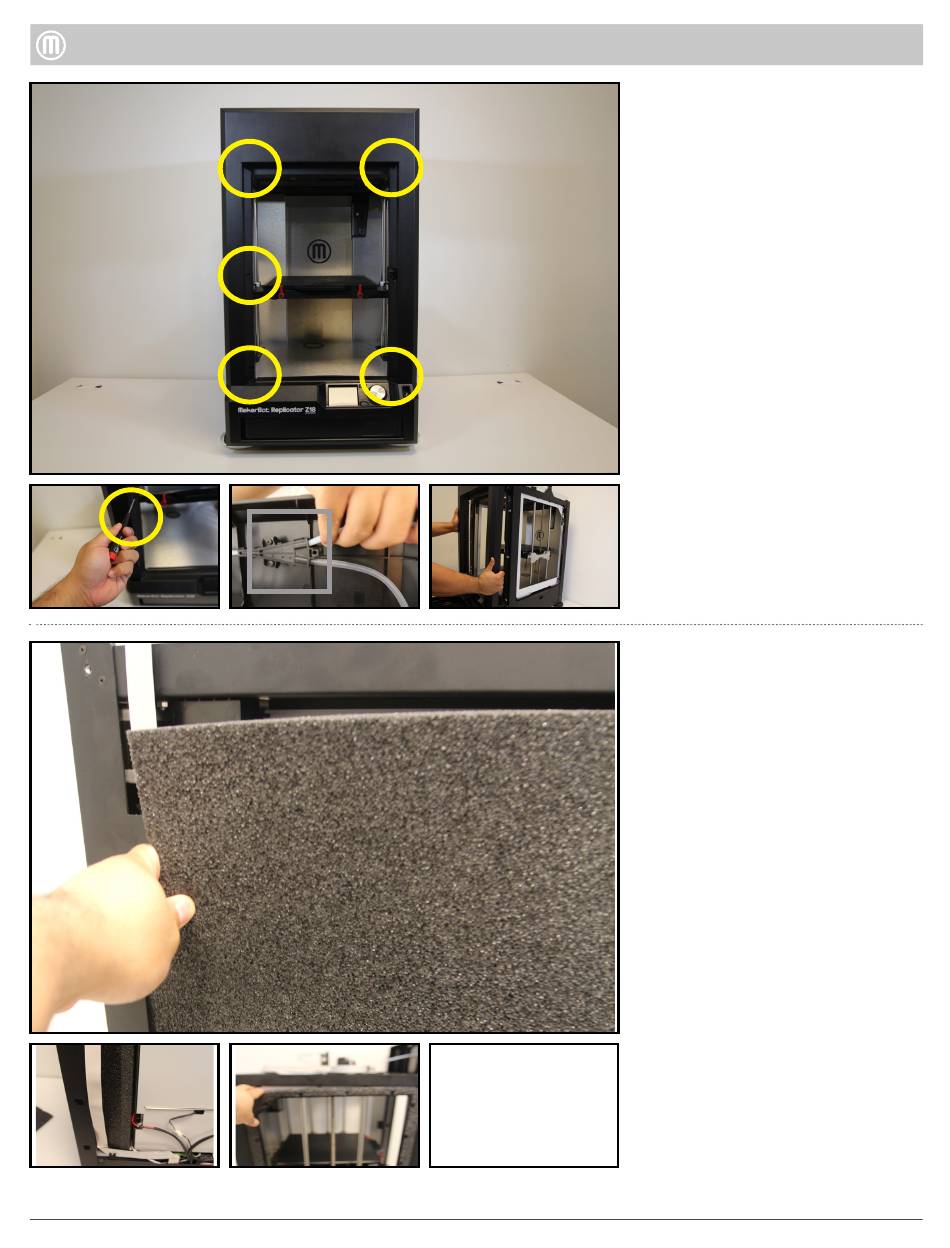

Step 3 - Remove Front Panel

•
Remove five (5) hex socket cap
screw using a 2.5mm hex driver
•
Open Filament Drawer, ensure
guide tube is disconnected from
the Y-Split
•
Simultaneously, pull and wiggle to
remove Front Panel (be mindful
of the floor trip – it may slide
off)

Step 4 - Remove the Insulation

•
At the back of the printer, remove
the larger Insulation Foam before
you can remove the smaller Foam
•
Pull to remove the Insulation
Foams from the each sides of the
Z18
3 3
