- Page 1 App Cam Spotlight Quick Start Guide...
-
Page 2: What's In The Box
What’s in the Box App Cam Solo+ Power Adaptor Camera Bracket Camera Reset Needle Screw Kit Mounting Template... -
Page 3: General Introduction

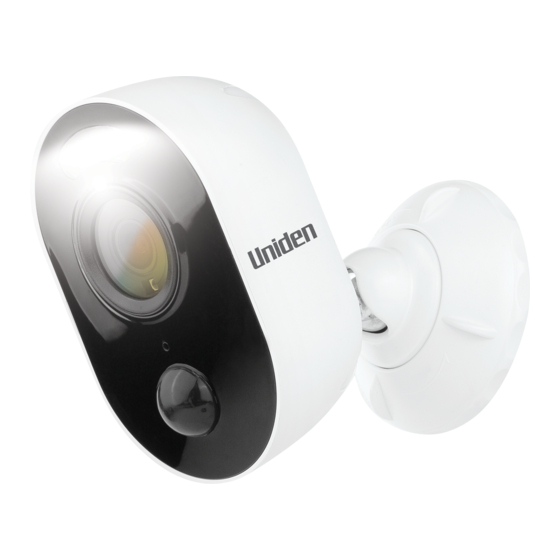

General Introduction Speaker Power cable Spotlight Status LED : Wi-Fi connection failed Blinking On: Camera is starting up/Wi-Fi connection succeeded Lens Daylight Sensor Built-in Mic PIR Motion Sensor Micro SD Card Slot Reset Button Press for more than five seconds to restore default settings... -
Page 4: Install Uniden Solo App
Install Uniden Solo App There are two ways to get the Uniden Solo App: • Search “Uniden Solo” in App Store (for iOS), download and install the app. • Search “Uniden Solo” in Google Play (for Android), download and install the app. - Page 5 Note: When the setup for the camera is completed, your family can access the camera simply by clicking “Access Cameras” without reconfiguring it. App Cam Spotlight+ Camera can only connect to 2.4GHz Wi-Fi. 2. Scan the QR code on the 3.
- Page 6 4. Click the button “I heard the voice” to 5. Enter the Wi-Fi password of the selected enter the next page. Wi-Fi network and tap “Next” to continue. If you did not hear the voice prompt, please press “I did’t hear the voice” for help.
- Page 7 About 20cm Scan succeeds. Camera is connecting to the router. Please wait. 6. A QR code will be generated on the phone. Please place the QR code on your phone towards App Cam Solo+ camera’ lens at a distance of about 20cm to let the camera scan the QR code. Please make sure that you’ve ripped the protection film of the camera’s lens.
- Page 8 Connection to the router failed! 7. If you hear the above voice prompt, please ” press “I heard ‘Wi-Fi connection failed’ for help. Connection to the router succeeded. 8. If you hear the above voice prompt, please press “I heard ‘Connection to the router succeeded.’...
- Page 9 9. Create a password (at least 6 characters) and name the camera. Then start live view or go to “De- vice Settings” for more configurations. Note: “Name your camera” field refers to the display name of the camera rather than the login username.
-
Page 10: Device Menu
Device Menu Menu Add New Device Device Settings Access Live View... - Page 11 Attention for Camera Installation Select an Installation Height Please install the camera 2-3 meters above ground. This height maximizes the detec- tion range of the motion sensor. For effective motion detection, please install the camera angularly and the angle between the PIR sensor and the detected object must be larger than 10°.
- Page 12 The PIR detection range can be adjusted to meet specific needs. You can refer to the following table to set it up in Uniden Solo App Device Settings. Higher sensitivity offers longer detecting distance, but it would lead to more false alarms. You are advised to set up the sensitivity level to “Low” or “Mid” when you install the camera outdoors.
- Page 13 Important Notes for Reducing False Alarms For reducing false alarms, please note that: • Do not install the camera facing any objects with bright lights, including sunshine, bright lamplights, etc. • Do not place the camera too close to a place where there are frequently moving vehicles.
- Page 14 How to Install Wall Mount Step 1 Step 2 Rotate and open the bracket. Drill holes in terms of the provided mounting hole template and insert the plastic anchors into the hole. Screw the bottom of the bracket onto the wall and then attach the other part of the bracket onto the bracket bottom.
- Page 15 Uniden Solo App. image clockwise. NOTE: In case you will need to adjust the camera angle later, please loosen the bracket by turning the upper...
-
Page 16: Troubleshooting
Troubleshooting Camera is not powering on If your camera is not powering on, please try the following: • Plug the camera into another outlet. • Use another 5V power adapter to power up the camera. Fail to scan the QR code on the phone If the camera failed to scan the QR code on your phone , please try the following: •... -
Page 17: Specifications
Specifications Model App Cam Spotlight+ Image Sensor 1/2.8” CMOS Image Sensor Video Resolution 1920 x 1080 (2.0Megapixel) 15 fps Video Compression H.264 Viewing Angle Diagonal: 120° Video & Audio PIR Detecting Distance up to 7 meters PIR Detecting Angle Horizontal: 100° Night Vision Up to 10 Meters Audio... -
Page 18: Warranty
Accessories 90 Days If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be: A. Damaged or not maintained in a reasonable manner or as recommended in the relevant Owner’s Manual;... - Page 19 Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 20 THANK YOU FOR BUYING A UNIDEN PRODUCT © 2020 Uniden Australia Pty Limited V1.0 Printed in PRC...
