Step 1: Check what's in the box
VP-451 4K HDMI™/USB-C Scaler
1 Power adapter and cord

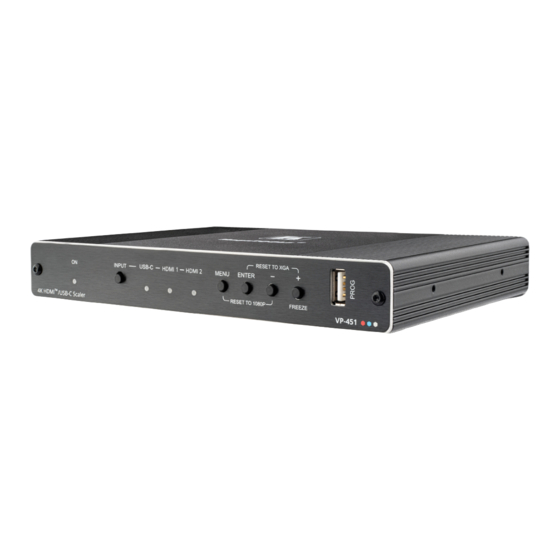

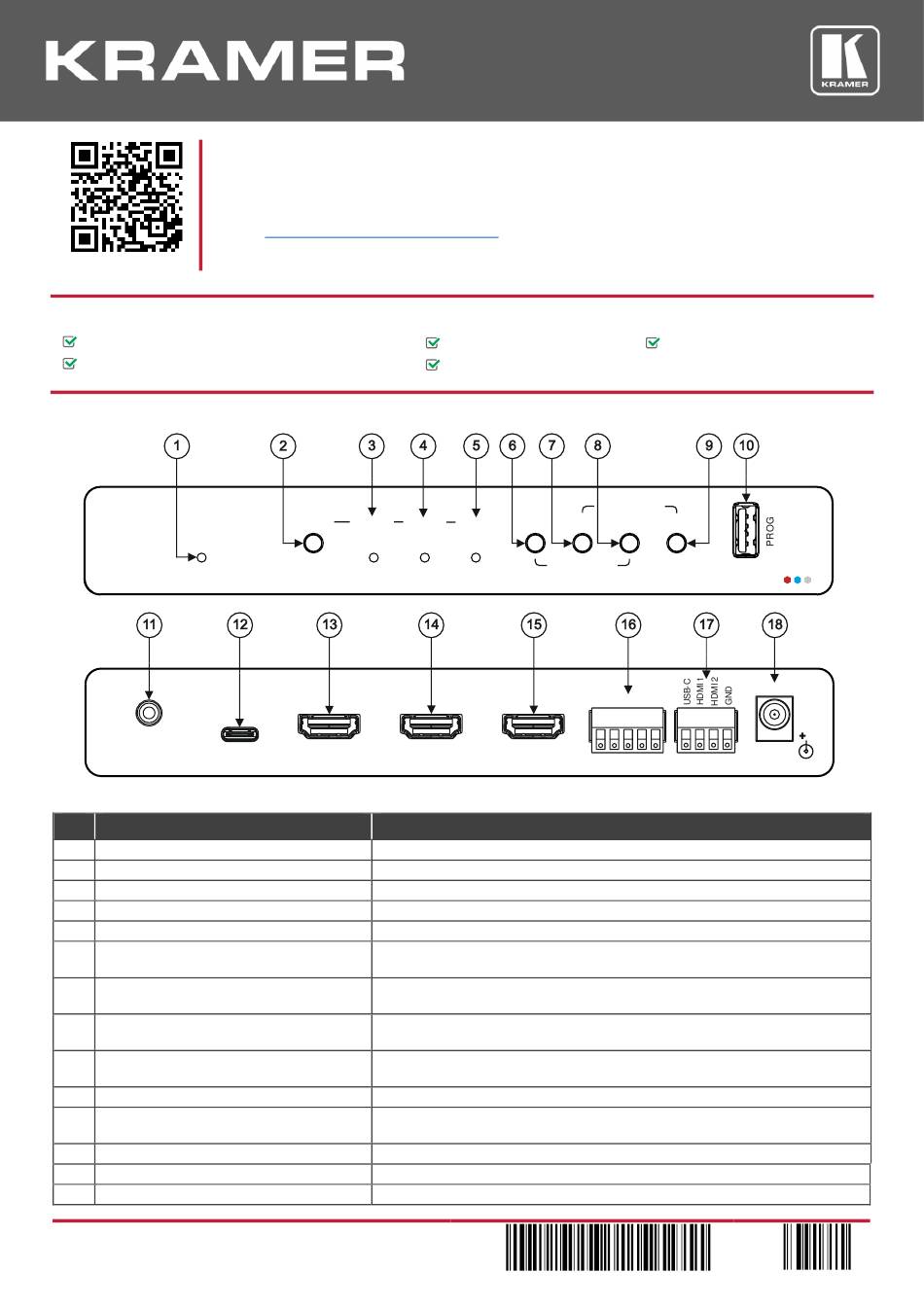

Step 2: Get to know your VP-451
ON
4K HDMI /USB-C Scaler
TM
AUDIO IN
USB-C IN
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
#
Feature
1
ON LED
2
INPUT Button
3
USB-C LED
4
HDMI 1 LED
5
HDMI 2 LED
6
MENU Button
7
ENTER Button
– Button
8
9
+/FREEZE Button
10
PROG USB Connector
11
AUDIO IN PC 3.5mm Mini Jack
12
USB-C IN USB Type C Port
13
HDMI IN 1 Connector
14
HDMI IN 2 Connector
VP-451 Quick Start
VP-451 Quick Start Guide
This guide helps you install and use your VP-451 for the first time.
Go to
www.kramerav.com/downloads/VP-451
upgrades are available.
USB-C
INPUT
HDMI IN 1
Function
Lights green when the unit is powered.
Press to cycle the input between USB-C, HDMI 1, and HDMI 2.
Lights green when the USB-C input is selected.
Lights green when the HDMI IN 1 is selected.
Lights green when the HDMI IN 2 is selected.
Press to enter/escape the on-screen display (OSD) menu. Press together with
the – button to reset to 1080p (RESET TO 1080P).
In OSD, press to choose the highlighted menu item. Press together with the
+ button to reset to XGA (RESET TO XGA).
In OSD, press to move backward through the list or to decrement the
parameter value.
In OSD, press to move forward through the list or to increment the parameter
value. When not in OSD, press to freeze/unfreeze the display.
Connect to a USB memory stick for upgrading the firmware.
Connect to an unbalanced stereo audio PC source. Can also be selected as
the audio input (instead of the HDMI and USB-C embedded audio inputs).
Connect to a USB type-C audio-video source.
Connect to an HDMI source.
Connect to an HDMI source.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
HDMI 1
HDMI 2
MENU
ENTER
RESET TO 1080P
HDMI IN 2
HDMI OUT
P/N:
2 9 0 0 - 3 0 1 2 3 1 QS
1 Quick start guide
RESET TO XGA
+
-
FREEZE
VP-451
24V DC
+ L - G
+ R -
AUDIO OUT
REMOTE
Rev: 1
