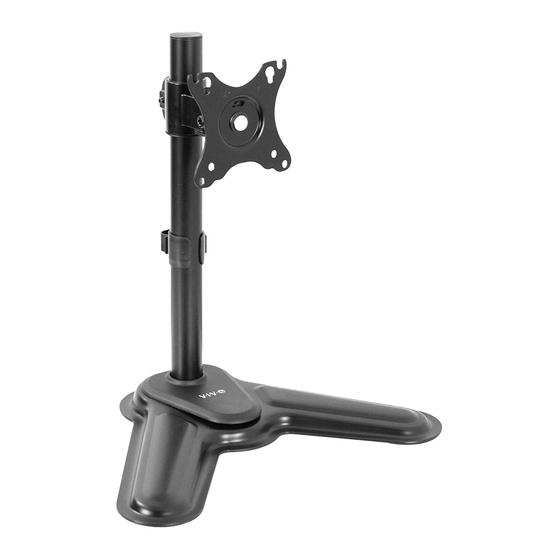

Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V101Z
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101z
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V101Z
Summary of Contents for Vivo STAND-V101Z
- Page 1 Single Monitor Desk Stand Instruction Manual SKU: STAND-V101Z Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101z GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Press the base cover (B) onto the base (A). Assemble the pole (D) to the base using M6x14 bolts (E) and tighten with the 4mm Allen wrench (F). - Page 4 STEP 2 Slide the VESA bracket (C) onto the pole to the desired height, and tighten the bracket to the pole using the 6mm Allen wrench (G). STEP 3 Attach two bolts (M-A or M-B) and washers (M-C) to the top mounting holes of the monitor, making sure to leave 3mm of thread exposed.
- Page 5 STEP 4 Align bolts (M-A, M-B) in VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all bolts using a Phillips screwdriver.
- Page 6 STEP 5 Tighten or loosen the tilt joint using the 6mm Allen wrench (G). Store tools in the cable clip. Adjust as Desired Adjust monitor position and rotation as desired. Manage cables using the clip on the pole.
