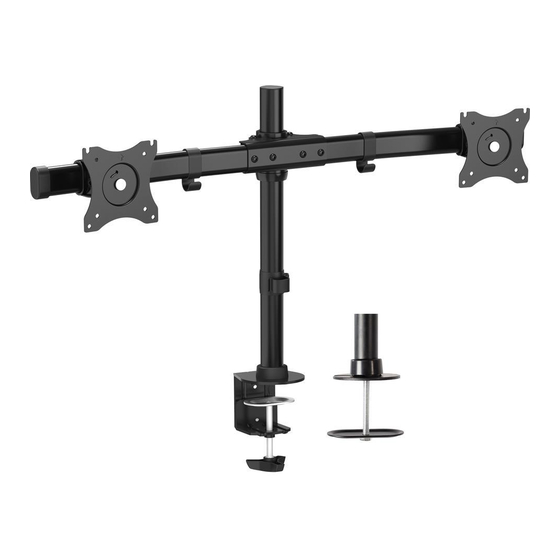

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V002E
Summary of Contents for Vivo STAND-V002E
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Insert pole cap (G) into pole (A). STEP 2 OPTION A: Clamp Installation Slide cable management clip (H) and plastic cover (I) onto bottom of pole (A). Stick rubber pads (M) to bottom of clamp (B). - Page 4 STEP 2 (Continued) OPTION B: Grommet Base Installation Remove screw from top of bolt in clamp (B). Stick rubber pads (M) to bottom of grommet base (C). Slide cable management clip (H) and plastic cover (I) onto bottom of pole (A). Thread pole (A) onto grommet base (C).
- Page 5 STEP 4 Remove screws from support bracket (D) using 4mm allen wrench (P). Insert arms (F) into support bracket (D) as shown in diagram and re-insert screws using 4mm allen wrench (P). STEP 5 Slide VESA mounts (E) onto arms (F) and tighten using 4mm allen wrench (P). Slide on arm caps (K) and secure with screws (N).
- Page 6 STEP 7 Insert screws (M-A or M-B) and washers (M-C) into top two holes on monitors. Leave slightly loosened. Slide monitors onto VESA plates and insert screws (M-A or M-B) and washers (M-C) into bottom two holes on monitors. Tighten all screws. 3m m M- C M- A...
- Page 7 STEP 9 Store allen wrenches (O, P, Q) as shown in diagram. Adjust as Desired 30° 30° 360° 360°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
